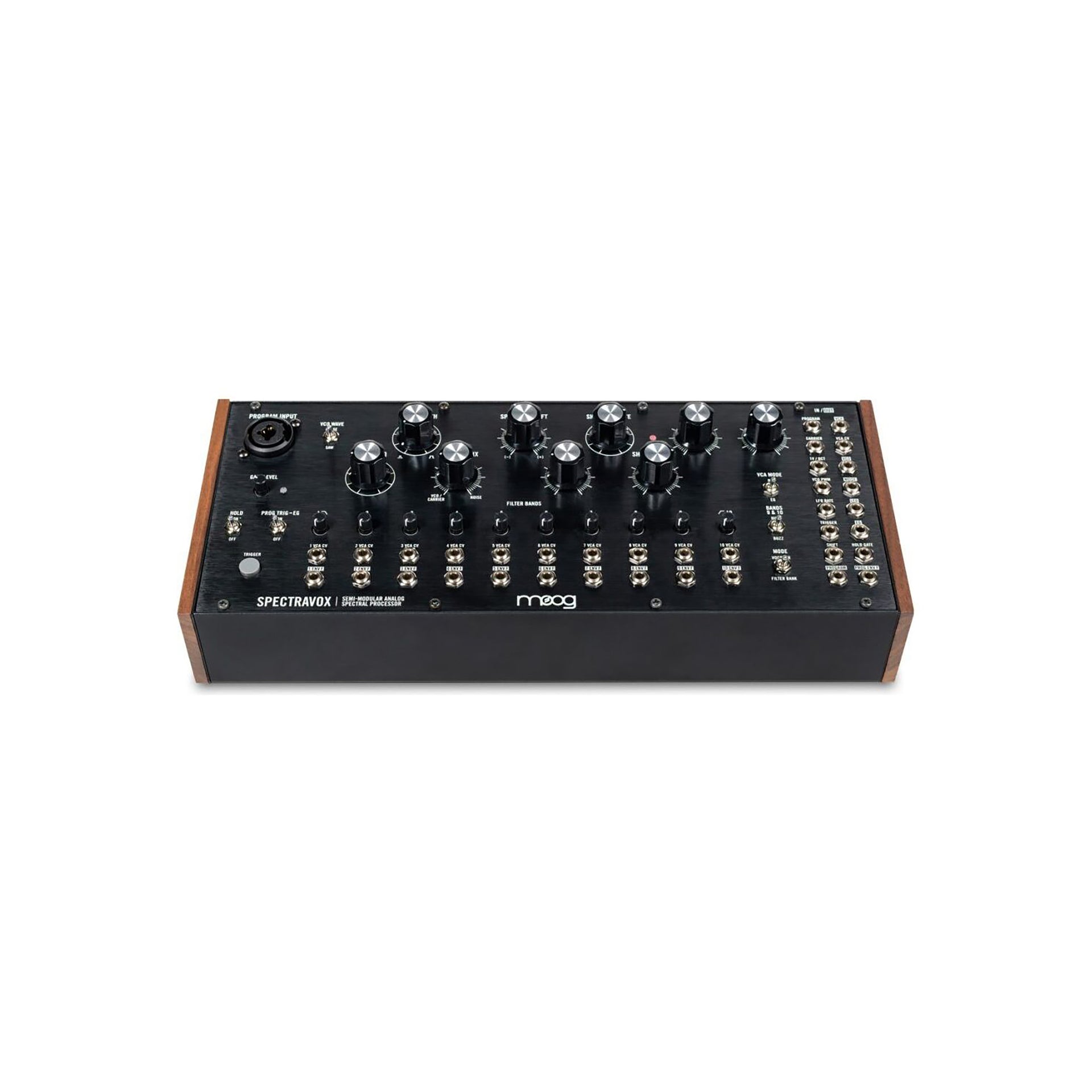

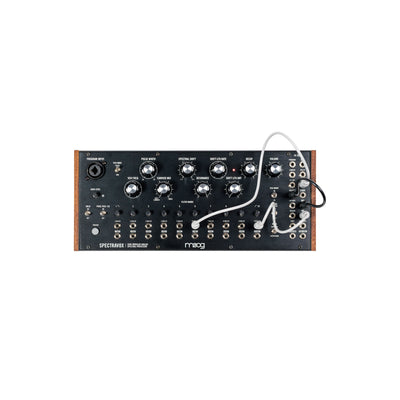

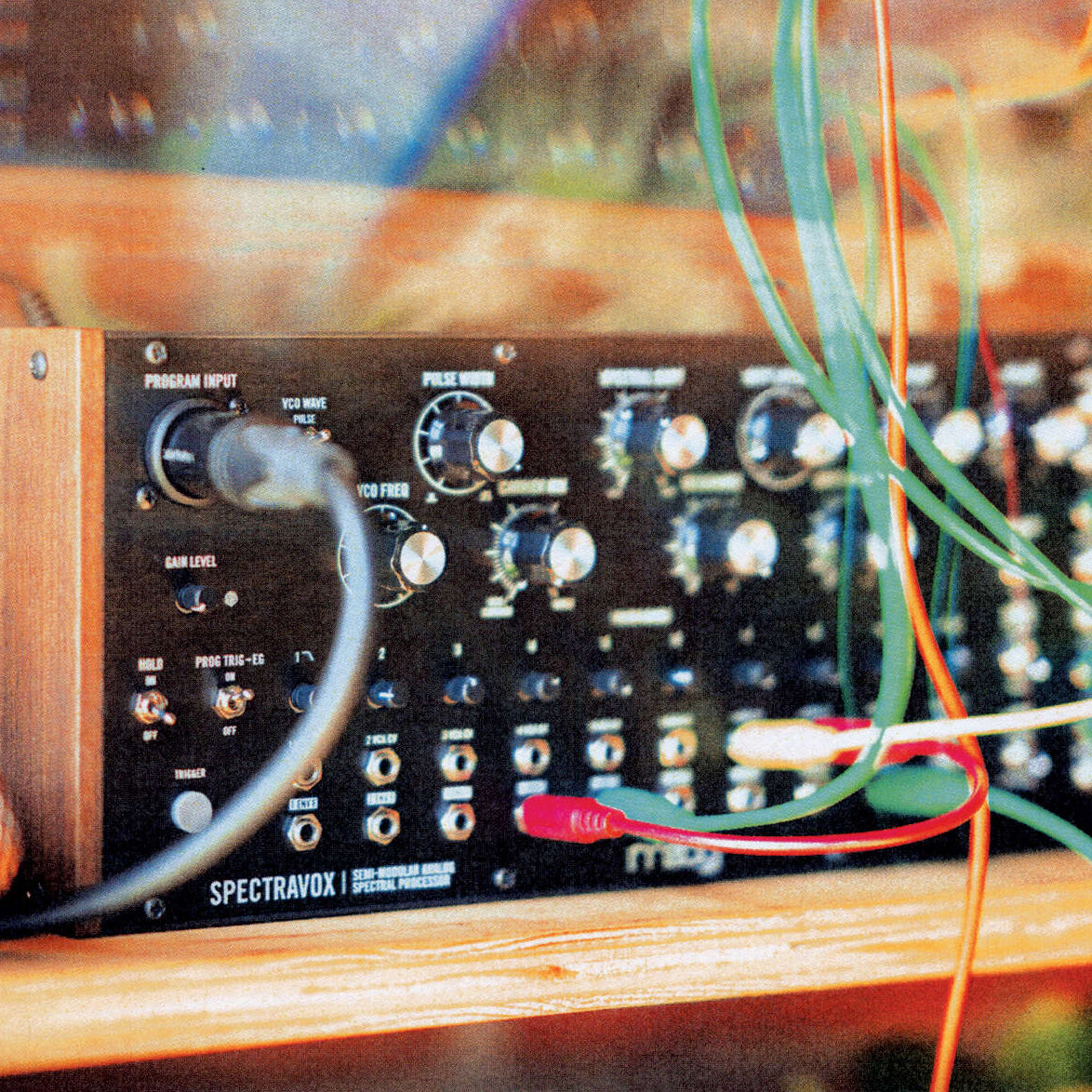

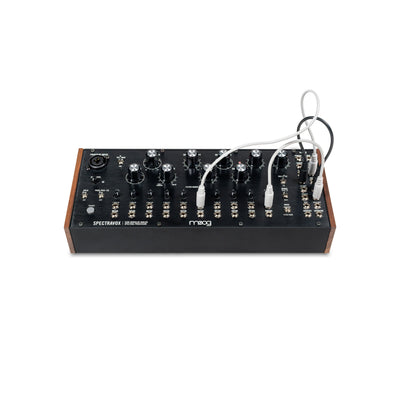

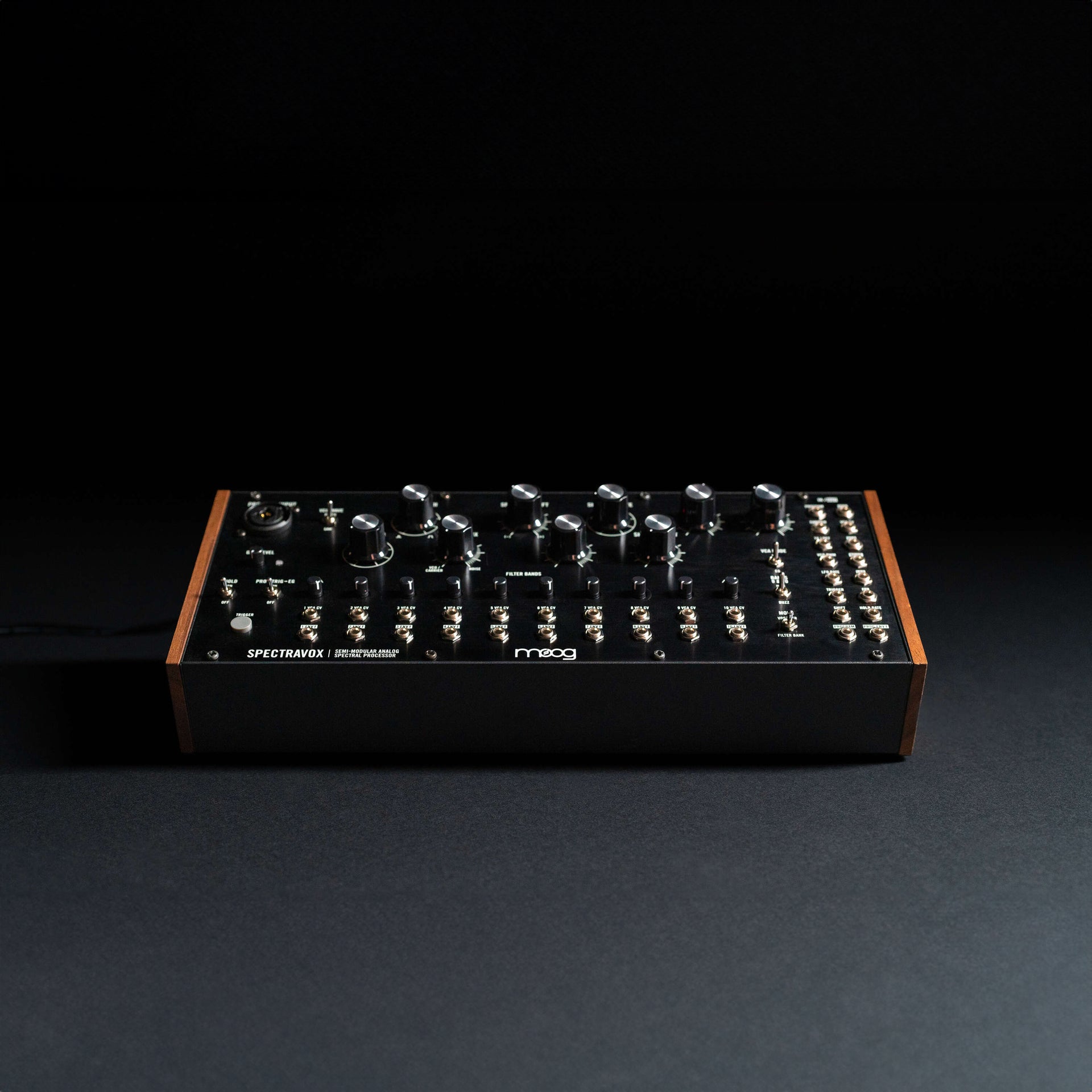

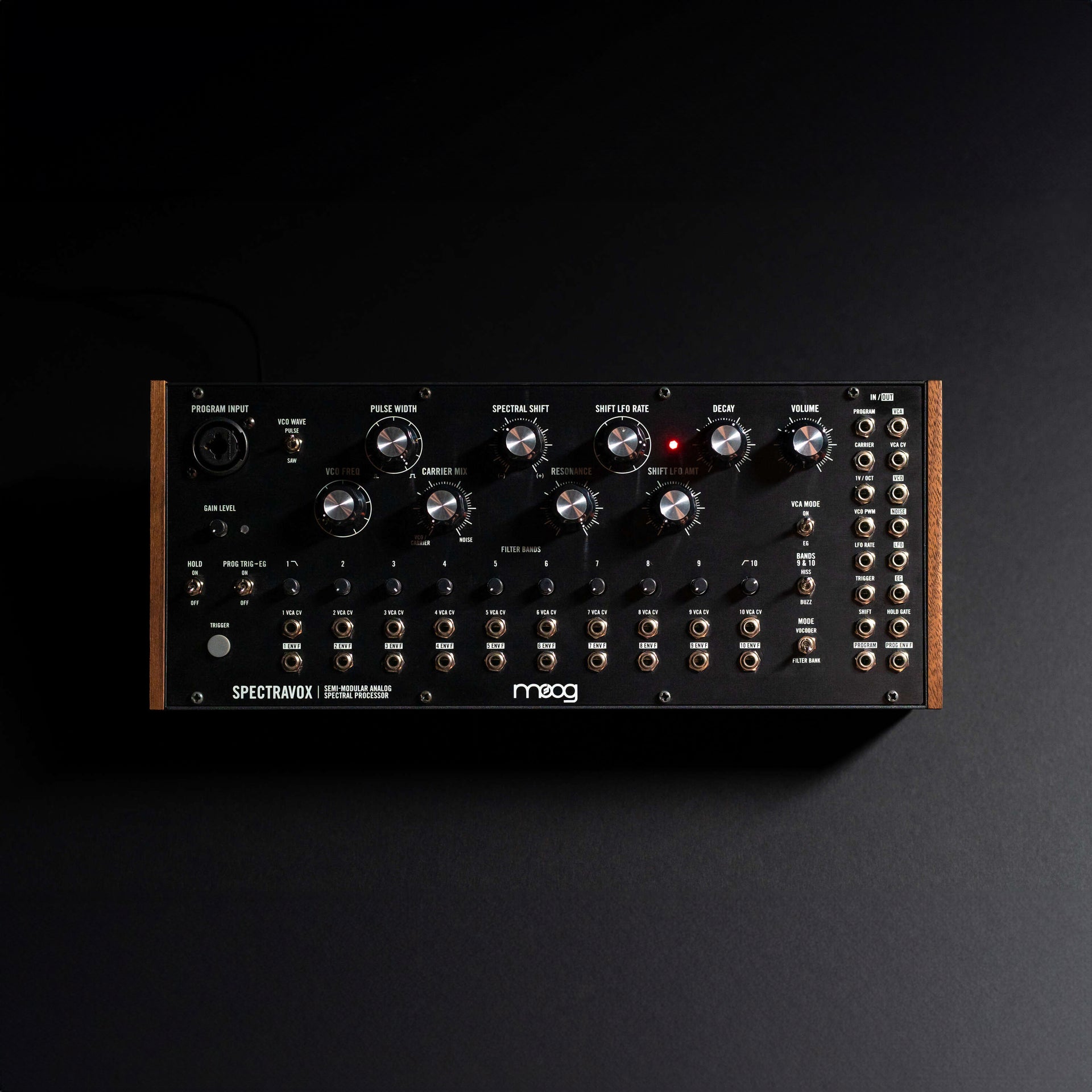

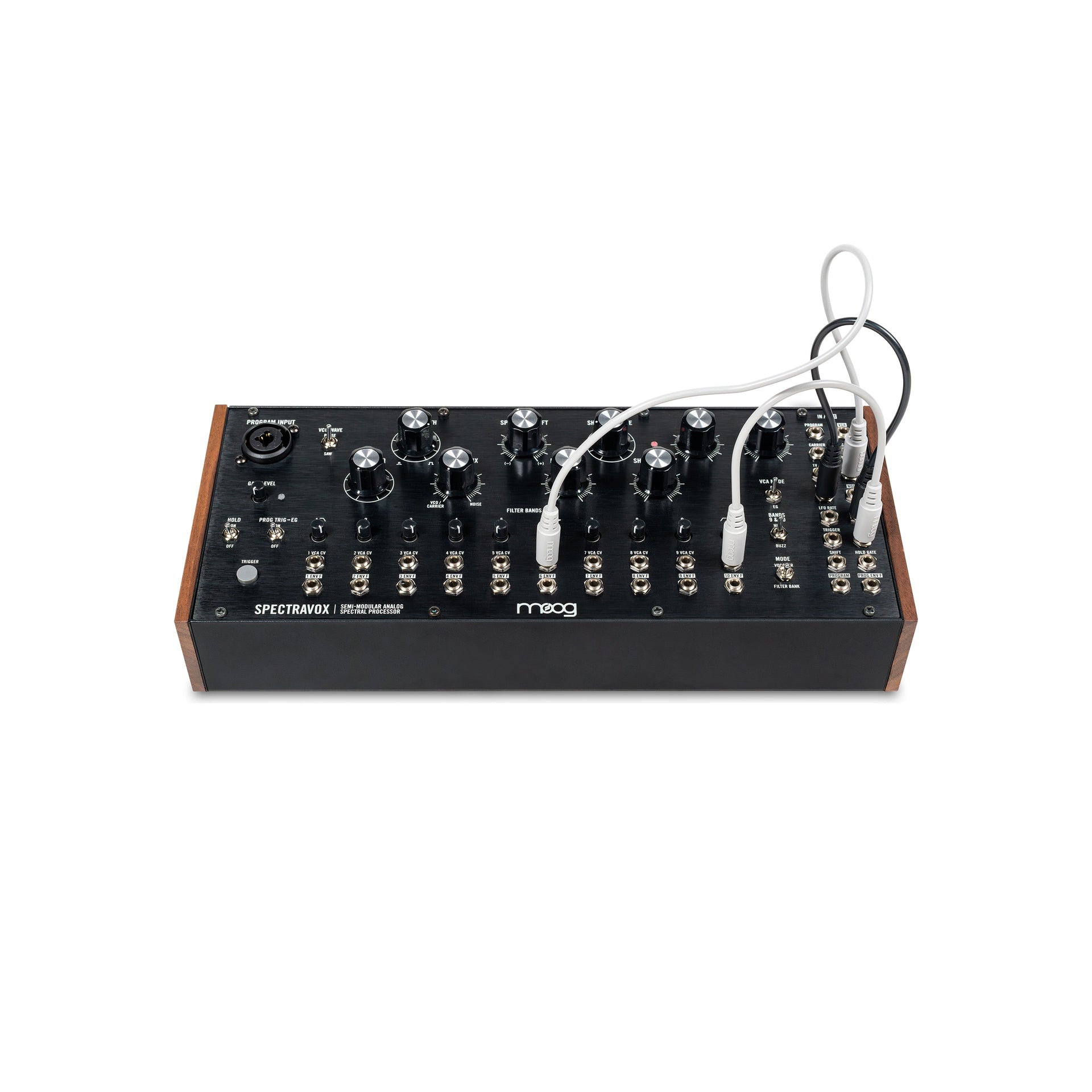

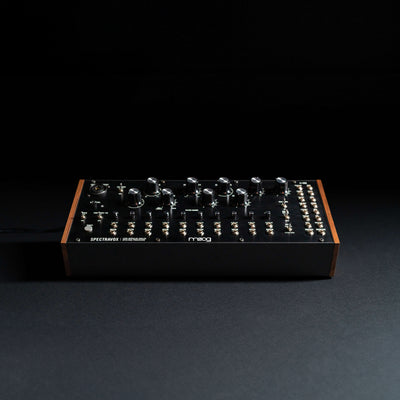

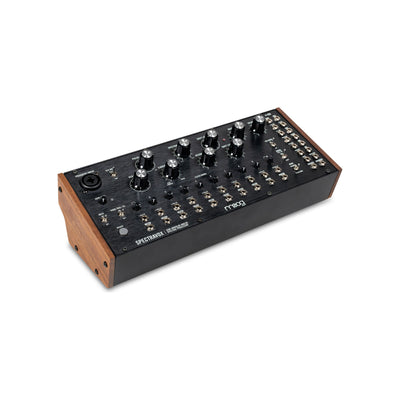

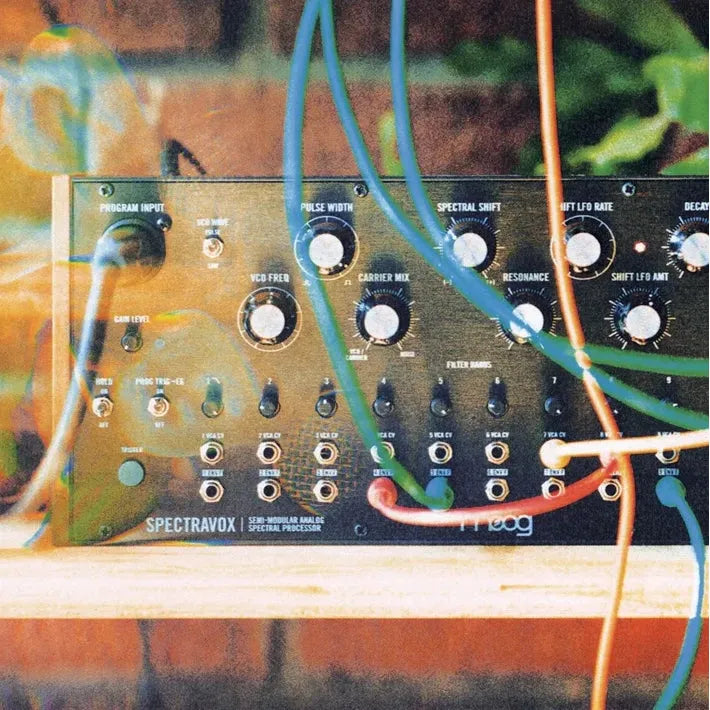

Spectravox, the newest member of Moog's family of semi-modular products, is an innovative tool for sculpting sound. Simply put, an analog spectrum processor built around a 10-band filter bank, with the ability to create vivid table tones and colorful tonal sweeps on its own, adding resonant depth and psychedelic movement to any external sound.
Plug in a microphone and get a 10-band vocoder with innovative integrated modulation of all filters. As an extension of and exploration of the architecture of a vocoder and filter bank, the Spectravox is both a highly flexible instrument and a signal processor with an extensive patchbay, which is easily integrated into both the small and large studio.
- Sound Source: VCO, White Noise Generator
- Filters: 10x variable resonance voltage-controlled filters: 1 Low-Pass Filter, 8
- Bandpass Filters, 1 High-pass Filters
- Envelope: VCA EG (Decay)
Analysis Engine Sources:
- Sources: Ext. Input via 1/4" / XLR combo jack or 3.5mm jack with preamplifier. XLR input supports dynamic mics. Condenser mics may require external 48V power.
Patchbay:
- Jacks: 36 x 3.5mm
- Inputs: 19 Input Jacks
- Outputs: 17 Output Jacks

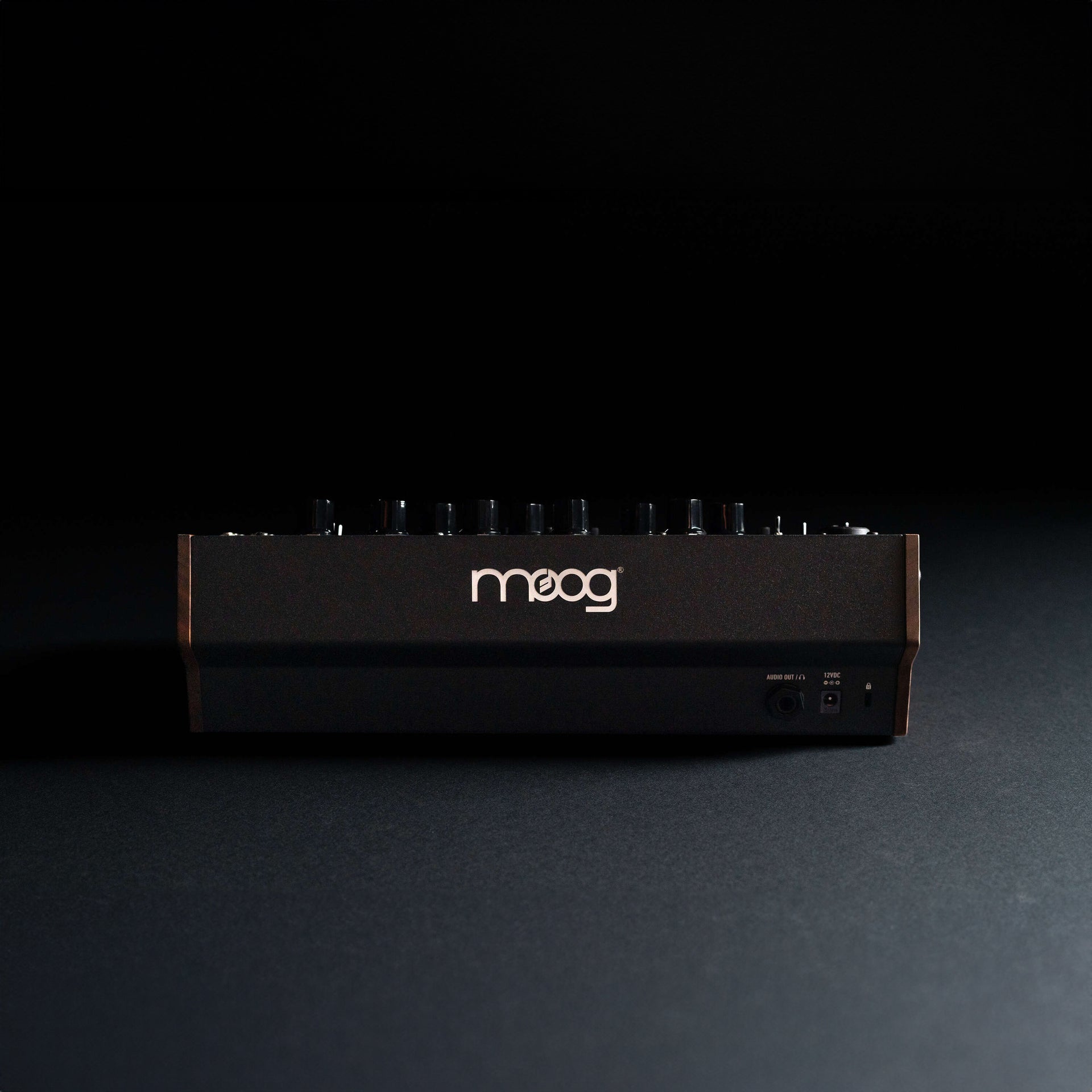

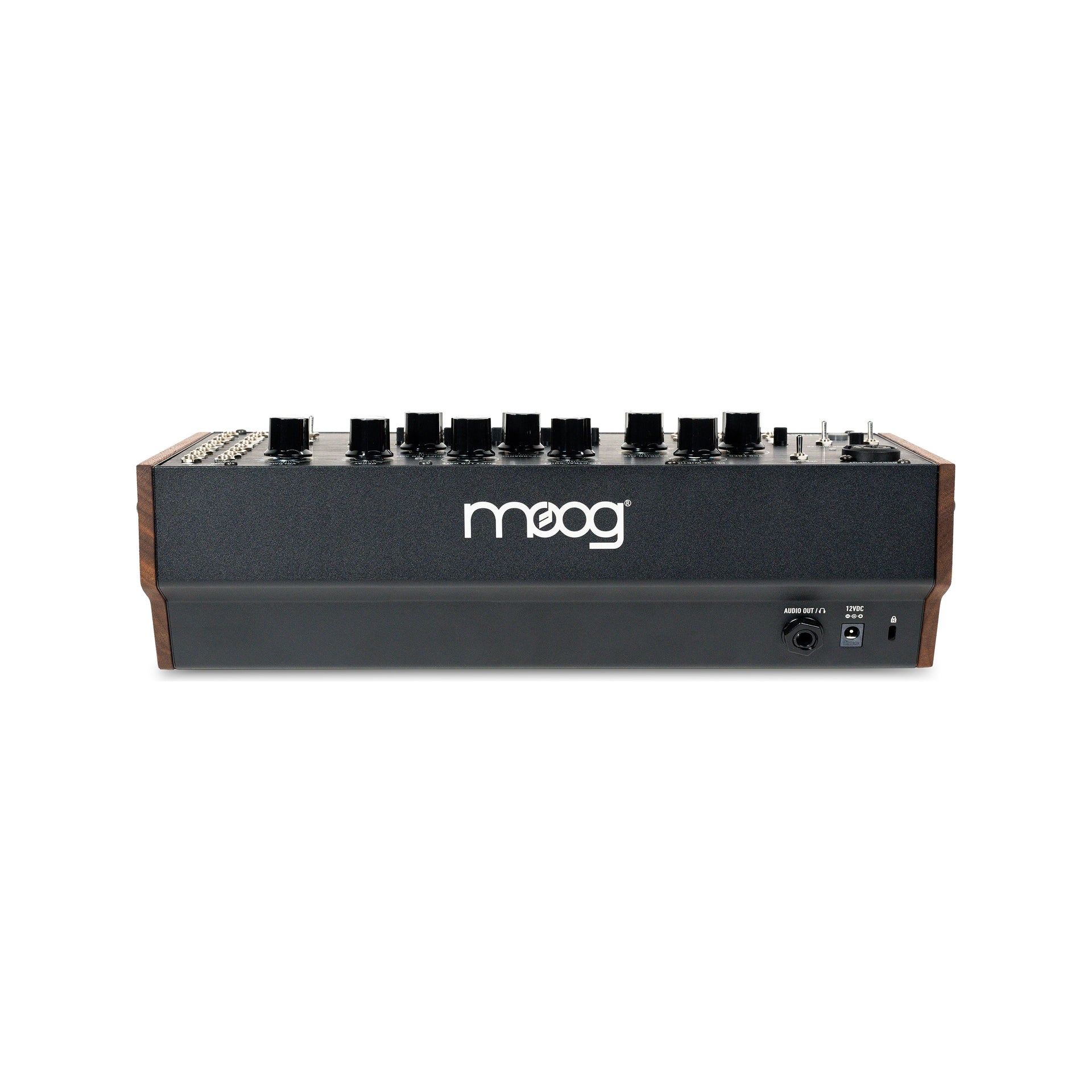

Rear panel:
- Audio: 1⁄4" TRS Headphone or 1⁄4" TS Instrument
- Power: Power supply connection
- Security: Kensington lock slot
Power Supply (Included):
- Style: wall adapter; barrel connection; center-pin positive
- Input: 100 - 240VAC; 50 Hz - 60 Hz
- Output: +12VDC; 2.0A
- Power Consumption Typical: 4.8 Watts
Eurorack Specs:
- Current Draw: 450mA (maximum) from +12VDC (10-pin header)
- Mounting Dims: 60HP (1.5" Module Depth)
In the box:
- Spectravox Analog Synthesizer
- Power Supply
- Quick Start Guide
- Product Poster
- Preset Overlays
- Patch Cables (5x 12")
- Weights and dimensions
- Weight (lbs) 3.1 lbs
- Weight (kg) 1.5 kg
- Imperial (in) 12.84" W x 5.64" D x 4.2" H
- Metric (cm) 32.61 W x 14.33 D x 10.67
