Now: Tekt NTS-2 Build your own oscilloscope!

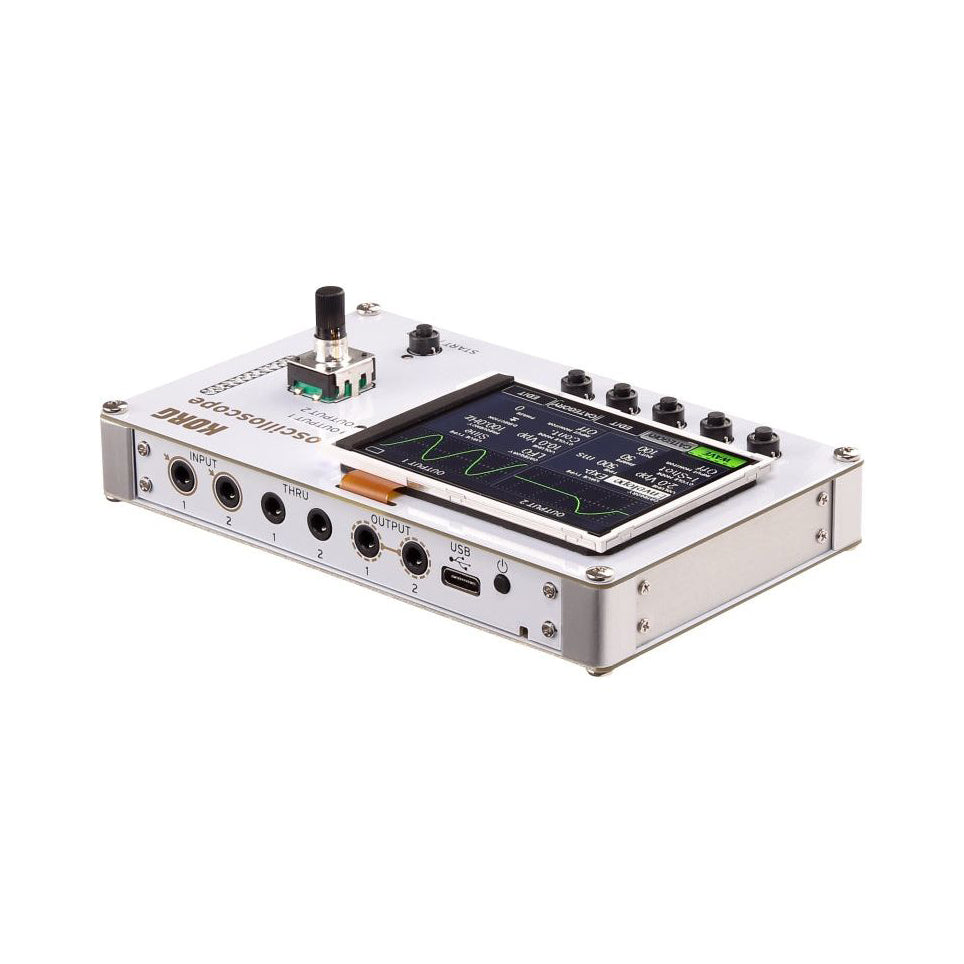

The NTS-2 is a 4-channel oscilloscope that displays both control voltage (CV) and audio signals. It also has a flexible waveform generator, a spectrum analyzer and a tuner function. No matter what level of technical knowledge you are at, you have here a reliable tool for precise references to the music you create.

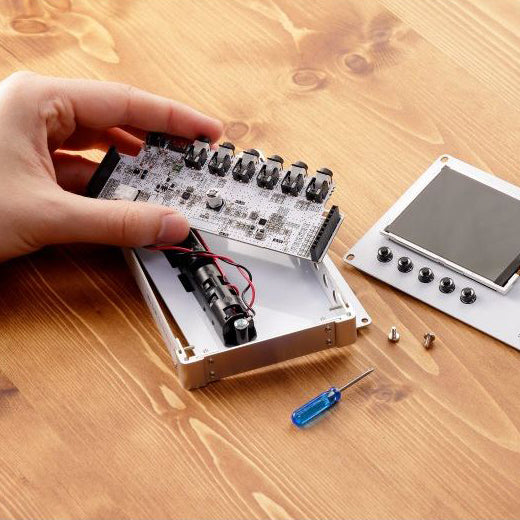

Nu:tekt is a series of products in a compact format with a DIY mindset, they are simply building kits where you assemble your instrument yourself in a simple way. The assembly instructions are clear, the assembly is simple, the necessary tools are included and no soldering is required. A fun and creative way to create an instrument to create music with.
- The NTS-2 oscilloscope kit is a stand-alone kit and does not include the “PATCH & TWEAK with KORG” book, nor the exclusive side panels and stickers that were included in the bundle.
- The “PATCH & TWEAK with KORG” book on its own (*) is readily available for purchase at www.bjooks.com and from resellers internationally.
- Dimensions 12.9 x 7.8 x 3.9 cm
- Weight 130g (not including batteries)

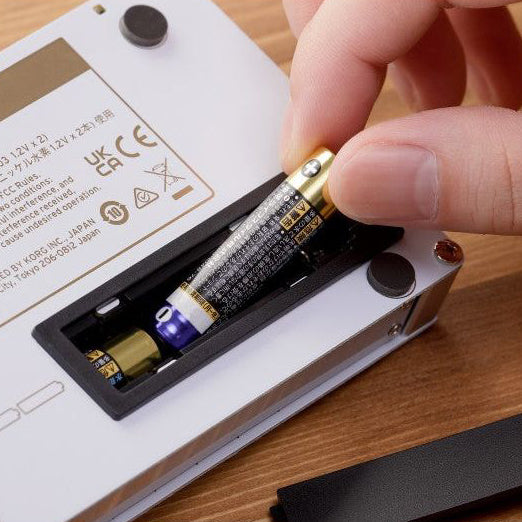

- Power USB type-C (2.0, 500mA max) or 2x AAA batteries (approx 2 hours running time)
- Input: 3.5mm Stereo x2, ±10V max
- Through Output: 3.5mm Stereo x2
-
Output: 3.5mm Mono x2, ±5V max

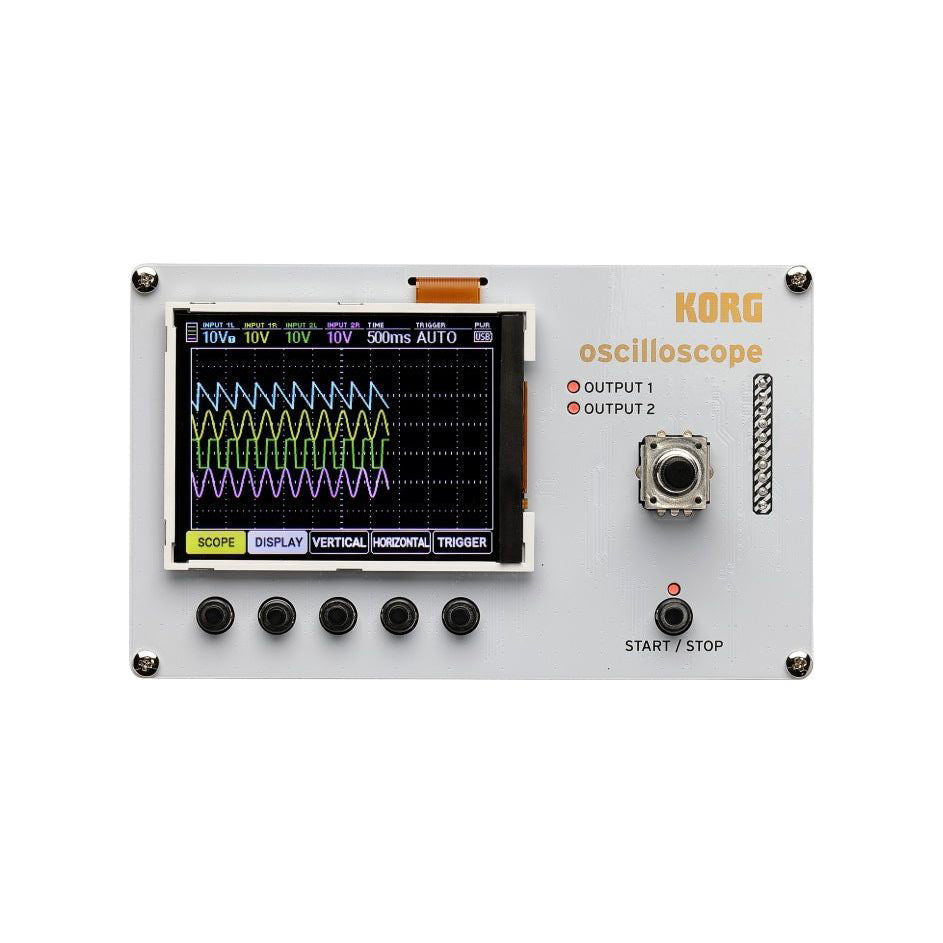

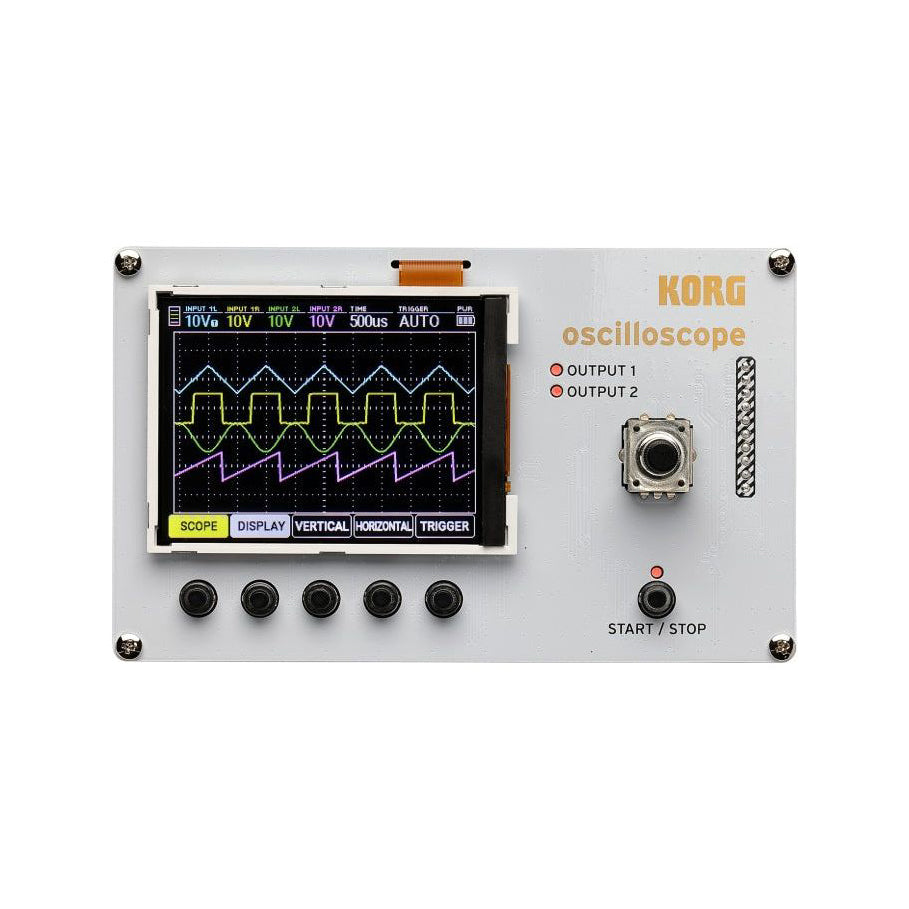

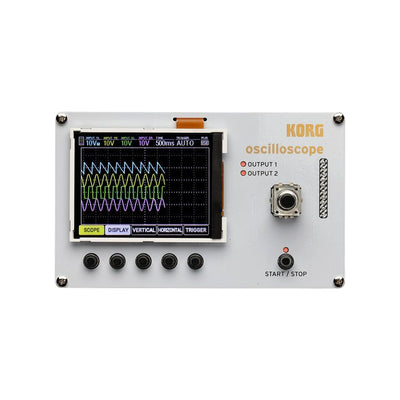

Oscilloscope:
- Display modes: Single, Stereo (Input1L-INPUT1R, Input1L - Input2L, Input2L - Input2R), 4ch、XY(Lissajous, 2ch)
- Vertical: 10mV~5V/div, AC/DC MODE switchable
- Horizontal: 50us~1s/div
- Trigger: Auto, Rise, Fall, Single(rise), Single(fall)

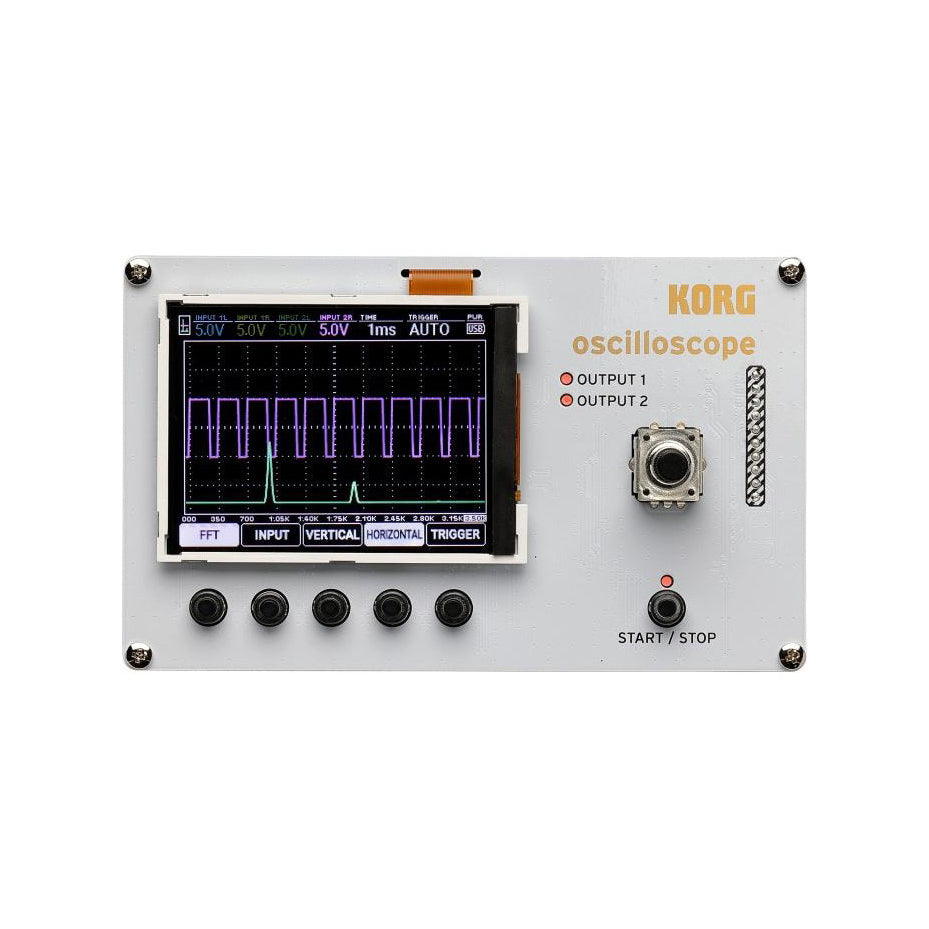

- FFT (Spectrum Analyzer)
- Input: mono (1L, 1R, 2L, 2R)
-
Frequency 20Hz~20kHz

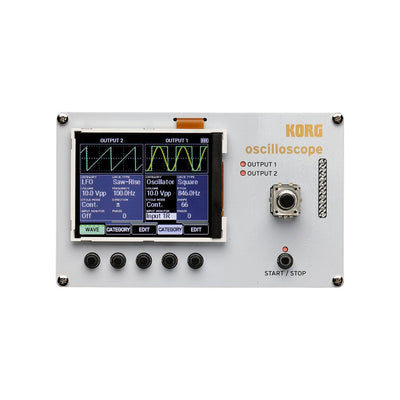

Function Generator:
- Wave type: sine, square, triangle, saw, noise, pulse, envelope
- Frequency: 1Hz~10kHz, Hz/NOTE mode switchable, [1ms~10s,sec/BPM switchable(pulse, envelope mode)]
- Output level: 10Vpp max, V/dB mode switchable

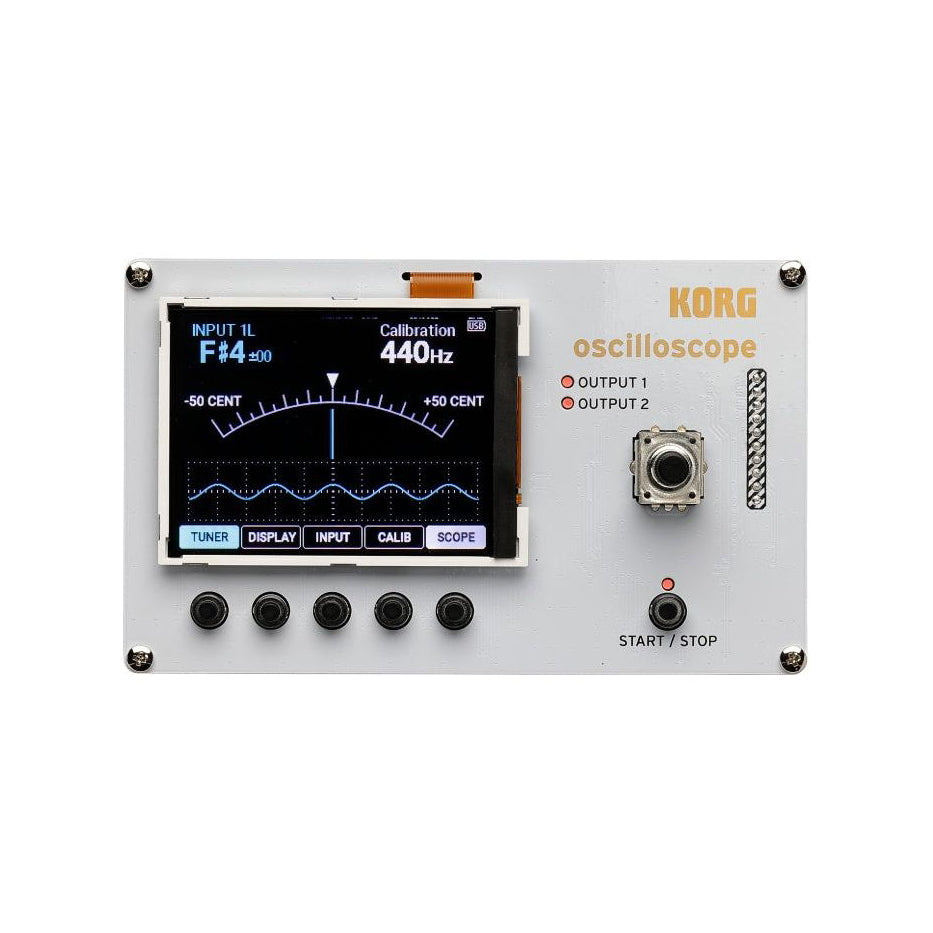

Tuner:
- Display mode: Needle, Meter
- Input: Mono, Stereo (Input1L-Input1R, Input1L-Input2L)
- Calibration: 410-480Hz
