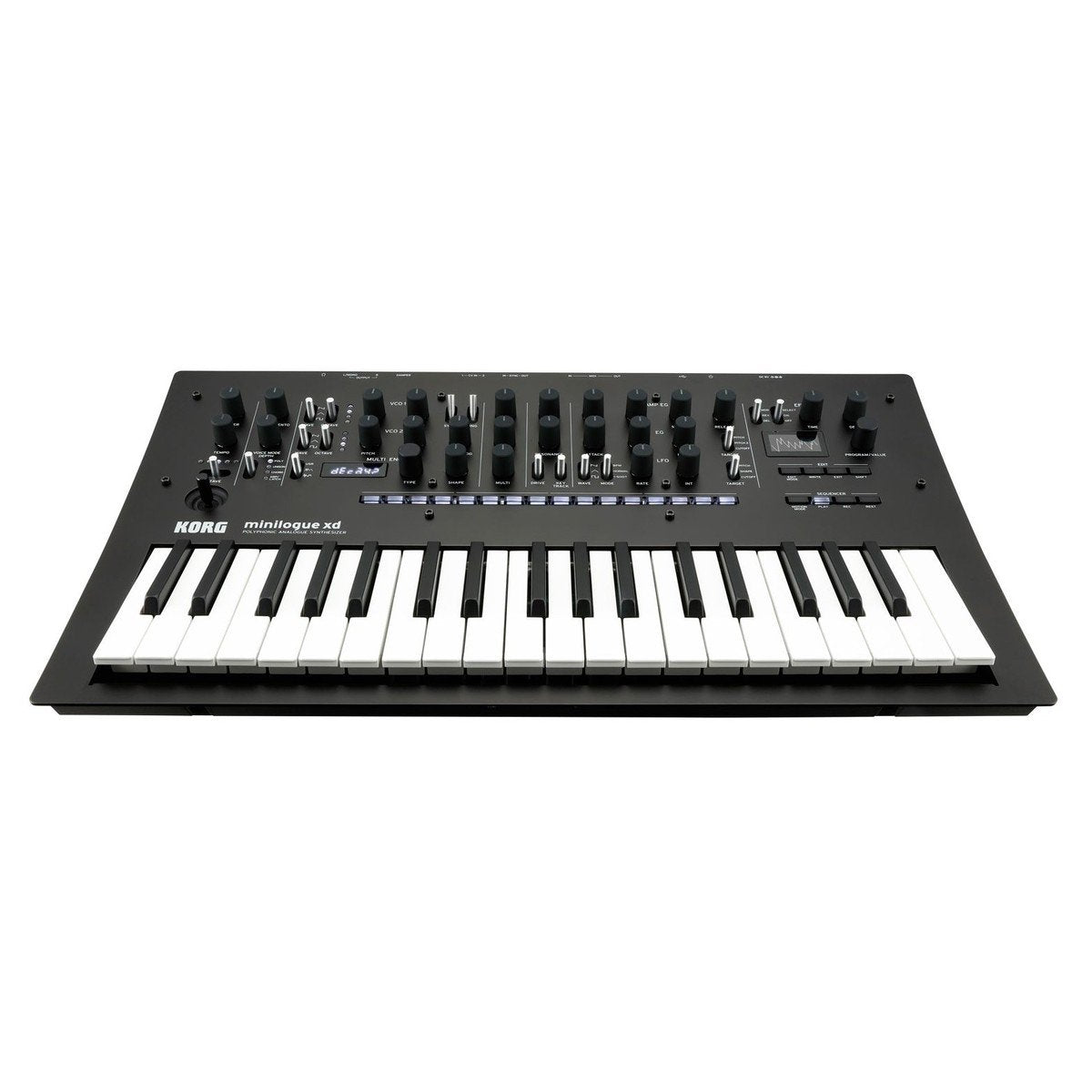

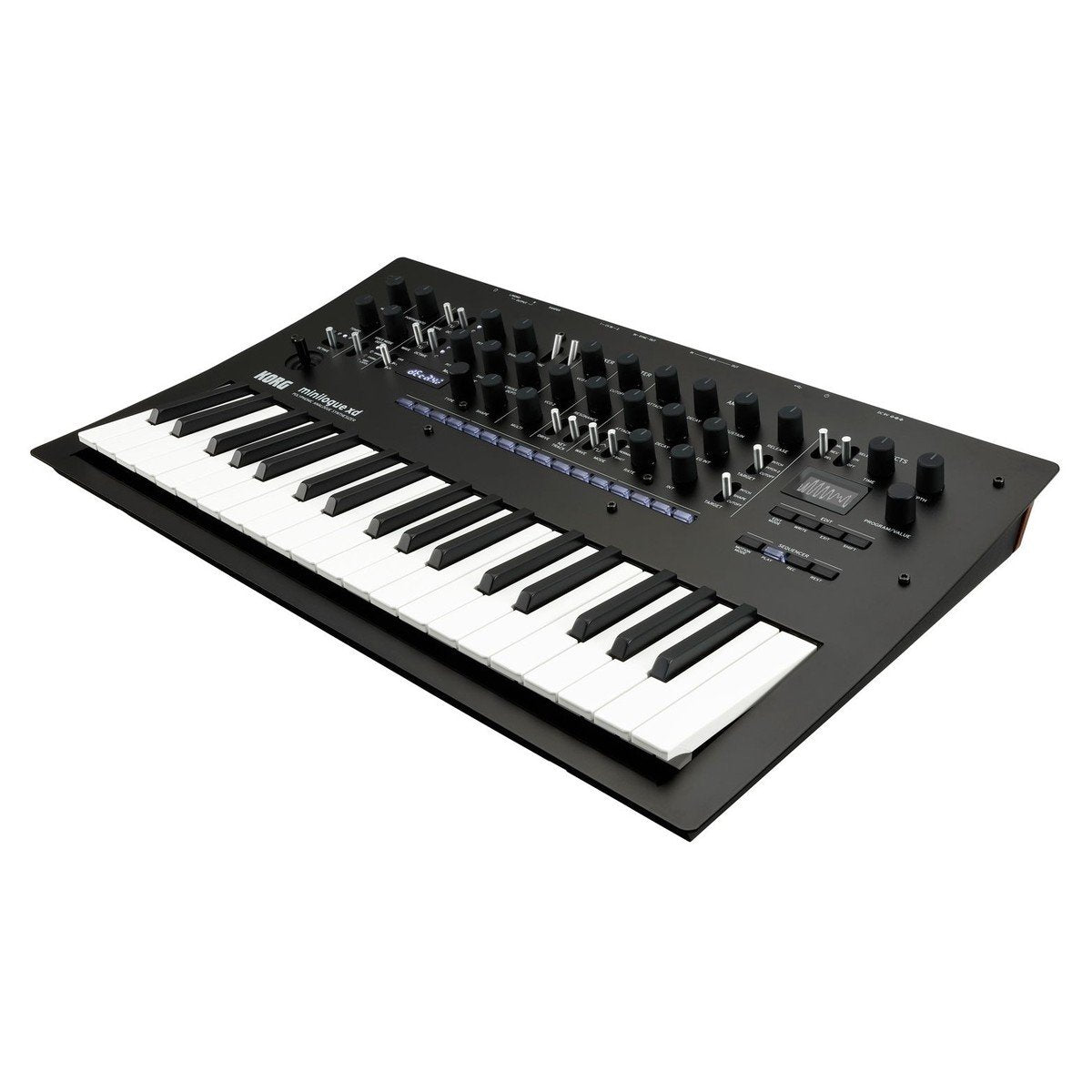

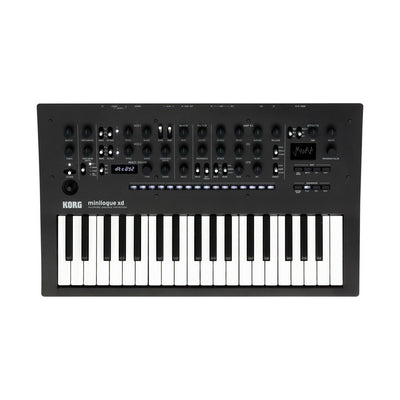

Minilogue XD

KORG has taken the innovations of the Prologue synths and put them into its already revolutionary Minilogue format. The result is a synth with unbeatable capabilities at an unbeatable price. The perfect combination of analog and digital synthesis.

4-voice analog synthesizer with 37 velocity-sensitive keys. The new Minilogue XD also has a digital Multi Engine (Noise, VPM, User) for almost unlimited sound possibilities. There is also an analog low-pass filter, double envelopes, LFO, built-in oscilloscope (!), and a 16-step sequencer with Motion Sequence for up to 4 parameters. Supplied with mains adapter.

• Keyboard 37 keys (Slim-key, velocity sensitive)
• Sound Generation Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
• Maximum Polyphony 4 voices
• Programs 500 voices (more than 200 preload, 300 user programs). Favorite function built in.
• Voice Mode 4 (POLY, UNISON, CHORD, ARP / LATCH). The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.
• Sequencer 16-step polyphonic sequencer. Motion sequence can be used on up to four parameters
• CHORUS 8 types ENSEMBLE 3 types PHASER 8 types FLANGER 8 types USER 8 types
• DELAY 12 types USER 8 slots
• REVERB 10 types USER 8 slots
• Joy stick that can modify different parameters for each program

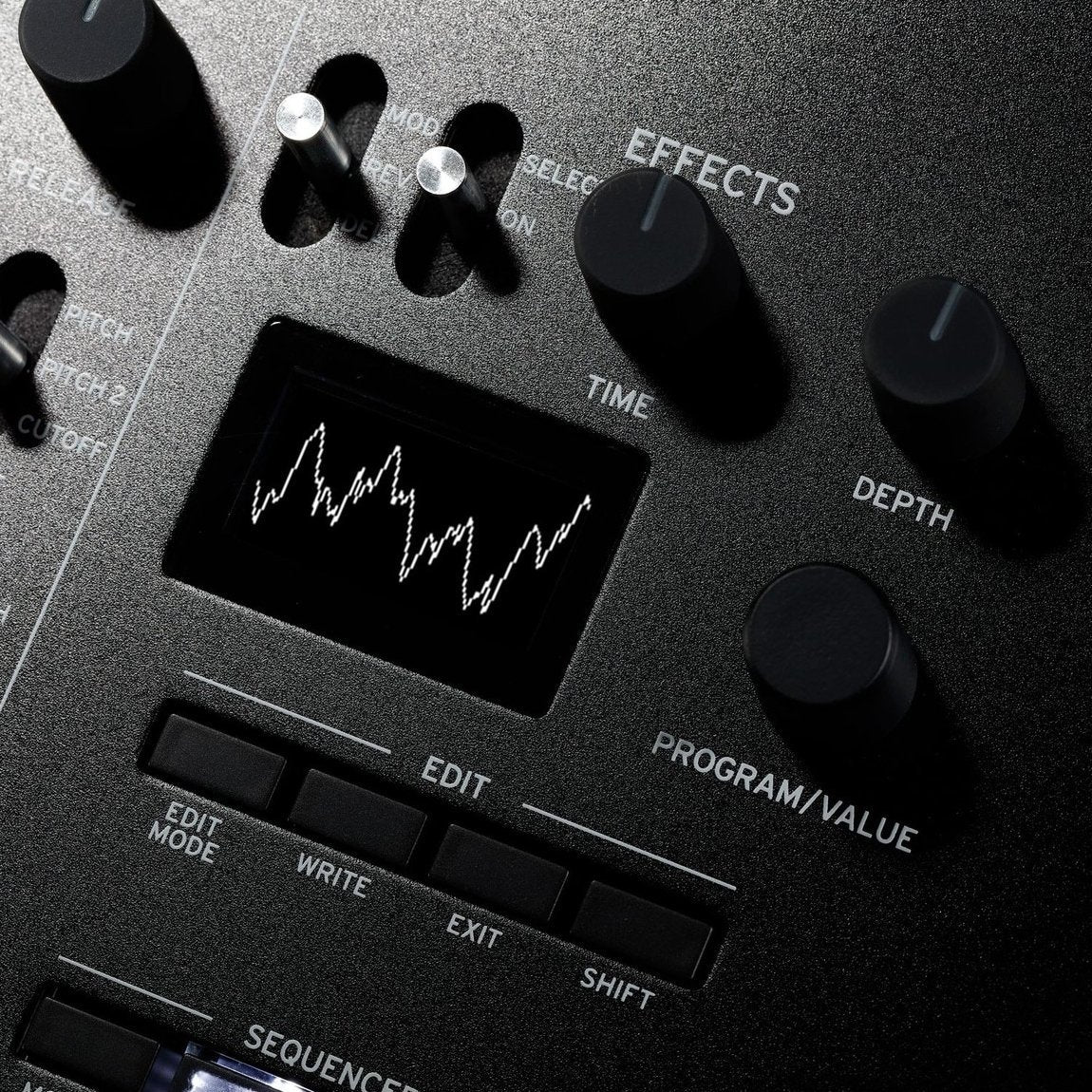

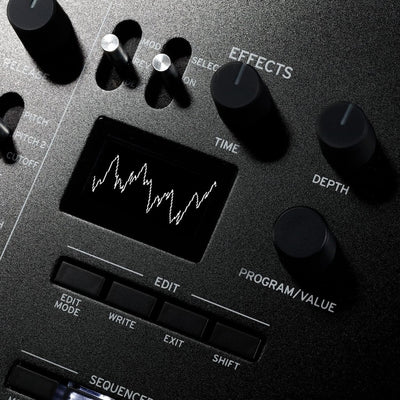

• Real-time OLED oscilloscope provides visual feedback of parameter changes

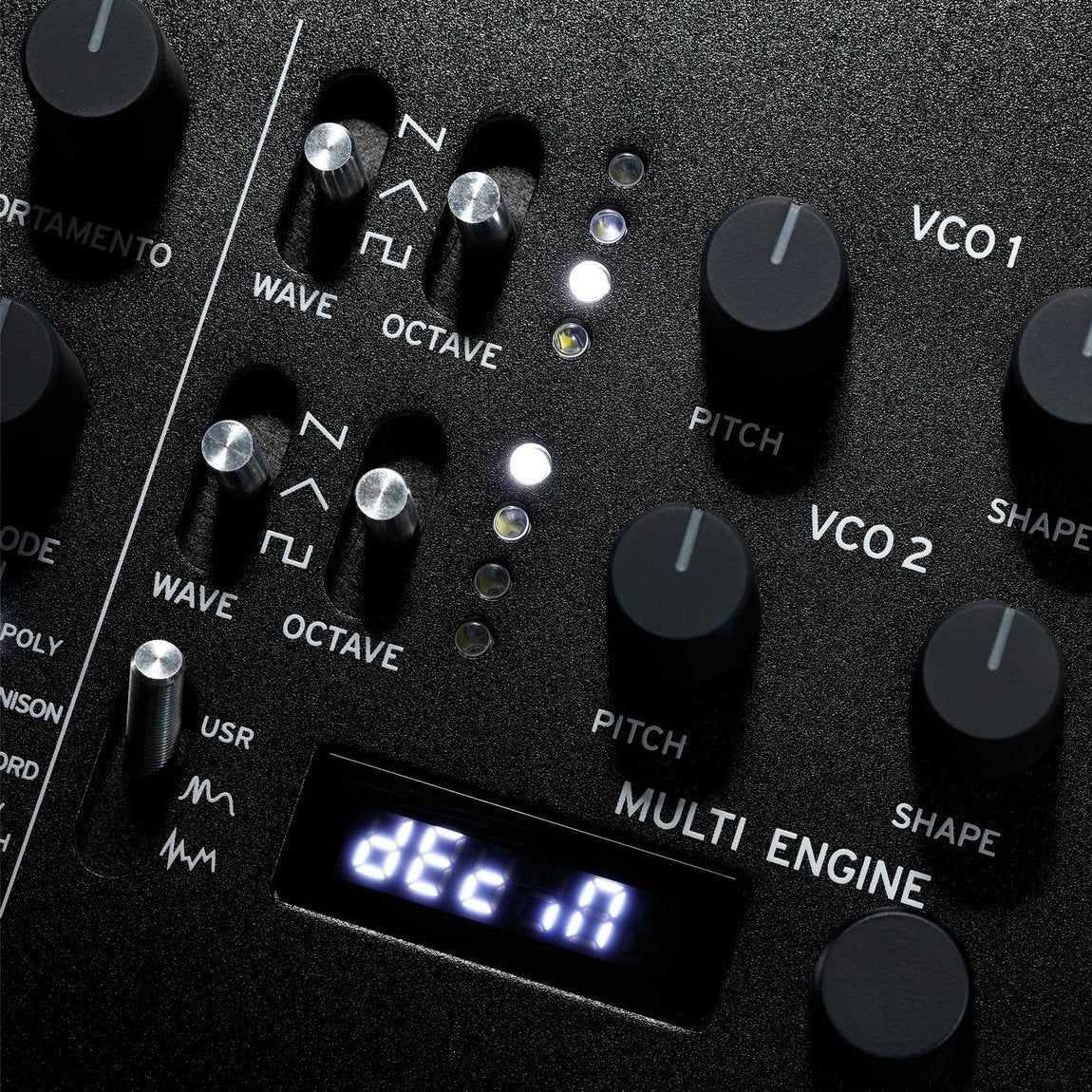

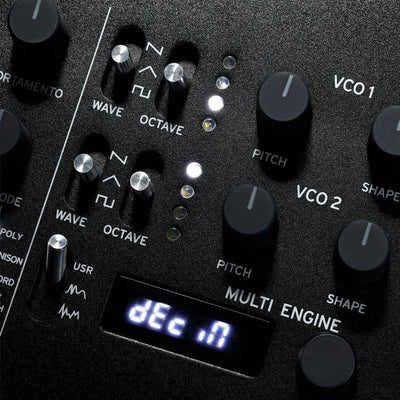

• MULTI ENGINE section 7 segments x 6 digit LED display

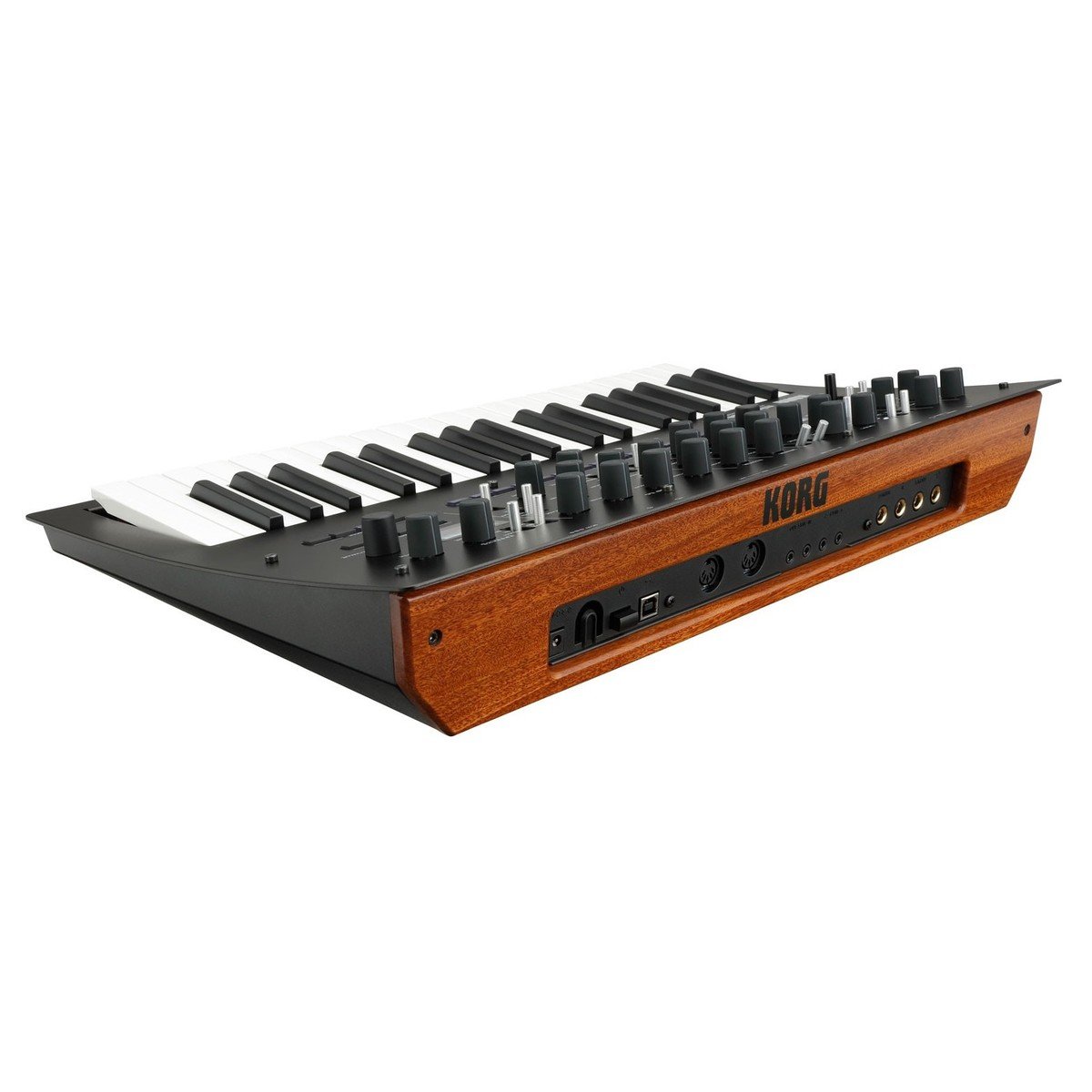

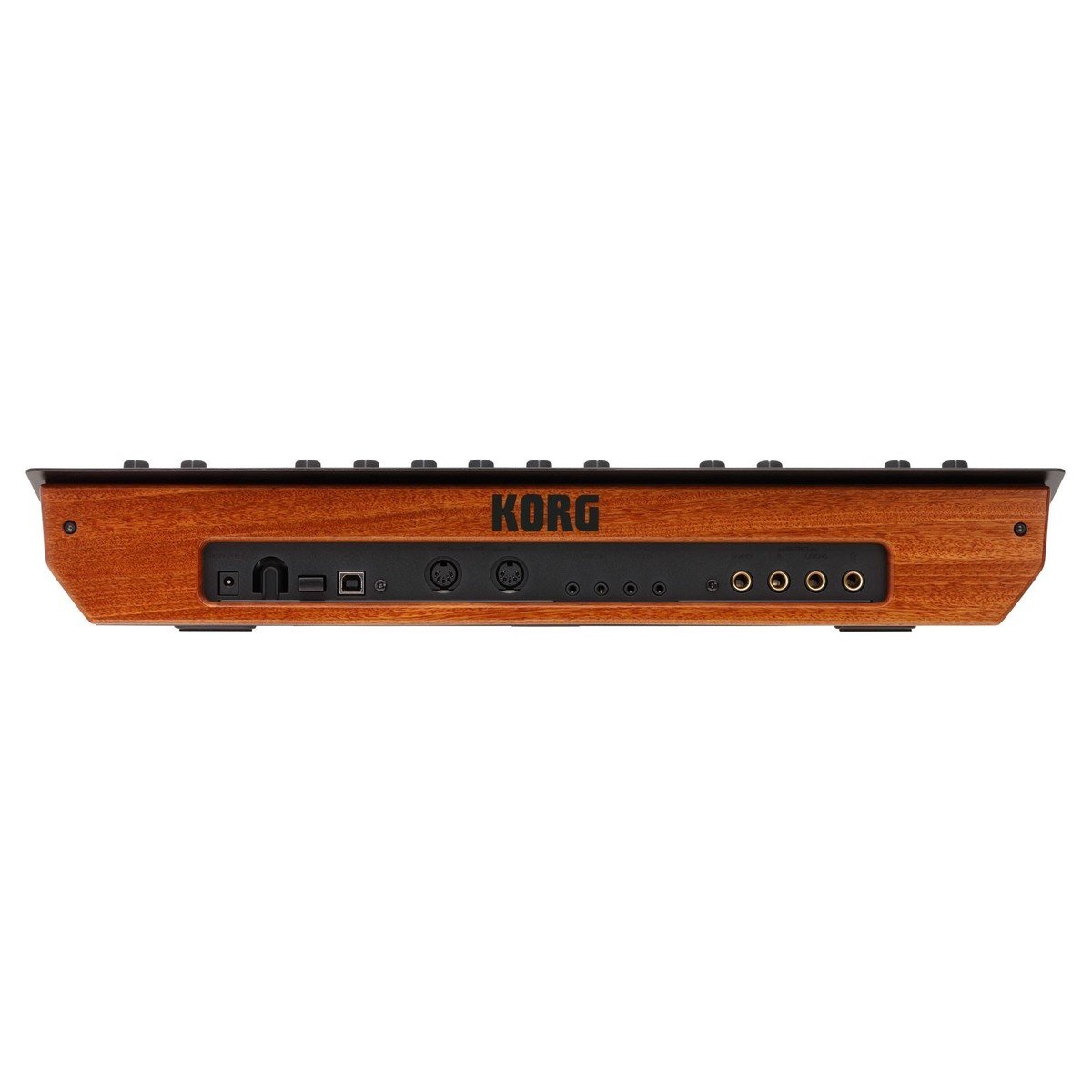

• Headphone jack (stereo phone jack)
• OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
• CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monaural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)&
• SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
• SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
• MIDI IN jack
• MIDI OUT jack
• USB B jack
• DAMPER jack (half damper is not supported)
• Power Supply AC adapter (DC9 V) Power Consumption 8 W
• Dimensions (W x D x H) 500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
• Weight 2.8 kg / 6.17 lbs.
• Included Items AC adapter.
