MS-20 FS Green

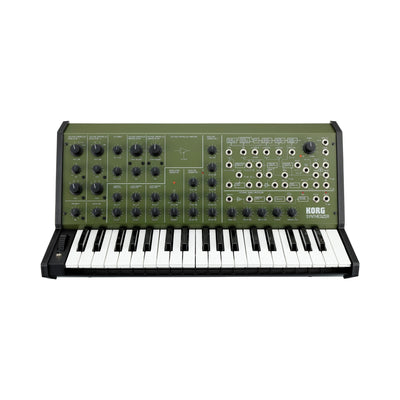

The MS-20 FS from Korg is a full-sized MS-20 with 37 keys.

The MS-20 was introduced in the late 70s and is still a highly sought after instrument thanks to its sound and powerful analog filters.

-----------------

A new twist on the long-awaited full-size unit. The MS-20 played a vital role in KORG's history as a synthesizer brand. This MS-20 FS is the genuine MS-20 made by KORG, faithful to the original in every way. Today, 40 years after first appearing in 1978, musicians hungry for this absolutely timeless sound can hear the genuine analog power of the MS-20. The original is reproduced in every detail, including the package finish and the included manual.

• Completely reproduces the analog circuitry of the time.
• 2VCO / 2VCA / 2VCF / 2EG / 1LFO structure.
• External Signal Processor (ESP) to process an external signal.

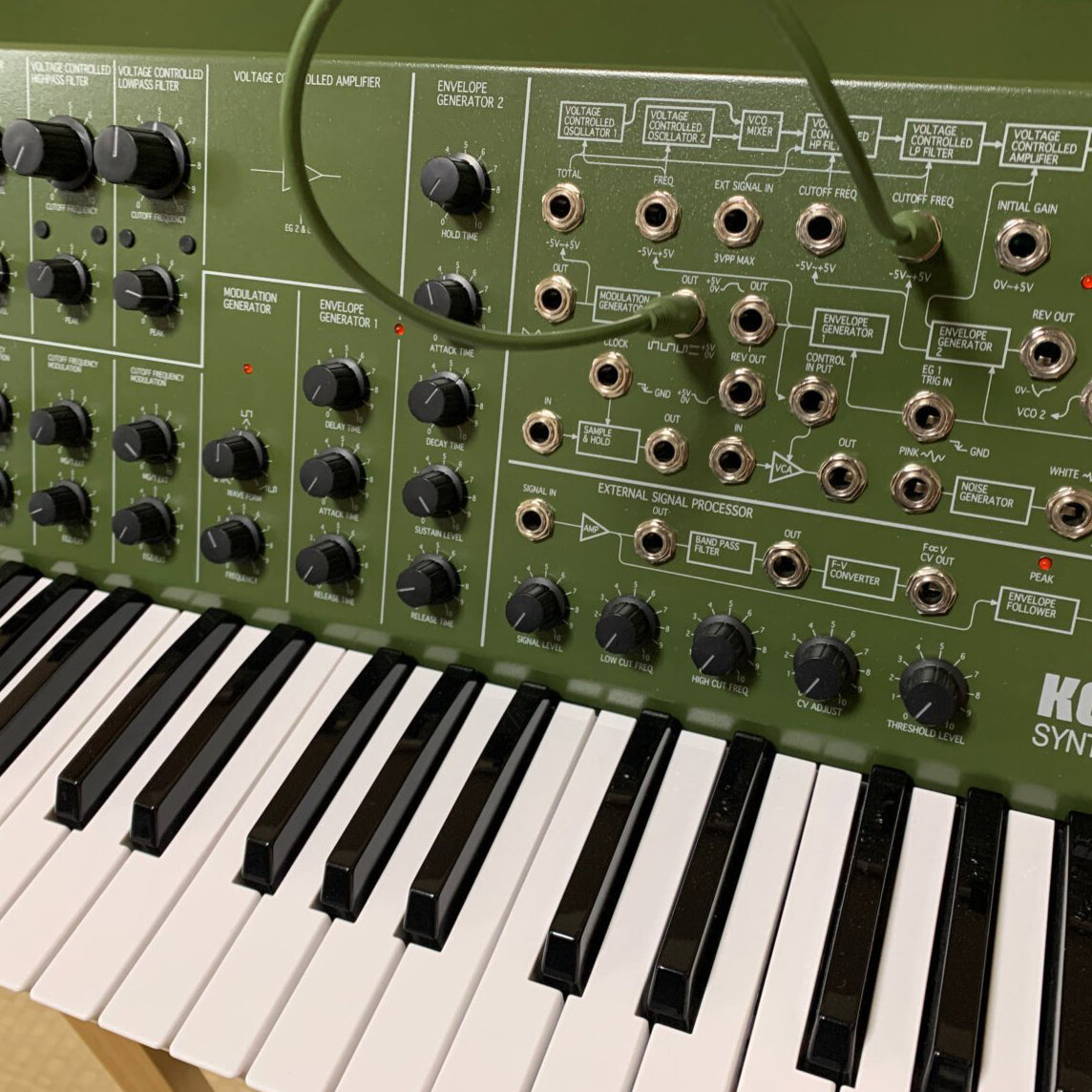

• Patching system provides an extremely high degree of freedom.
• MIDI IN connector and USB port are provided.
• AC adaptor.
• Keyboard 37-note full size keyboard (3 octave)
• Main ControllersControl Wheel (center click), Momentary switch

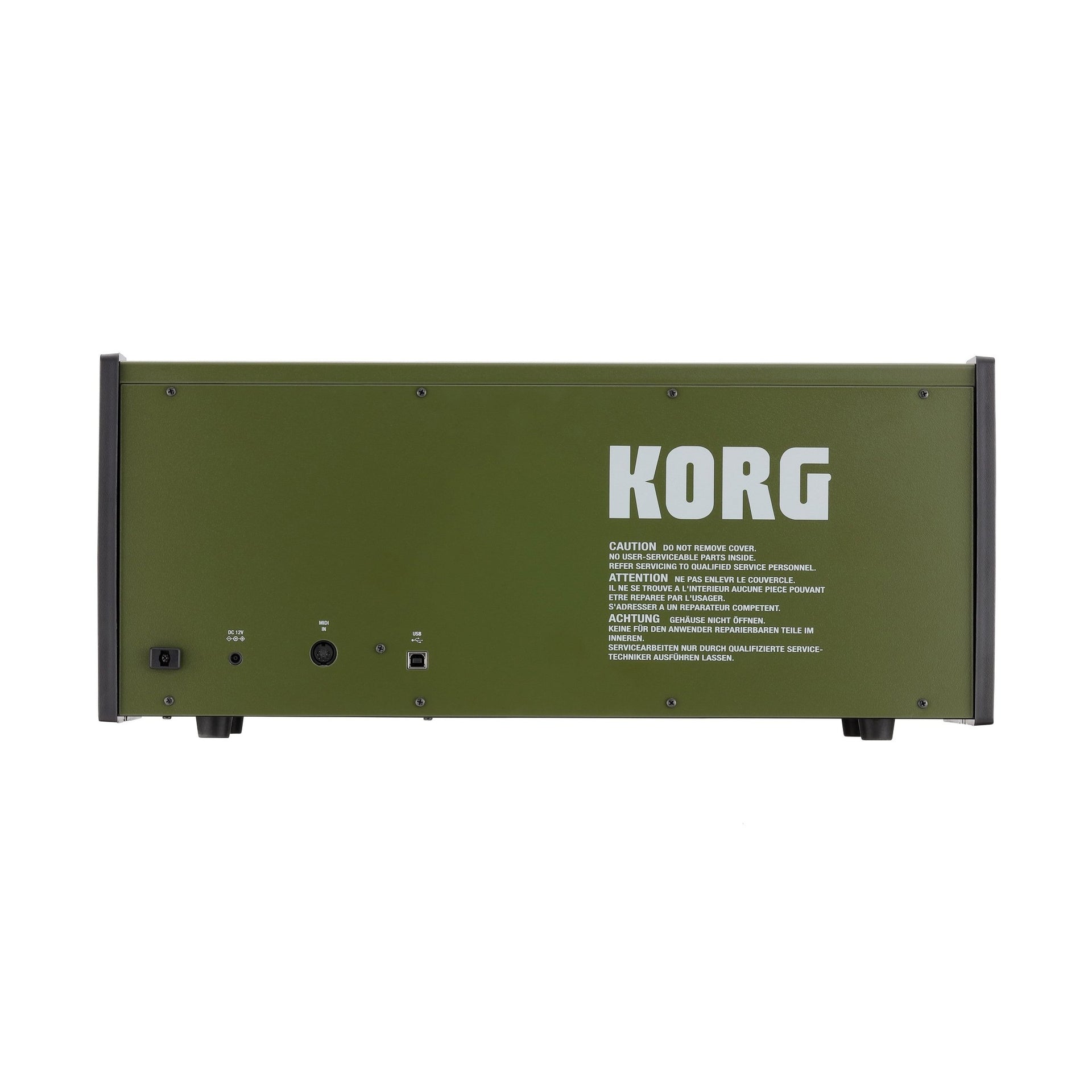

• Input/Output: SIGNAL IN jack (mono phone jack), SIGNAL OUT jack (mono phone jack, 2Vp-p output, 3.5 k ohm), PHONES jack (stereo phone jack, 33 ohm, 48mW), DC12V jack, MIDI IN jack , USB connector (type B)
• Power Supply: DC12V
• Dimensions: (W x D x H) 573mm x 316mm x 248mm/22.56" x 12.44" x 9.76"
• Weight: 6.3 kg/13.89 lbs.
• Included Items: AC adapter (12 V/2.5 A), patch cable x 10 MS-20
• FS shares other specifications and features with MS-20 mini.
