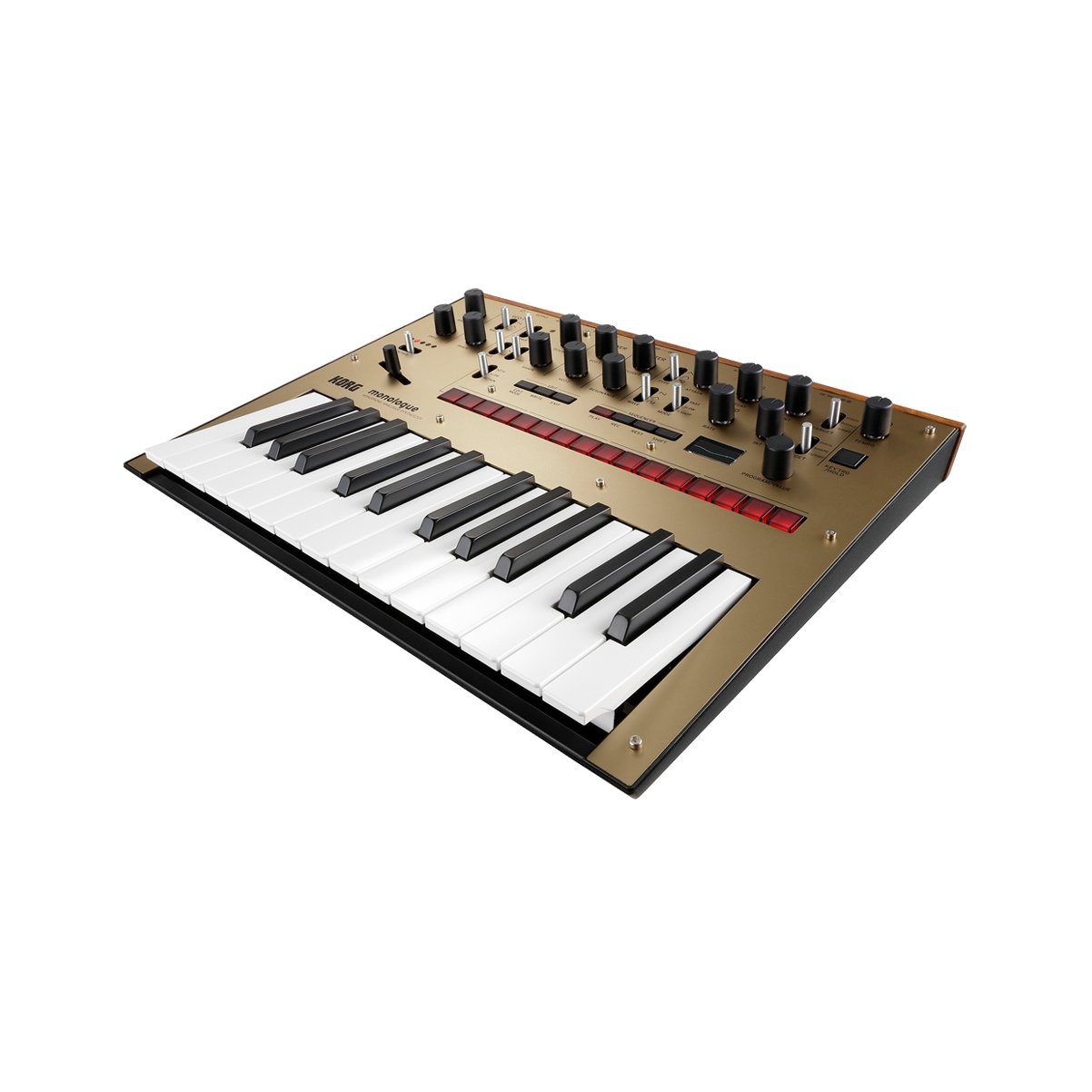

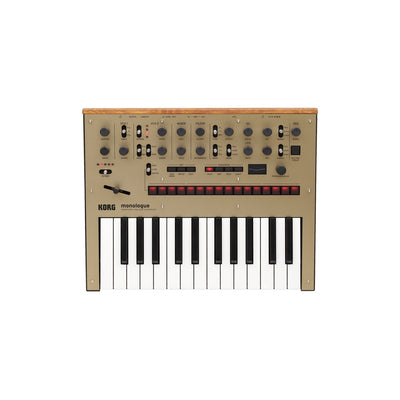

Monologue-GD Analog Synthesizer, gold finish
Analog synthesizer with all-new synthesis structure optimized for amazing monophonic sounds and sequences.
Fully programmable, analog synthesis for all players; monologue is the next-generation monophonic synthesizer that shares the spirit of the acclaimed minilogue, with a completely new voice and powerful new features.
Monologue Specifications:
Keyboard:
25-keys (Slim-key, velocity sensitive)
Sound Generation:
Analog synthesis
Program:
100 programs (80 Presets / 20 Users) Each program includes microtuning and sequence data settings.
Main Synthesis Parameters:
MASTER: Drive, VCO1: Wave (Saw, Triangle, Square), Shape, VCO2: Octave, Wave (Saw, Triangle, Noise), Sync/Ring, Pitch, Shape, MIXER: VCO1, VCO2, FILTER: Cutoff, Resonance, EG: Type (A/D, A/G/D, G), Attack, Decay, Int, Target (Pitch, Pitch 2, Cutoff), LFO: Wave (Saw, Triangle, Square), Mode (Fast, Slow, 1-Shot), Rate, Int, Target (Pitch, Shape, Cutoff)
Sequencers:
16-step monophonic sequencer. Motion sequence can be used on up to four parameters
Microtuning:
32 settings (20 Preset tunings / 6 User scales / 6 User octaves) Each setting can be set the key.
Controls:
23 dedicated panel controls deliver immediate parameter access. A slider can control different parameters for each program
Display:
Real-time OLED oscilloscope provides visual feedback of parameter changes
Connectors:
Headphones (6.3mm stereo phone jack),
Output (6.3mm monaural phone jack),
Audio In (6.3mm monaural phone jack), Sync In (3.5mm monaural mini jack),
Sync Out (3.5mm monaural mini jack),
MIDI In, MIDI Out,
USB Type B
Power Supply: AA alkaline battery x 6 or AA nickel-metal hydride battery x 6, Or AC adapter (DC 9V) (KA-350 optional)
Battery Life: Approximately 6 hours (using alkaline batteries) Approximately 8 hours (using nickel-metal hydride batteries)
Power Consumption: 2.5 W
Dimensions (W x D x H): 350 x 276 x 76 mm / 13.78" x 10.87" x 2.99"
Weight: 1.7 kg / 3.78 lbs.
Color Gold
Included Items: AA alkaline battery x 6 (for verifying operation) Accessories: AC adapter (DC 9V), Sync Cable SQ-CABLE-6
