WA273-EQ 1073 Style

Säljare
Warm
Ordinarie pris
14 795 kr
Försäljningspris
14 795 kr
Ordinarie pris
16 695 kr
Slutsåld
Enhetspris
per

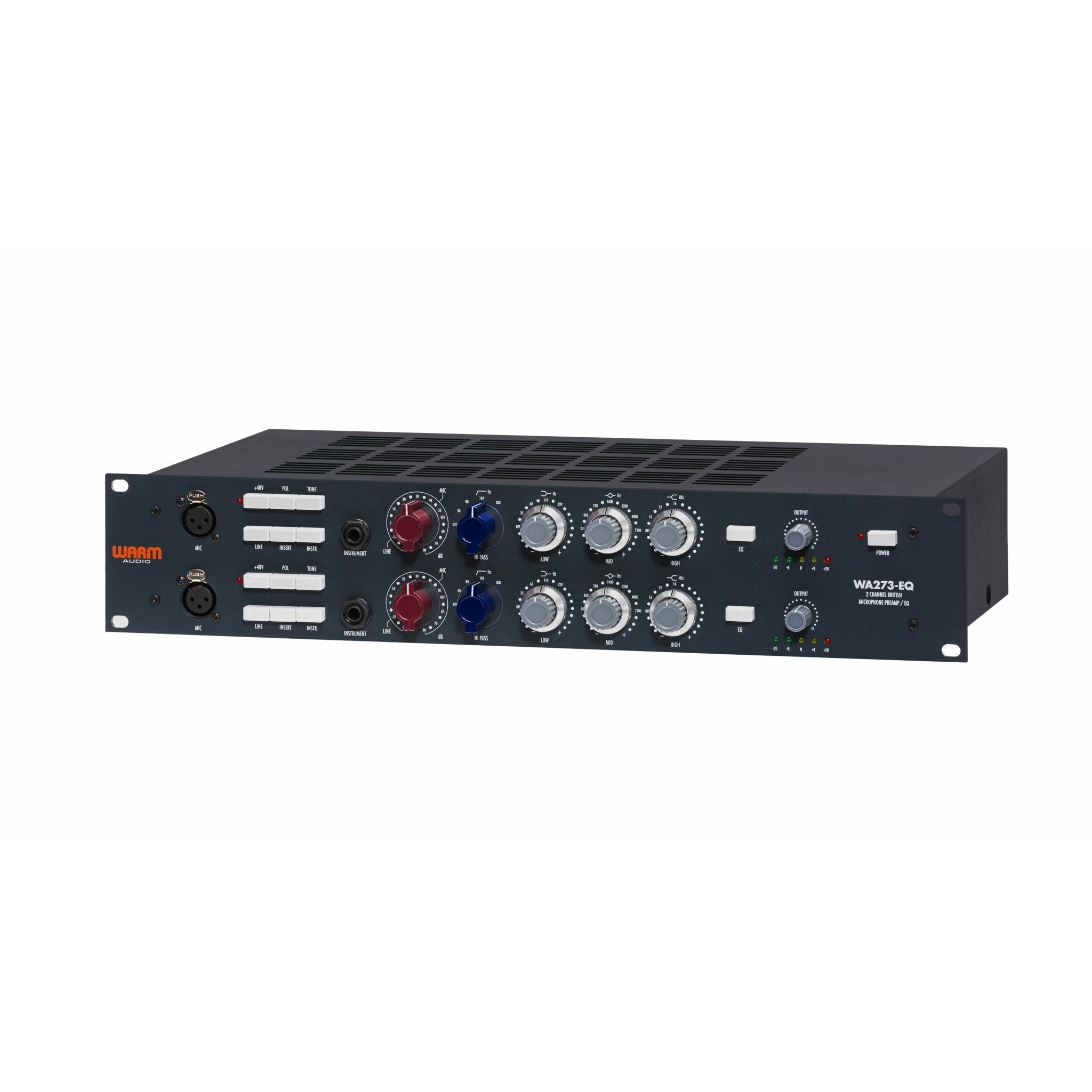

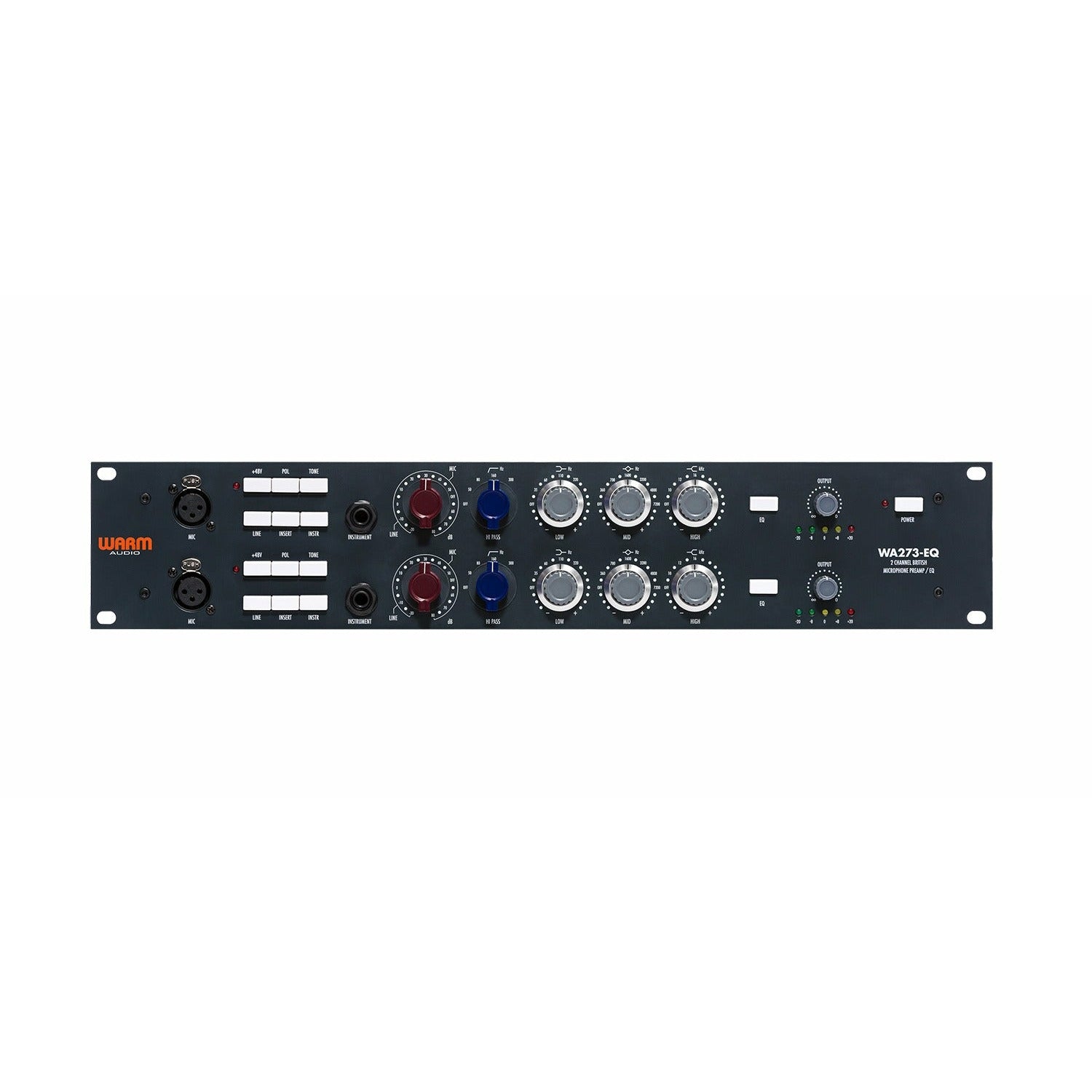

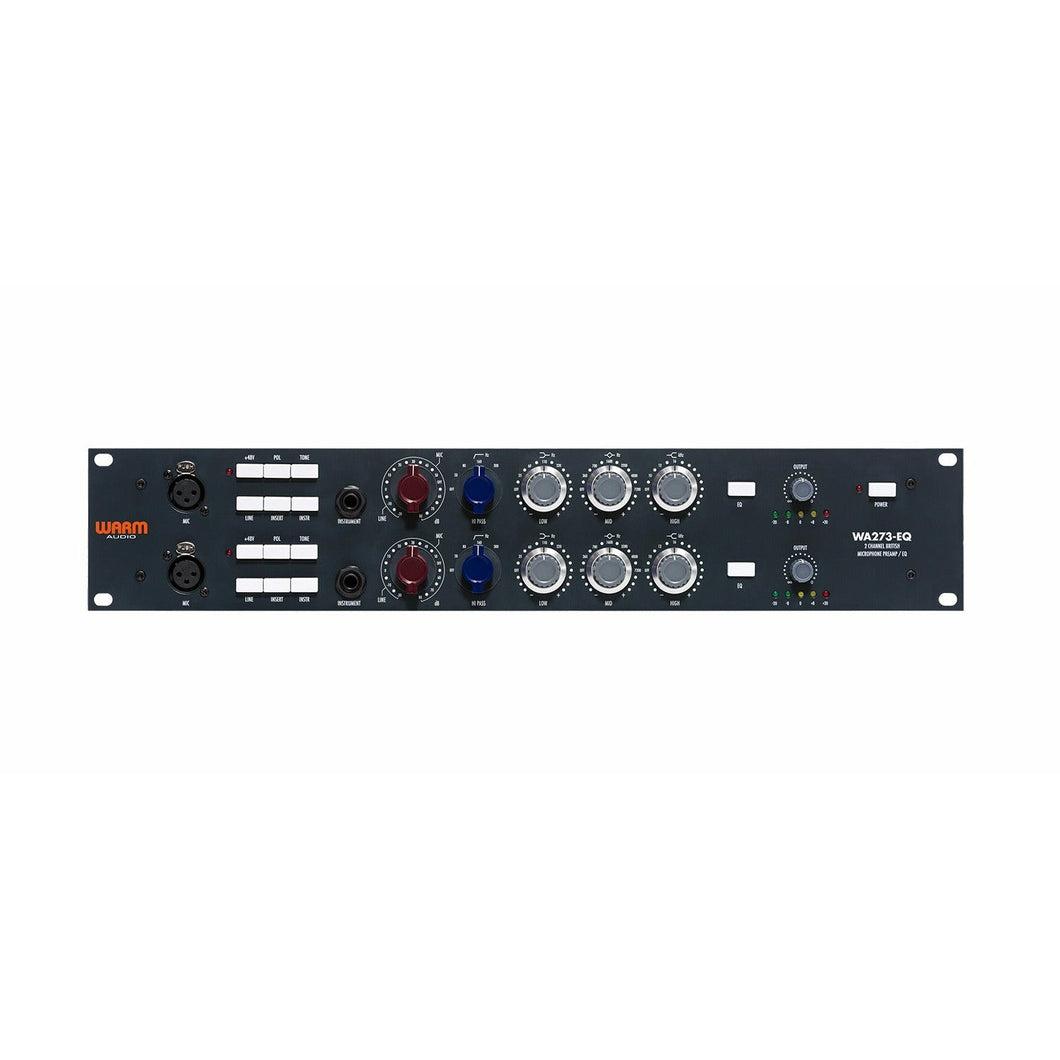

2-Kanal klass A Brittisk style 1073 Preamp och EQ.



The WA273-EQ is a “Desert Island” boutique preamp, but it can also be classified as a studio and live work-horse. Classic '73-style preamps are known for being versatile tools that work with all kinds of microphones from Condenser, to Dynamic, to Ribbon. The WA273-EQ equally shines on all types of microphones and sources including; vocals, acoustic/electric guitars, bass, drums, percussion, orchestras, keyboards, and even as a tone shaping tool to run partial or complete mixes through. With 80dB of gain and a fully discrete Carnhill Transformer balanced signal path, there’s no recording, mixing or engineering task that the WA273-EQ can’t handle.



UK Custom Carnhill Transformers Enthusiasts unequivocally get excited about the components used in classic '73-style British preamps. The signal transformers are a common topic of conversation. Vintage units used various versions of transformers throughout the years, but the most coveted were the earliest versions. These are regarded as the most desirable choice due to their fluid and forgiving nature. They saturate sweetly when pushed, and have been known to make engineers cry when they hear how beautiful their mixes sound through them!

Warm Audio worked closely with Carnhill Transformers of Cambridgeshire, UK, to design faithful reproductions of these most coveted, early version transformers. We at Warm Audio have not yet heard a modern day '73-style preamp sound as sweet and musical as does our WA273-EQ with these beautiful custom Transformers.



Technical Specifications

DUAL CHANNEL, CLASS A, '73-STYLE BRITISH MICROPHONE PREAMP WITH EQ
UK MADE CARNHILL TRANSFORMERS

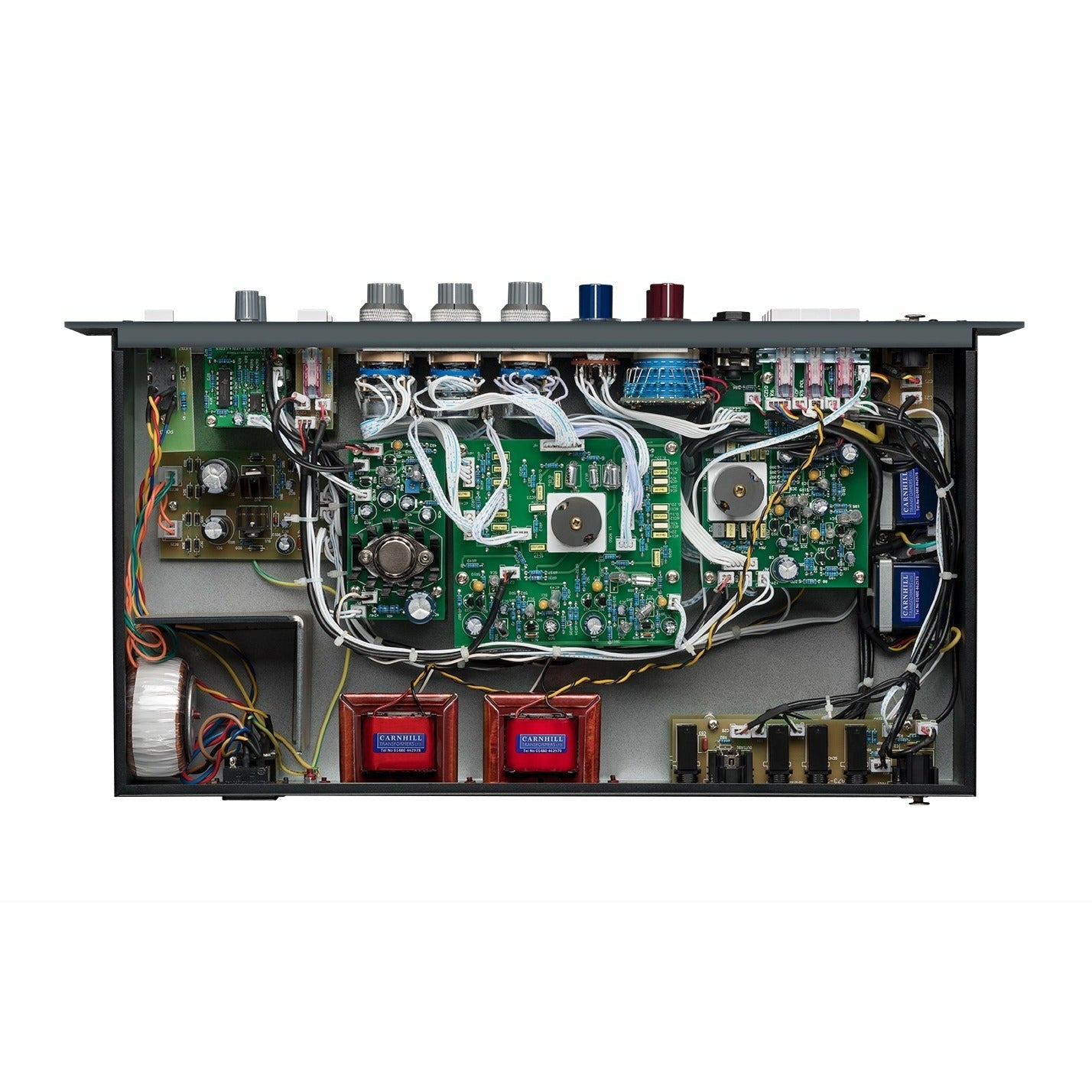

UK MADE - BLORE EDWARDS EQ DUAL-CONCENTRIC SWITCH POTENTIOMETERS HAND WIRED, HAND ASSEMBLED
80DB OF GAIN - RESISTOR STEPPED GAIN SWITCH
FULLY DISCRETE
TONE BUTTON - CHANGES INPUT TRANSFORMER IMPEDANCE FOR VARYING TONE POLARITY SWITCH
48V PHANTOM POWER
LOW BAND BOOST/CUT - 35, 60, 110, 220 HZ
MID BAND BOOST/CUT - 360, 700, 1600, 3200, 4800, 7200 HZ
HIGH BAND BOOST/CUT - 10, 12, 16 KHZ
ADDITIONAL HIGH BAND FREQUENCY EQ POINTS ADDED (COMPARED TO VINTAGE 1073)
4 POSITION INDUCTOR BASED HIPASS FILTER - 50, 80, 160, 300 HZ

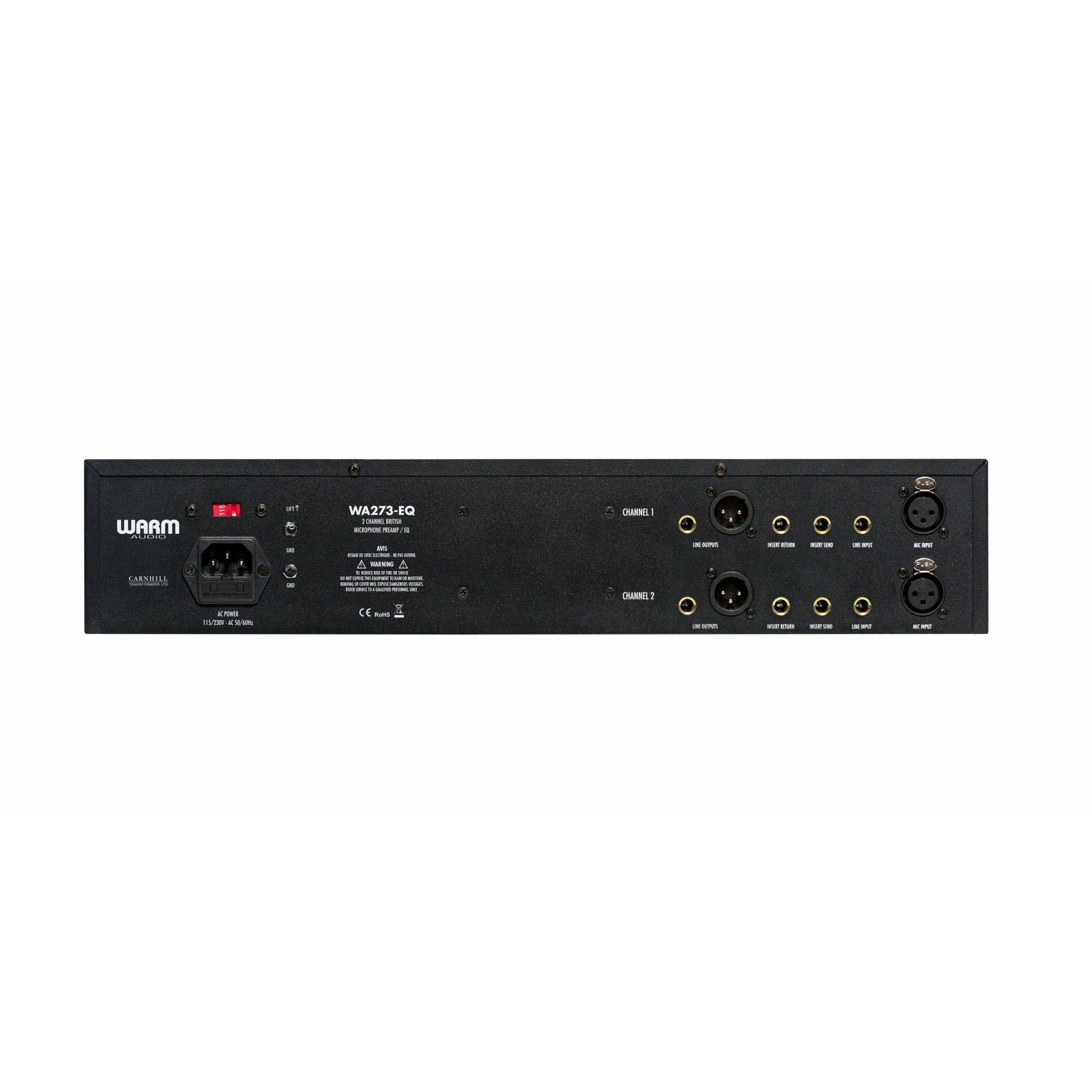

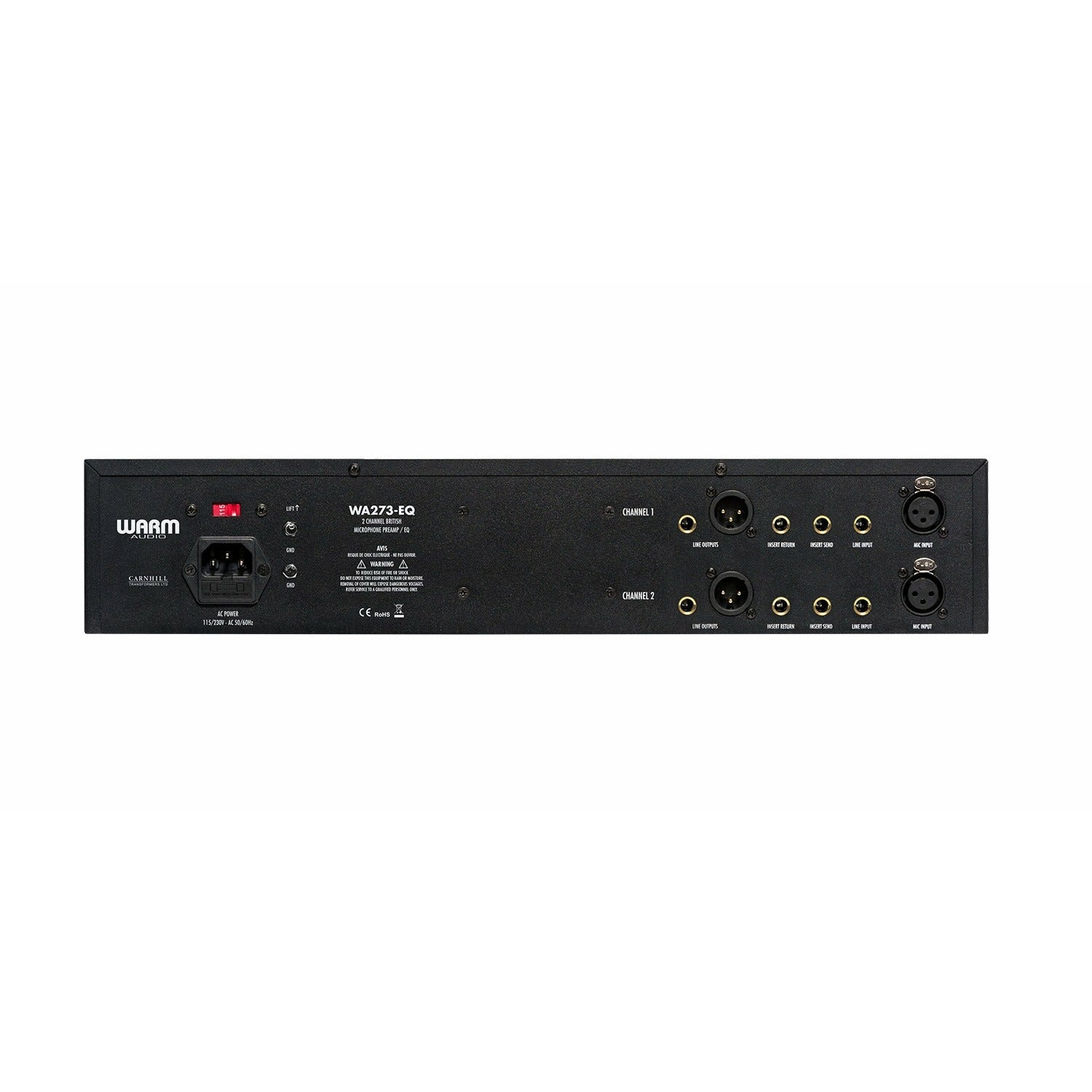

XLR MIC INPUTS (FRONT & BACK)
LINE LEVEL TRS INPUT
TS SEND/RECEIVE INSERT JACKS
XLR & TRS LINE LEVEL OUTPUTS
DIRECT IN, INSTRUMENT INPUT
OUTPUT CONTROL
LED LEVEL INDICATION
FREQ RESPONSE 20HZ - 20KHZ +/-.5 DB
19" RACKMOUNTABLE
INTERNAL IEC 115V/230V POWER INLET
