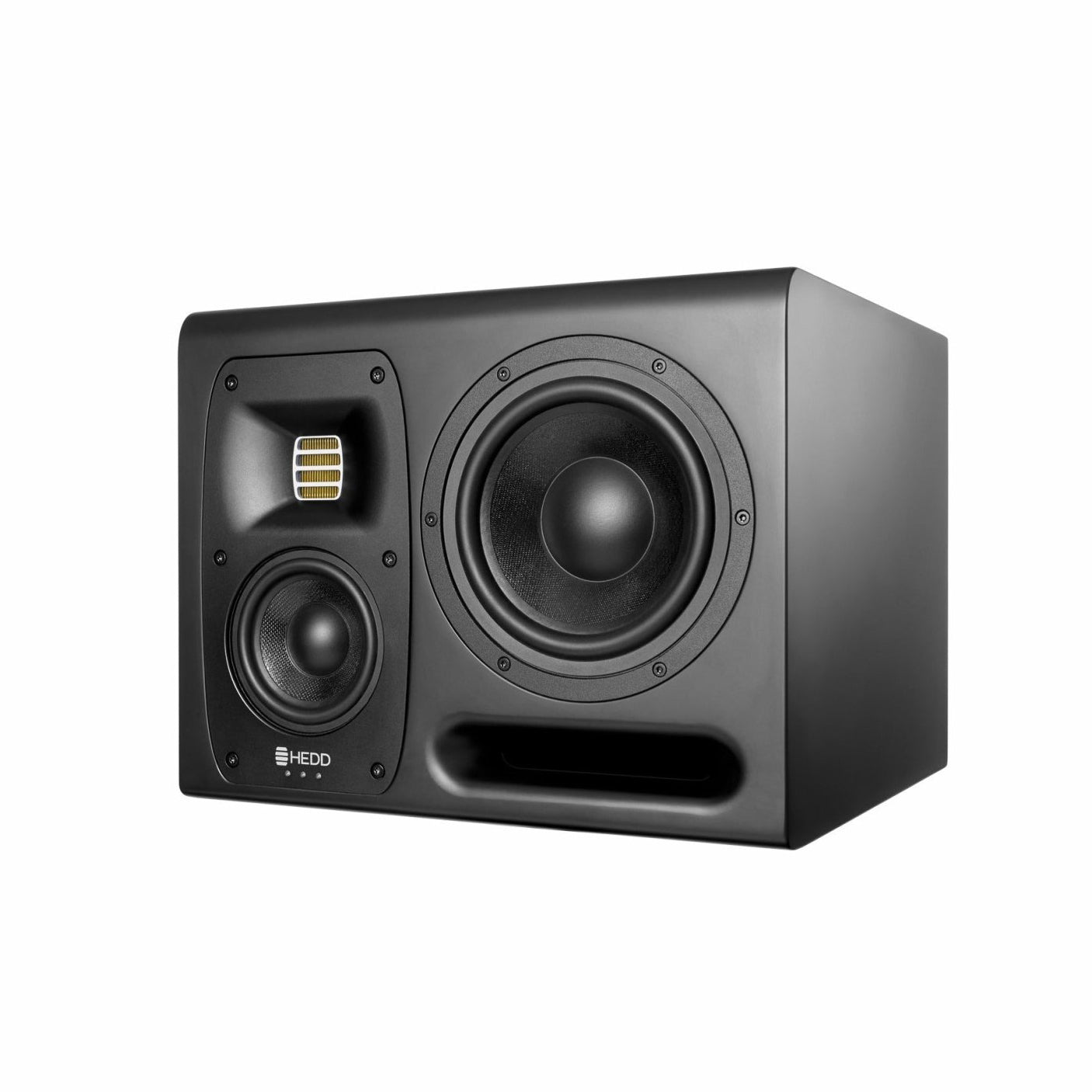

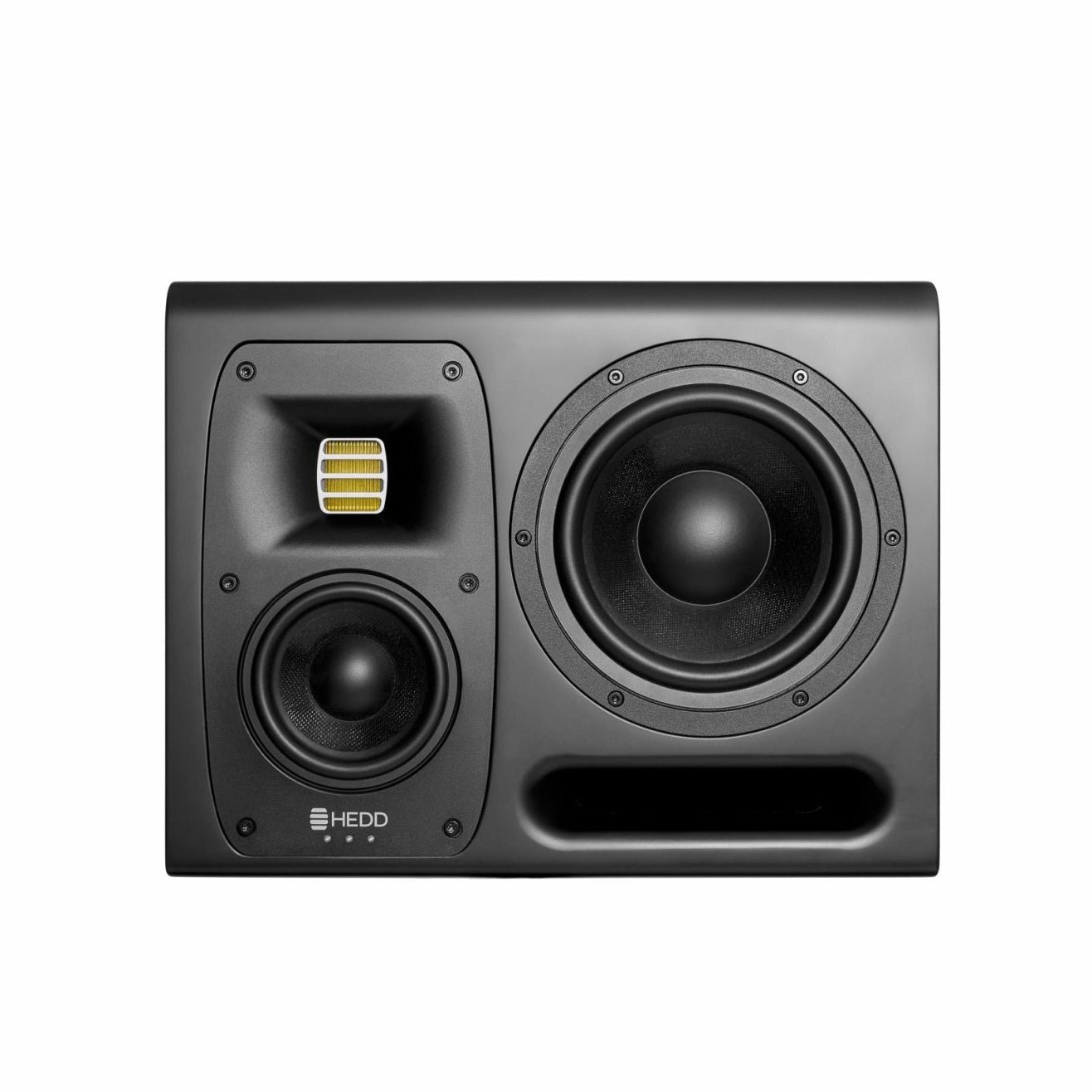

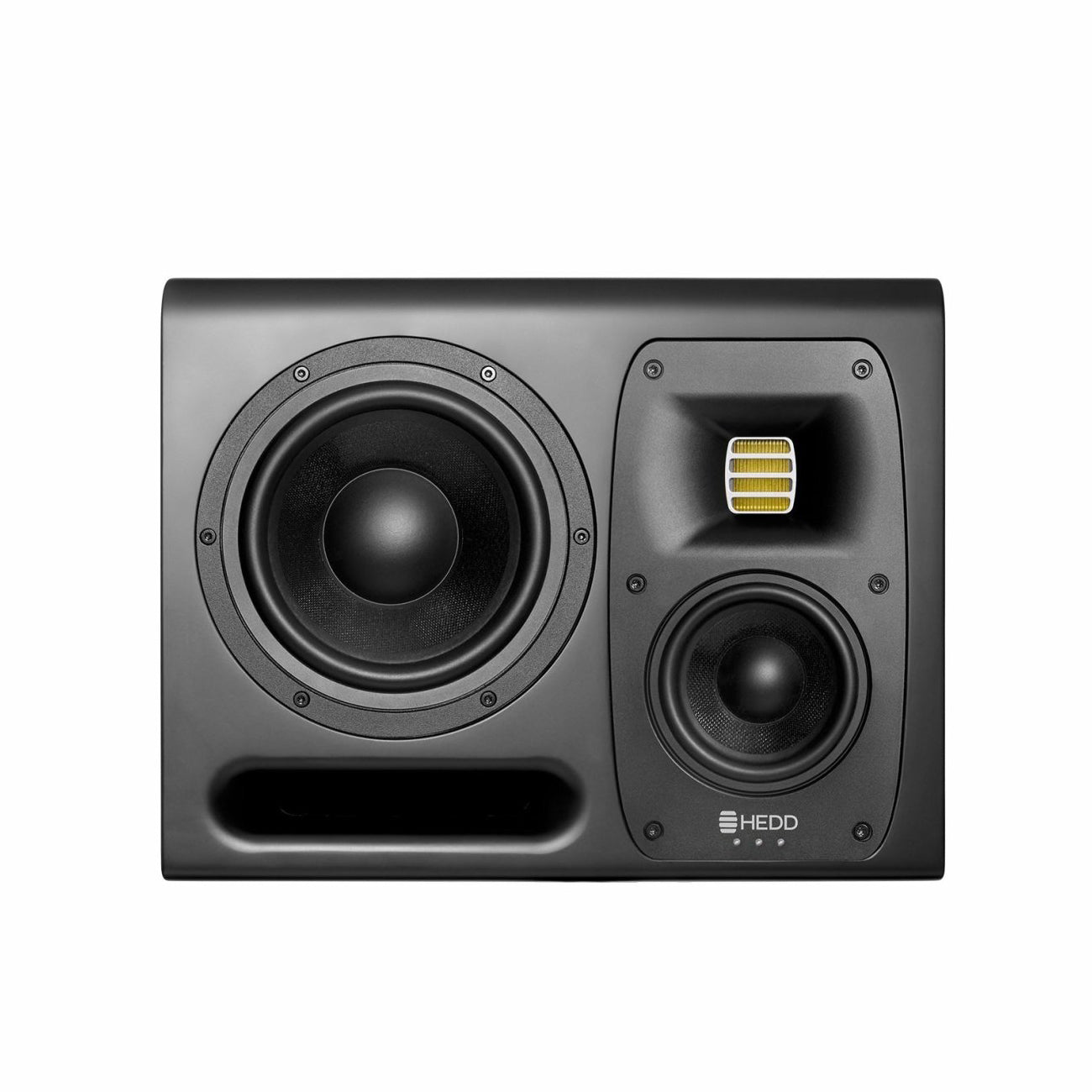

Iconic compact 3-way active monitor with DSP With 7" woofers, a dedicated 4" driver for the midrange, and HEDD's very own high definition Air Motion Transformer (HEDD AMT), this compact and uber-flexible 3-way system offers plenty of power, dynamics, and openness even at very high levels.
It can be used in the near- and midfield and is suitable for literally every thinkable studio challenge, may it be mixing, producing, the fine art of recording or in depth mastering. Just like the other MK2 models, the TYPE 20 MK2 is a powerhouse of innovation:
A powerful SHARC-DSP enables the onboard Lineariser® to completely flatten the speaker phase and create a fascinating stereo image and depth.
In addition, the speaker supports our latest Closed or Ported (CoP) technology. You can choose between two distinct sound options: For experiencing the maximum in accuracy and detail insert the customized foam plugs into the bass port and choose the Closed-mode.
For the ability to run the speakers at higher volumes and maintain energy and access to low bass, „Open“ (no plugs) is the way to go.
Other great features include 3 distinct Desktop filters, 2 Shelving filters to further adapt the speakers to your room, and a Bass-Extension mode that lets you access even lower frequency areas (at the cost of some SPL).
All the controls of the new line can be accessed via stepped aluminum potentiometers. The TYPE 20 MK2 is available in black and white!
Main Features HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters
DSP Integration Custom high-resolution 96 kHz / 32 Bit AD / DA converter
Drivers 3-Way: Proprietary 7'' and 4'' Honeycomb Woofers, HEDD AMT Tweeter Power 3x300 W ICEpower amplification (85-264 V)
Crossovers 250 Hz / 3.200 Hz Frequency Range 32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)
Maximum SPL 120 dB SPL (sound pressure level) per pair at 1m

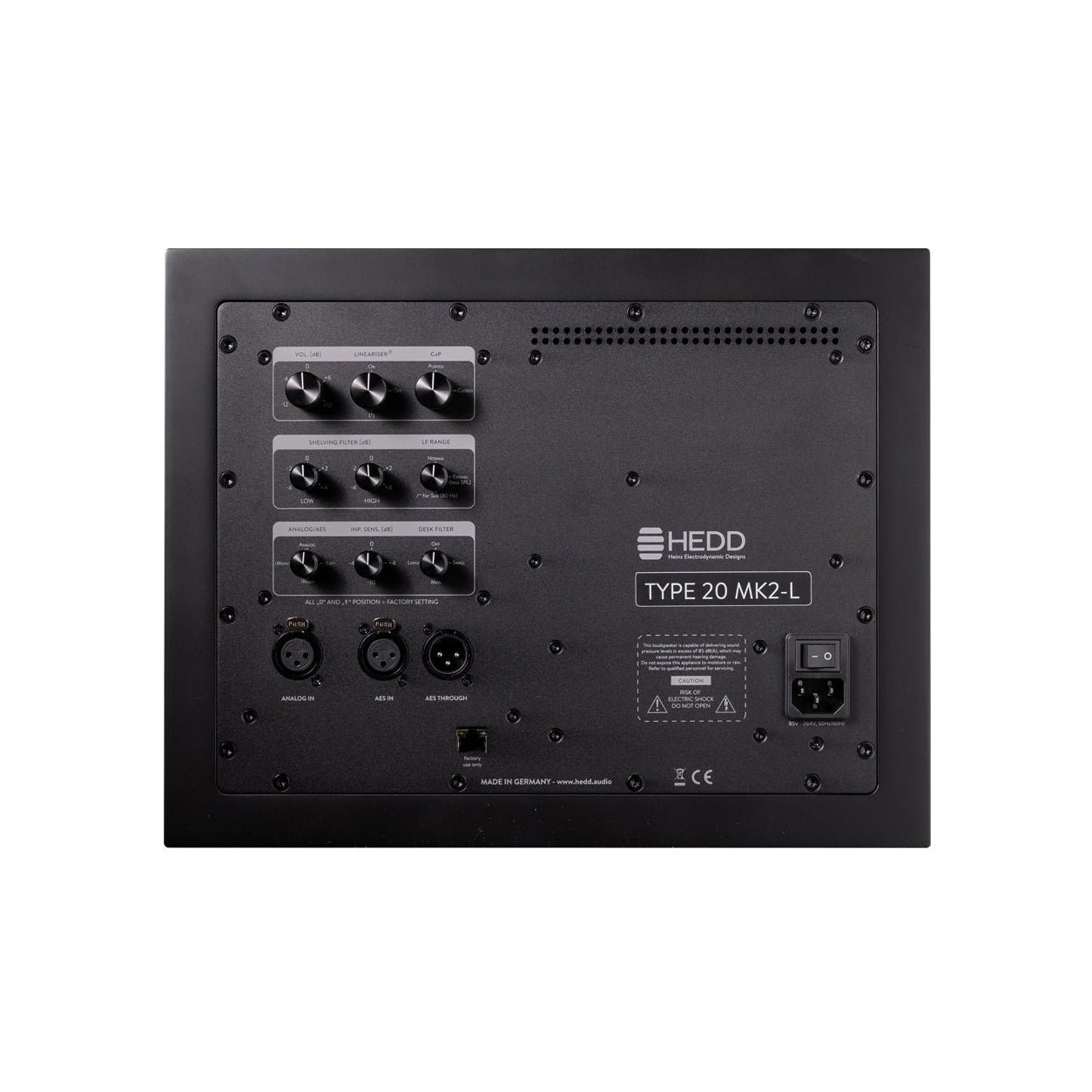

Inputs Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)
Output Digital AES pass-through via XLR
Dimensions and Weight 280 x 358 x 338 mm, 15.4 kg per unit
