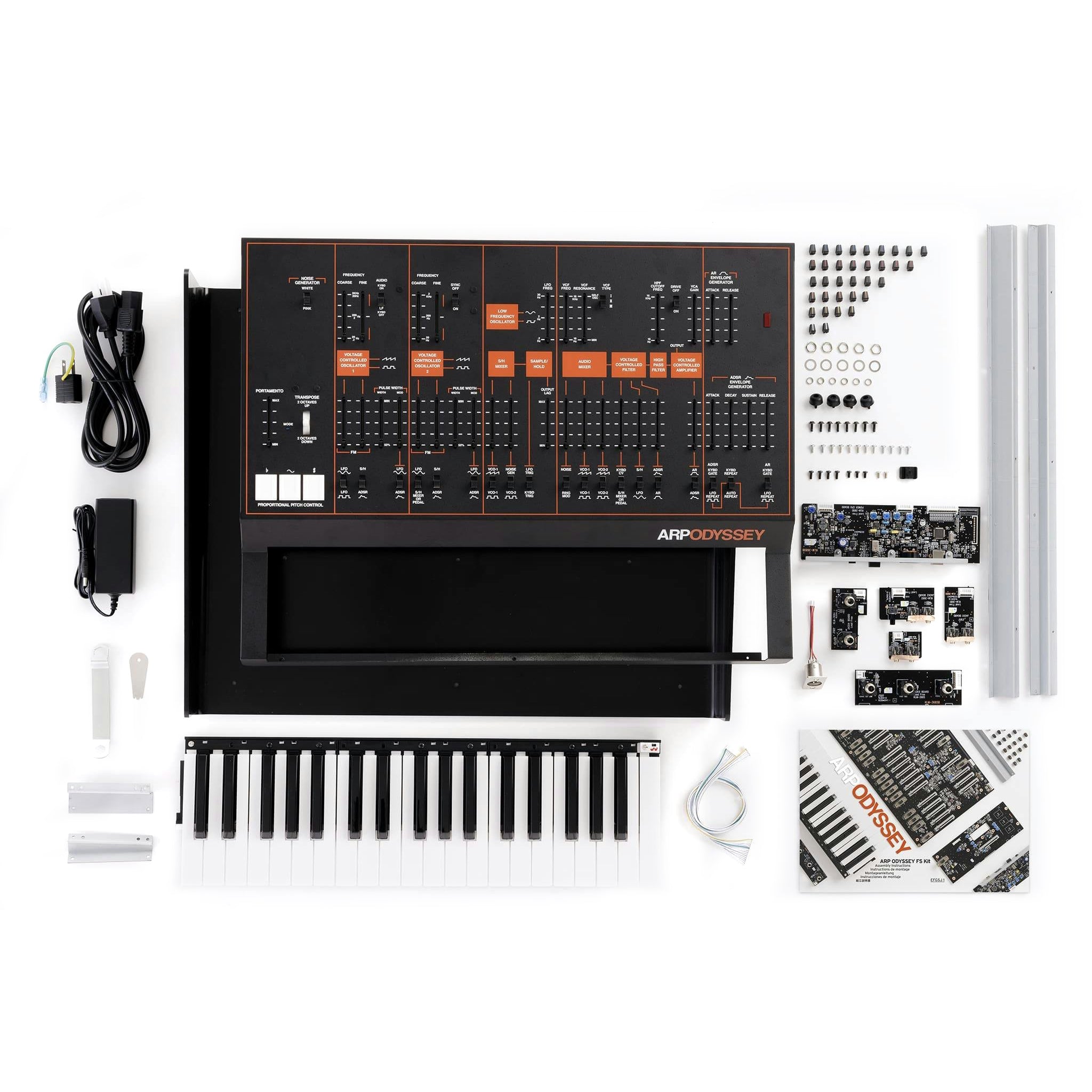

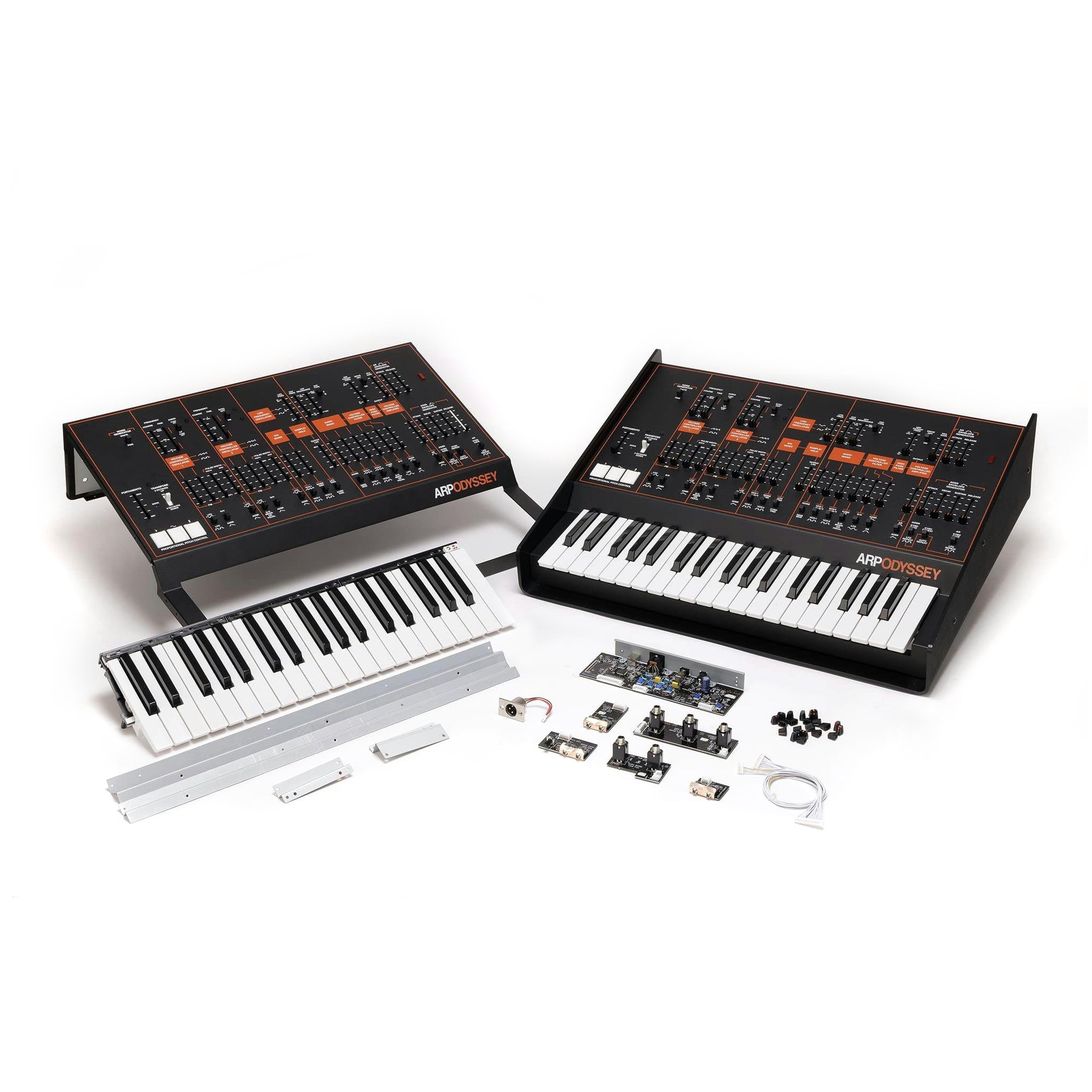

År 2015 hamnade ARP:s historia i rampljuset med återupplivandet av ARP Odyssey. Syntfans över hela världen var i extas – autentiska nyutgåvor av några av de mest ikoniska och legendariska ARP-syntarna skulle äntligen avslöjas. Från ARP ODYSSEY FS med sitt fullstora tangentbord, till den länge efterlängtade ARP 2600 FS och ARP 2600 M, stod ARP-syntar återigen i framkant av den moderna musikscenen. Nu, med lanseringen av ARP ODYSSEY FS Kit, får musiker möjlighet att själva ta del av ARP:s arv.
- Keyboard: 37-note (Standard key or Full size key, No velocity sensitivity, No aftertouch)
- Maximum Polyphony: 2 voices for duophonic; normally monophonic
- Transpose Positions: 2 octaves down, normal, 2 octave up
- Proportional Pitch Control: b (Pitch down) Pad: about -2 / 3 octave. - (Modulation) Pad. # (Pitch-up) Pad: about +2 / 3 octave
- Noise Generator: Noise Spectrum Types (white and pink)
- Portamento: Maximum Speed: about 0.01 msec./oct. Minimum Speed: about 1.5 sec./oct
VCO (Voltage Controlled Oscillator):
- Waveforms: Sawtooth, Square, Pluse (Dynamic Pluse)
- Frequency Range: VCO-1 in low freq. mode, 0.2 Hz – 20 Hz. VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
- Warm Up Drift: 1/30 semitone from turn on max
- Pulse Width: 50 % – 5 %
- Pulse Width Modulation: ADSR, +45 %. LFO, +15 %
- Voltage Controlled Response: 1 V/oct
- Maximum Frequency Shifts: LFO sin wave, +1/2 oct. LFO square wave, +1.5 oct. ADSR, +9 oct. S/H, +2 oct.
* VCO-1 is low note priority, VCO-2 is high note priority.
VCF (Voltage Controlled Filter)
- Types: Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
- Frequency Range: 16 Hz - 16 kHz
- Maximum Usable Q: 30
- Resonance: 1/2 - self oscillate
- Voltage Controlled Response: C3 key (left edge): 0 V. C6 key (right edge) 3 V
VCA (Voltage Controlled Amplifier)
- Dynamic Range: 80 dB
Ring Modulator:
- Type: Digital
Input Signal: VCO-1, VCO-2 (square wave)
Sample & Hold:
- Command Sources: Keyboard or LFO trigger
- Sampled Signals: VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
ADSR Envelope Generator:
- Attack Time: 5 msec. - 5 sec.
- Decay Time: 10 msec. - 8 sec.
- Sustain Level: 0 - 100 % or Peak
- Release Time: 15 msec. - 10 sec.
AR Envelope Generator:
- Attack Time: 5 msec. - 5 sec.
- Release Time: 10 msec. - 8 sec.

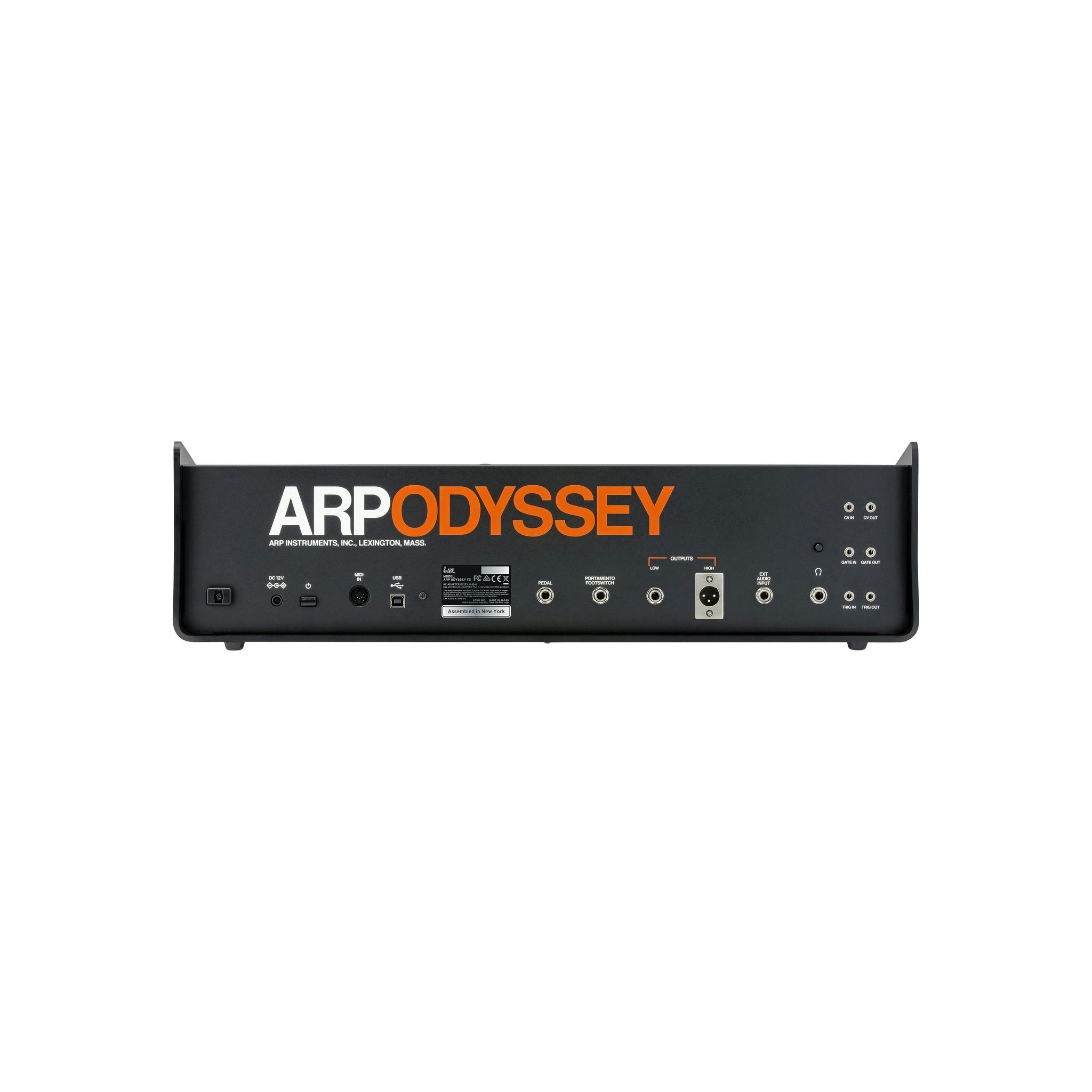

Control Input Jacks:
- Pedal: 6.3 mm monaural phone jack
- Portamento Foot Switch: 6.3 mm monaural phone jack
Audio Output Jacks Low:
- Connector: 6.3 mm monaural phone jack
- Maximum Output Level: -20 dBu@ 10 k ohm load
- Output Impedance: 10 k ohm
Audio Output Jacks High:
- Connector: XLR connector
- Maximum Output Level: +4 dBu@ 1 k ohm load
- Output Impedance: 330 ohm
Headphones Jack:
- Connector: 6.3 mm stereo phone jack
- Maximum Output Level: 50 mW + 50 mW@ 33 ohm load
- Output Impedance: 10 ohm Controllable by volume knob.
External Audio Input (Ext Audio Input) Jack:
- Connector: 6.3 mm monaural phone jack
- Maximum Input Level: -10 dBu
- Input Impedance: 22 k ohm
- MIDI Connector: IN
- USB Connector: Type B
CV in/out Jacks:
- Keyboard CV (IN/OUT): 1 V/oct.
- Connector: 3.5 mm monaural phone jack
Gate in/out Jacks:
- Gate in: +3 V (minimum)
- Gate out: +10 V, key down; 0 V all keys up
- Connector: 3.5 mm monaural phone jack
Trig in/out Jacks:
- Trig in: +3 V pulse min., 10 μsec. Duration minimum
- Trig out: +10 V pulse on key depression, 10 μsec. Duration
Connector: 3.5 mm monaural phone jack - Power Supply: AC adapter (DC 12V) + power cable
Power Consumption: 7.1 W - Dimensions (W x D x H): 585 x 466 x 163 mm
Weight: 7.3 kg - Included Items: AC adapter (DC 12V), power cable, phone cable, mini-phone cable
