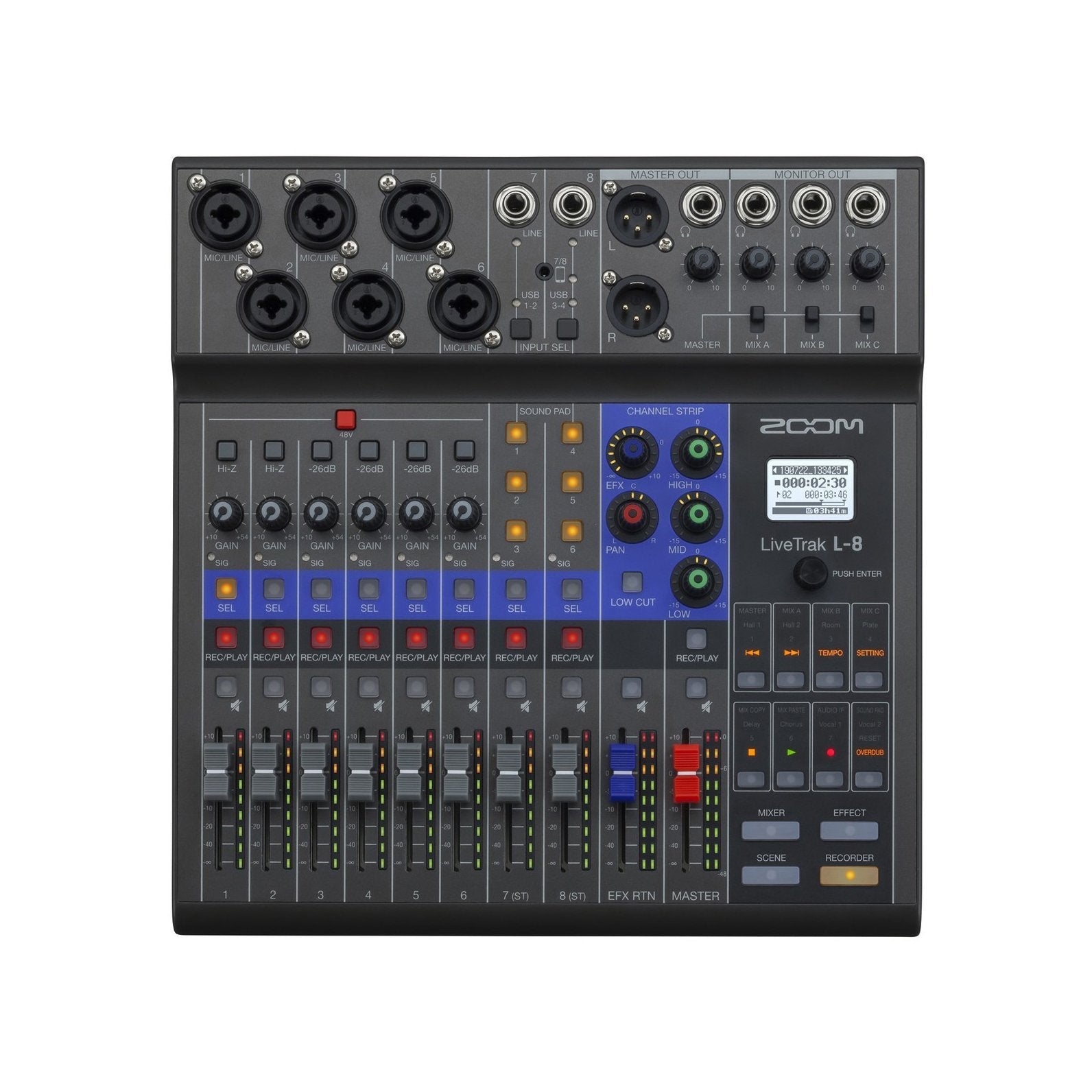

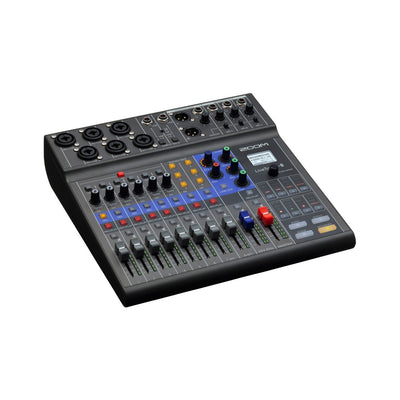

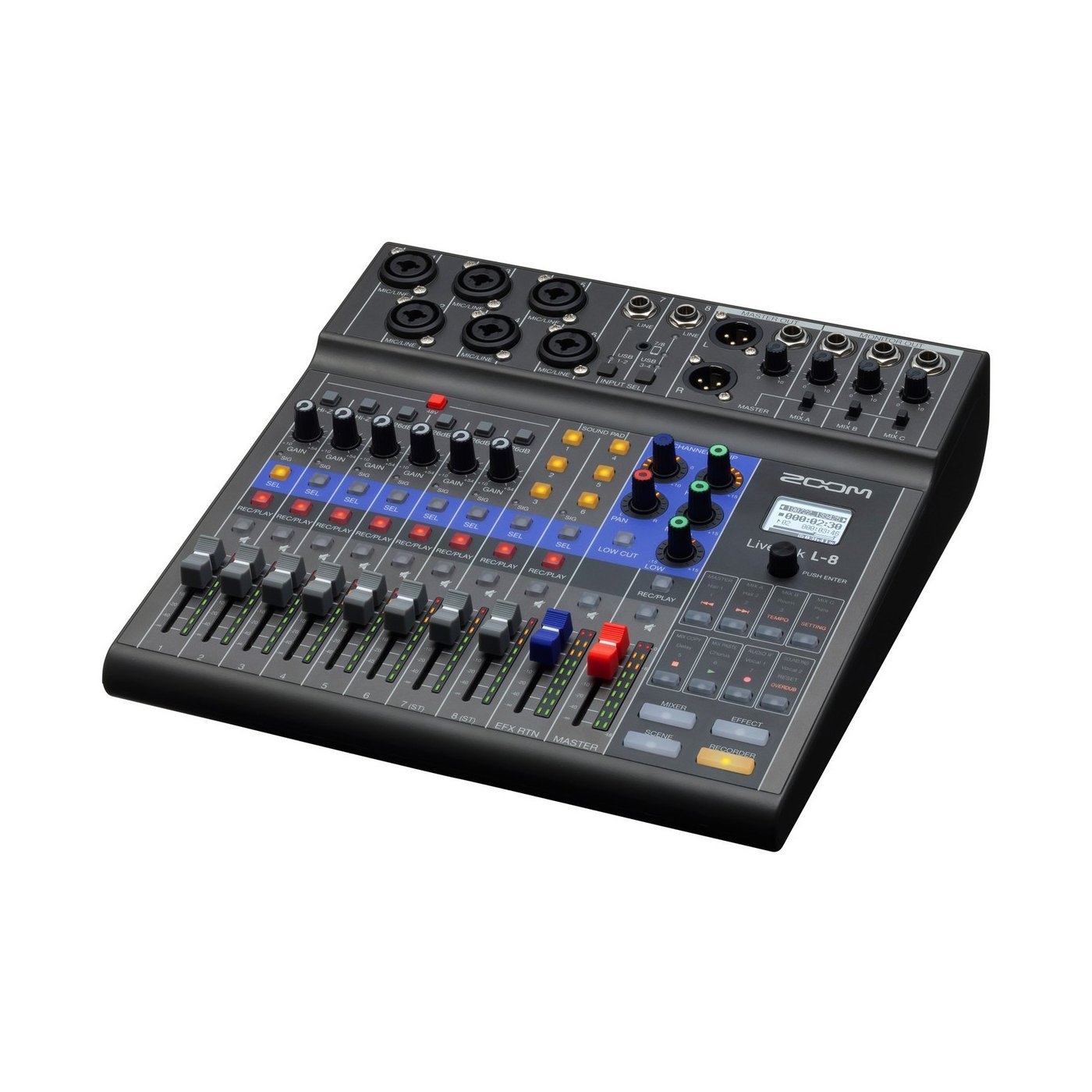

The Zoom LiveTrak L-8 makes it easier than ever to mix, listen and record a professional-sounding podcast. The podcast people are special and that includes Zoom. A number of special functions are required along with the flexibility of a standard mixer. The LiveTrak L-8 combines these two worlds in a way only Zoom can.
It only takes one press of a button to play intros, outros, jingles, commercials and sound effects. Six easily accessible Sound Pads give you the right sound with just the push of a button.
Telephone interviews are super easy with the L-8. Just plug in the phone via a TRRS cable. The mix-minus function stops automatic feedback and echo to and from the phone. Something that has previously been a big problem and caused many radio speakers trouble. Use the USB input for Skype, Facetime, hangout, slack, etc.
Zoom's preamps are famous and there is a reason for it. They are transparent, powerful and very reliable. The L-8 features six independent Zoom preamps that are built to handle everything from low whispers to heated political debates. The L-8 has 4 headphone jacks so everyone participating can listen and be heard.
- Digital live mixer
- Inputs: 6 Mic/Line (Line 2)
- Outputs: 1 master, monitor out 3
- Input type: XLR, TRS
- Line: TS phonejack, 10 kΩ input impedance +3 dBu max input level
- Smartphone connector: TRRS mini jack, 10 kΩ
- Buses: 1 master, 3 monitors, 1 send FX
- Low cut: 75 Hz
- EQ: High: 10 kHz, ±15 dB, Mid: 2.5 kHz, ±15 dB, Low: 100 Hz, ±15 dB
- Level meter: 9 segments
- Send effects: 8 types
- Recorder: 12 tracks 44.1/48/96 kHz
- Playback tracks: 10 pcs
- Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
- Audio interface: 12 channels, playback: 4 pcs, 24-bit, USB 2.0
- USB 3.0 or 2.0
- Card reader: Mass Storage USB 2.0 High Speed
- Sampling frequency: 44.1/48/96 kHz
- Frequency response: 20 Hz - 20 kHz: -1 dB 44.1 kHz, 20 Hz -40 kHz: -3 dB 96 kHz
- Display LCD (96x64)
- Power consumption:: 5W
- Dimensions: 268mm x 282mm x 74mm
- Weight: 1.56kg
