PURE 2 Mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock

Not in stock. Delivery time approximately 10 days

DIGITAL CLARITY, ANALOG WARMTH

Pure2 is a high-end mastering converter, powered by Antelope Audio's legendary clocking and pristine analog circuitry
Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio's world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.

A/D CONVERSION
Improved overload handling for smoother clipping and analog warmth, handled by PCM4222

D/A CONVERSION
Dual DAC architecture for enhanced stereo imaging and signal-to-noise ratio

64-BIT MASTER CLOCKING
Sharp conversion timing via 4th gen AFC jitter management technology

HIGH-END D/A
Dedicated D/A converter for greater convenience, allows monitoring a secondary source

TRANSPARENT ANALOGUE MONITORING
A -1dB stepped relay attenuator with 0.05dB precision and full bypass option

SOFTWARE CONTROL
Super intuitive OS X & Windows compatible software panel

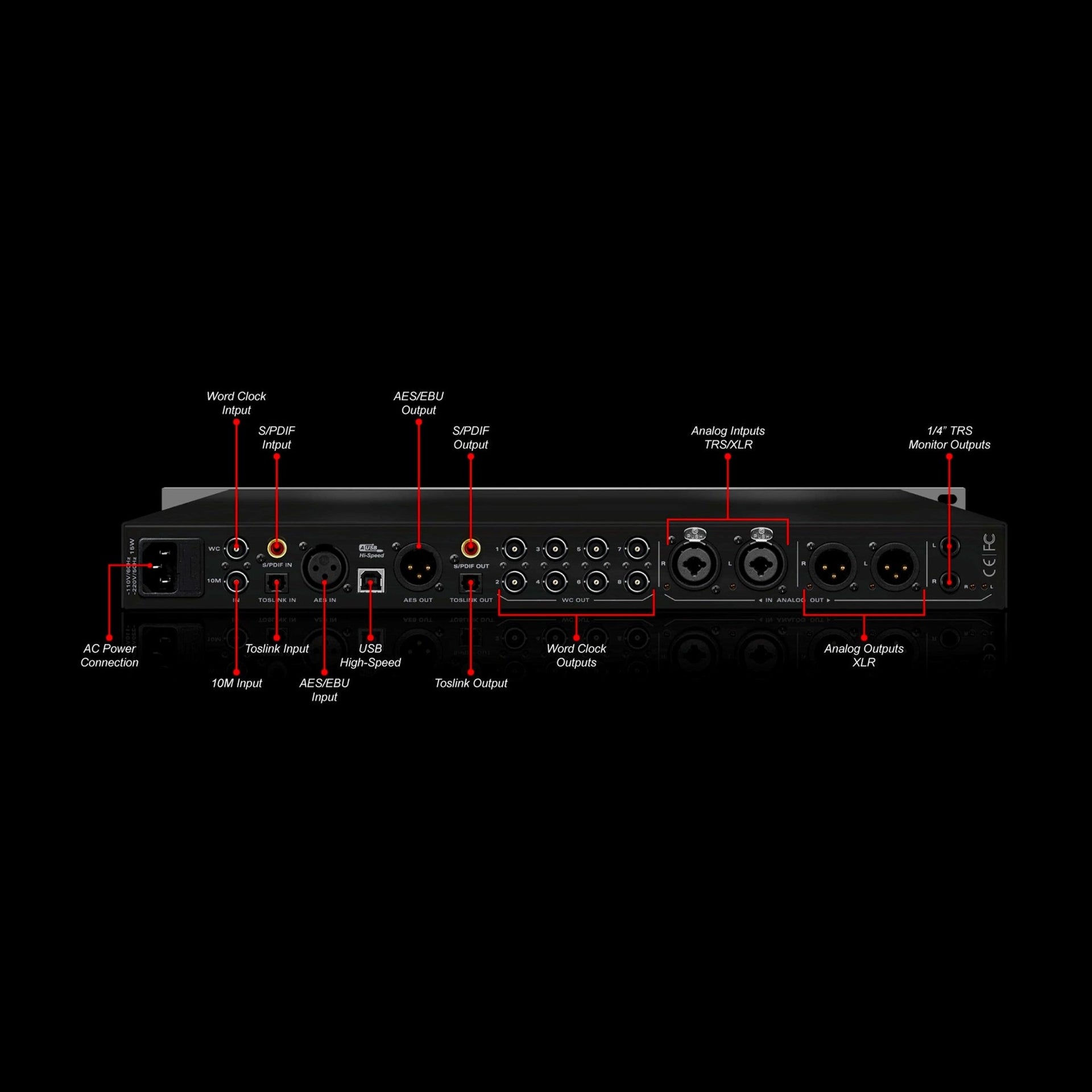

Analog Inputs
2 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu

Digital Inputs
1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated 1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated 1 x TOSLINK on optical fiber: up to 96kHz

Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Analog Outputs
1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu 1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS) 1 x 1/4 TRS Front Headphones 20dBu

Digital Outputs

• 1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
• 1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
• 1 x TOSLINK on optical fiber: up to 96kHz

Word Clock Outputs

• 8 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

USB I/O

• USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz,
• 4 channels I/O for playback and 2 channels I/O for record, Type B

External Reference Clock

• 1x 10M Atomic Clock Input @ 75 Ohms 1Vpp on BNC
• 1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

A/D Converter
Dynamic Range: 122dB THD+N: -105dB

D/A Converters

• Main DAC Dynamic Range 127dB; THD+N -107dB
• Monitor DAC Dynamic Range 120dB; THD+N -103dB
• Headphones DAC Dynamic Range 120dB; THD+N -100dB

Atomic Clock Input
10MHz @ 1Vpp, BNC

Sample Rates
(kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192
