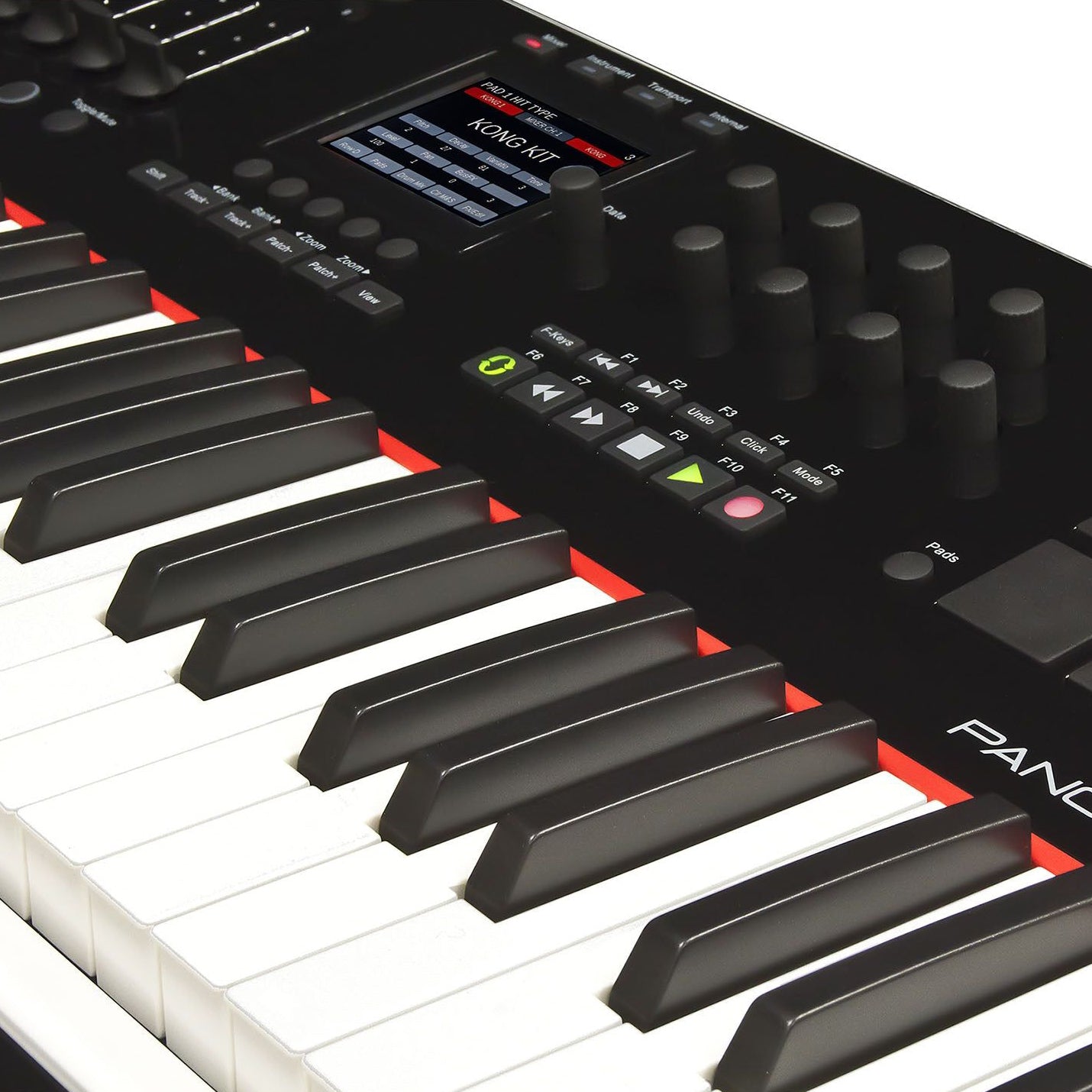

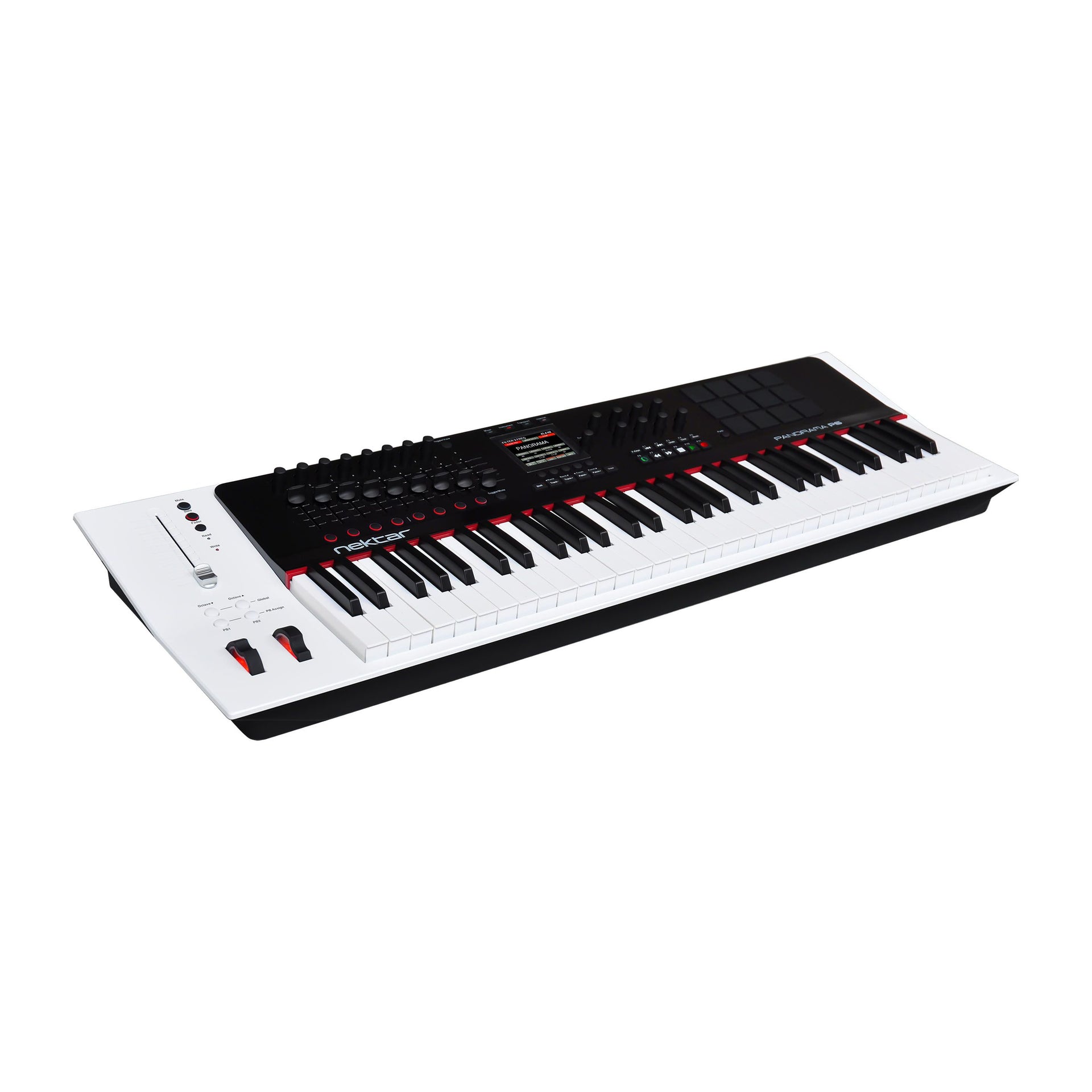

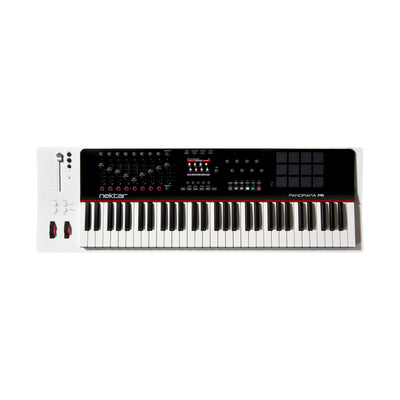

Panorama P6

61-key DAW controller with 16 control knobs, 9 faders, 11 transport buttons, 12 pads and 3.5" color display.

The Panorama P4 is both a MIDI keyboard and DAW controller. It is compatible with Bitwig Studio, Garage Band, Cubase, Nuendo, Logic Pro x, Reaper and Reason. The 61 keys are semi-weighted with after touch and the pads have 7 pcs. sensitivity levels. The P4 is also equipped with a crystal clear, centrally located 3.5" TFT display and gives you all the information you need when using the controller.

Keyboard:

• 61 note weighted (semi-) velocity-sensitive keyboard w/aftertouch
• 5 velocity curves plus fixed
• Pitch bend and modulation assignable wheels
• Octave shift buttons
• PB1/2 buttons
• 4 keyboard zones programmable with controller filters and program changes
• 5 keyboard maps store all settings

Preset controls:

• 16 encoders
• 9 45mm faders
• 10 assignable LED buttons
• 11 dedicated transport buttons
• 20 preset locations store all settings including links to F-keys maps

Pads:

• 12 pads with velocity and pressure sensitivity
• 7 velocity curves
• Note-learn
• Scale mode with 30+ scales and interval setting
• Velocity spread functions spread the selected pad assignment over all 12 pads, at different velocity levels
• Transpose and Octave shift in both pad-map and scale mode
• Pads are freely assignable in Reason mode
• Load or Save to any of the 20 pad maps

F keys:

• 11 assignable Function Keys (accessible using shift and transport keys)
• Load or Save to any of the 10 F-Keys maps
• F-Keys are assignable even in 3 Reason modes

Extra keys:

• 100 mm ALPS motorized fader
• 6 dedicated assignable navigation buttons
• ASCII/QWERTY macros assignable to buttons and pads
• 3.5" high-resolution TFT display provides incredible navigation and user visibility
• Nektar DAW Integration
• Presets and setup files for major DAWs and VIs

Connections:

• Foot switch (sustain) 1/4" jack input (pedal not included)
• Expression pedal 1/4" jack input (pedal not included)

MIDI output:

• USB port for communication with computer
• USB Micro B connector for extra and external power

System requirements:

• Apple iOS
• Apple OSX
• Windows XP, or higher
• Linux (MIDI driver software required)

Nektar DAW integration:

• Mac OS X 10.7 or higher
• Windows Vista, 7 and 8 or higher

Weight & dimensions:

• 100 (L) x 33 (D) 9.5 (H) cm
• 7.7 kg
