Store copy in good condition of an older model.
Support for the following operating systems
Lexicon IO FW810S for Mac OS X 10.8.5 - 10.10.1 (Intel Only) Note: This Lexicon IO driver is only compatible with Mountain Lion through Yosemite.
Lexicon IO FW810S for Mac OS X 10.4.x - 10.8 (Intel Only)
This Lexicon IO driver is not compatible with Mac OS X Mavericks or later.
Lexicon IO FW810S for Windows: XP (32 bit), Vista/Windows 7 (32 and 64 bit)
Full install with Owner's Manual PDF and drivers for Windows.
The Lexicon Ionix FW810S Firewire Audio Interface features dbx® high voltage, ultra-low noise microphone amplifiers and dbx dynamics on all 8 channels to give you extreme versatility and control over your sound.
The zero-latency mixer hardware gives you a smooth and responsive audio experience when mixing or mastering, while the increased headroom lets you capture subtle details in loud signals. The Lexicon Ionix FW810S Firewire audio interface takes up a single rack unit and makes an essential addition to your studio rack space.
- dbx® high-voltage, ultra low noise mic pre's on all 8 channels
- dbx dynamics (compressor, limiter, gate, EQ) on all 8 channels

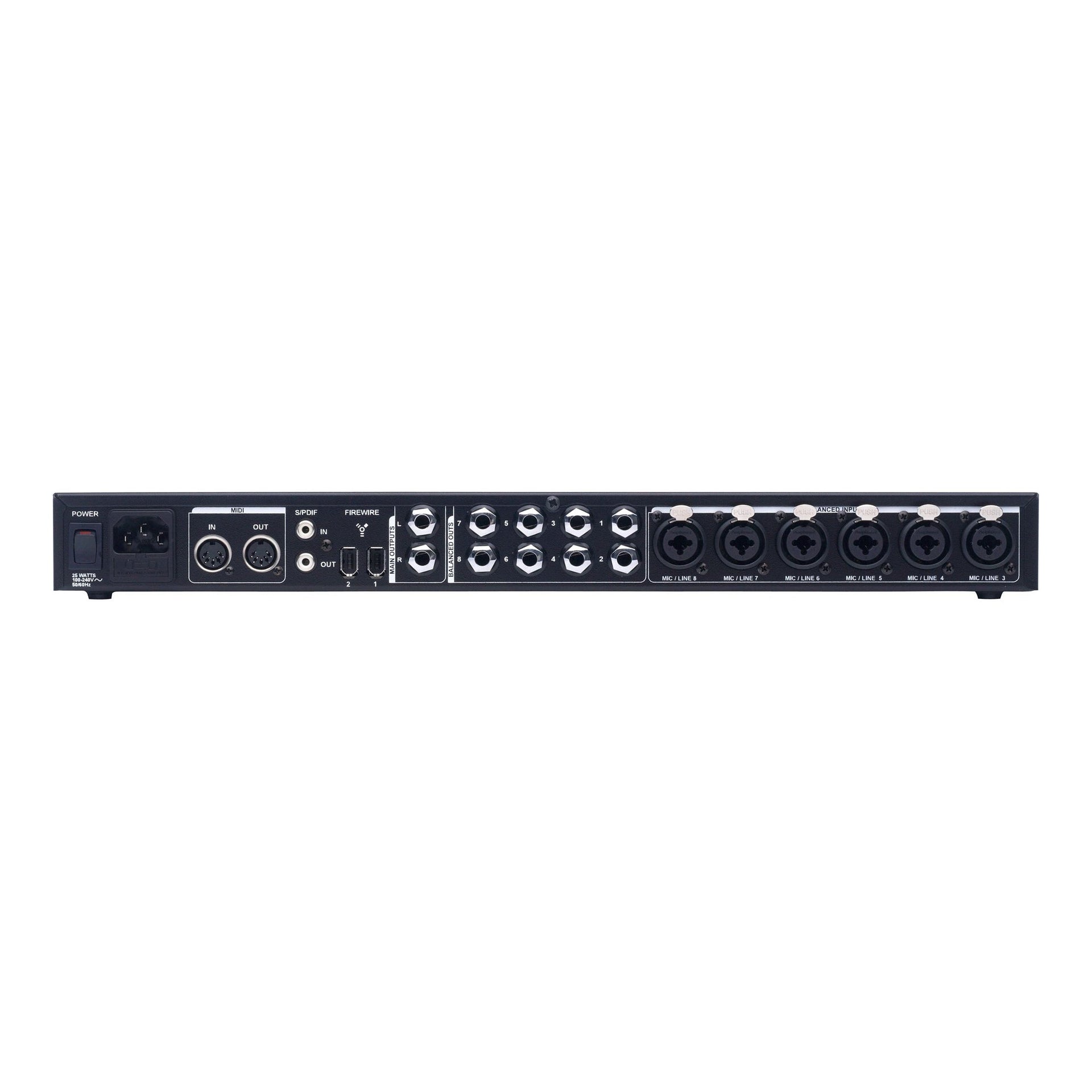

- 6 analog combi-jack inputs on the rear panel for mic/line inputs
- 2 front panel combi-jacks accept mic, line, or instrument signals
- Type IV conversion feature emulates tape saturation at high levels
- Zero latency mixer hardware UI with dbx dynamics and a hardware monitor reverb
- 44.1 to 96KHz sample rates, 24 bit processing
- 8 analog TRS outputs (7.1 surround capable) and stereo main (control room) outs
- Stereo S/PDIF digital I/O
- MIDI In and Out
- FireWire 400 connection to DAW
- Software suite includes Steinberg's Cubase LE 4, Toontrack EZ Drummer lite, and Lexicon Pantheon II reverb plug-in
- Low Latency drivers include Windows WDM with ASIO support along with Macintosh CoreAudio with ASIO support
- Microphone Inputs: Female XLR Pin 2 Hot
- Input Impedance: 3kΩ balanced
- Phantom Power: +48 Volts
- Maximum gain: +55 dB
- EIN (at max gain):
- −127 dB @ 55 dB gain typical (150W source)
- −130 dB @ 55 dB gain typical A-weighted (150W source)
- Maximum Input Level: +8 dBu
- Frequency Response: +/−1.5 dB, 20Hz - 20kHz
- THD+N:
- Line Inputs: 1/4” TRS balanced or unbalanced
- Input Impedance: 20kΩ balanced, 13kΩ unbalanced
- Maximum Input Level: +22 dBu
- Frequency Response: +/−1.5 dB, 20Hz - 20kHz
- THD+N:
- Instrument Input: 1/4” TS unbalanced
- Input Impedance: 500kΩ
- Maximum Input Level: +10 dBu
- Frequency Response: +/−2.5 dB, 20Hz - 20kHz
- THD+N:
- Line Outputs: 1/4” TRS balanced or unbalanced
- Level: -+20 dBu maximum
- Impedance: 32Ω Balanced, 16Ω Unbalanced
- Headphone Output: 1/4” stereo jack 250mW per channel at 50Ω
- MIDI Interface: 5 pin DIN connectors for MIDI in and MIDI out
- Sample Rate: 44.1, 48, 88.2, or 96 kHz (determined by computer application)
- Dynamic Range:
- A/D (24 Bit) 110 dB typical, A-weighted, 20Hz - 20kHz
- D/A (24 Bit) 110 dB typical, A-weighted, 20Hz - 20kHz
- A/D/A (24 Bit) 108 dB typical, A-weighted, 20Hz - 20kHz
- Power Requirements: 100 – 240 VAC, 50/60 Hz, 30 Watts
- Dimensions: 19”W x 1.75”H x 10.5”D
- Weight: 7.7 lbs.
