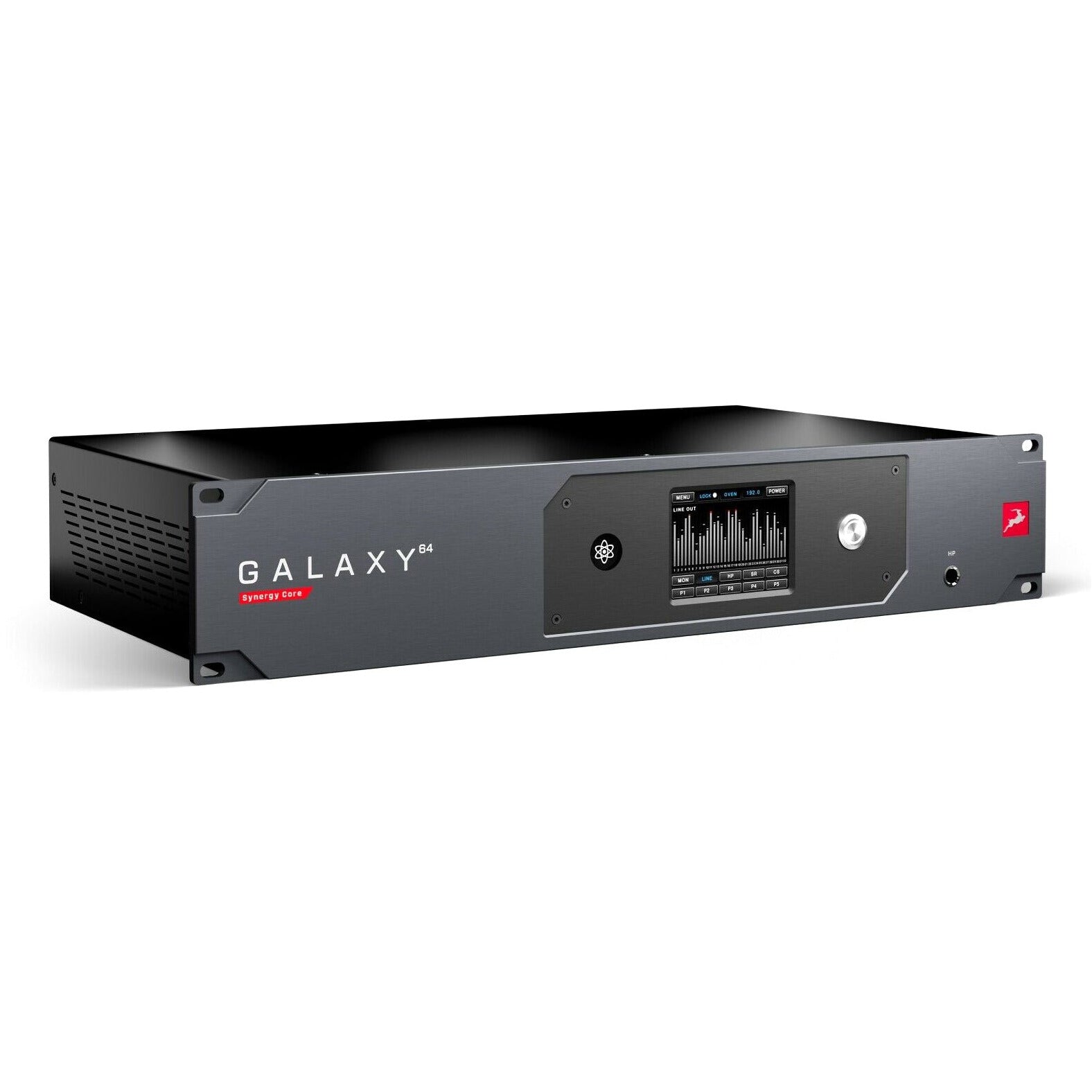

Galaxy 64 Synergy Core
Not in stock. Delivery time approximately 10 days
64 Channels of analog audio. Dante & HDX connectivity. One device.
Galaxy 64 Synergy Core is a high-end recording system that connects your entire studio within a 2U rack space while providing high-fidelity audio and onboard effects processing for your most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world's first 64-channel AD/DA converter offers unbeatable flexibility when moving sound around your high-profile production facility, live stage, broadcast, or other enterprise applications.
Integration: More streamlined workflow, less clutter
The interface is designed to be the hub of your entire recording environment which eliminates the need for any expansion modules and cards, thus centralizing your entire setup. Switching from project to project is effortless with the fast recall of presets and adapting to different workflows is made easier by allowing you to address numerous applications using a single hardware frame.
Connectivity: World's first 64-channel AD/DA converter in 2U rack space
Galaxy 64 Synergy Core is the only interface to offer two Dante ports for audio networking, four HDX ports for a full array of 128 channels in Pro Tools as well as Thunderbolt connectivity. These features can be used simultaneously with multiple systems for easy adaptation to different workflows with preferred DAW applications. This is all made possible by utilizing our exclusive FPGA configuration and advanced digital routing.

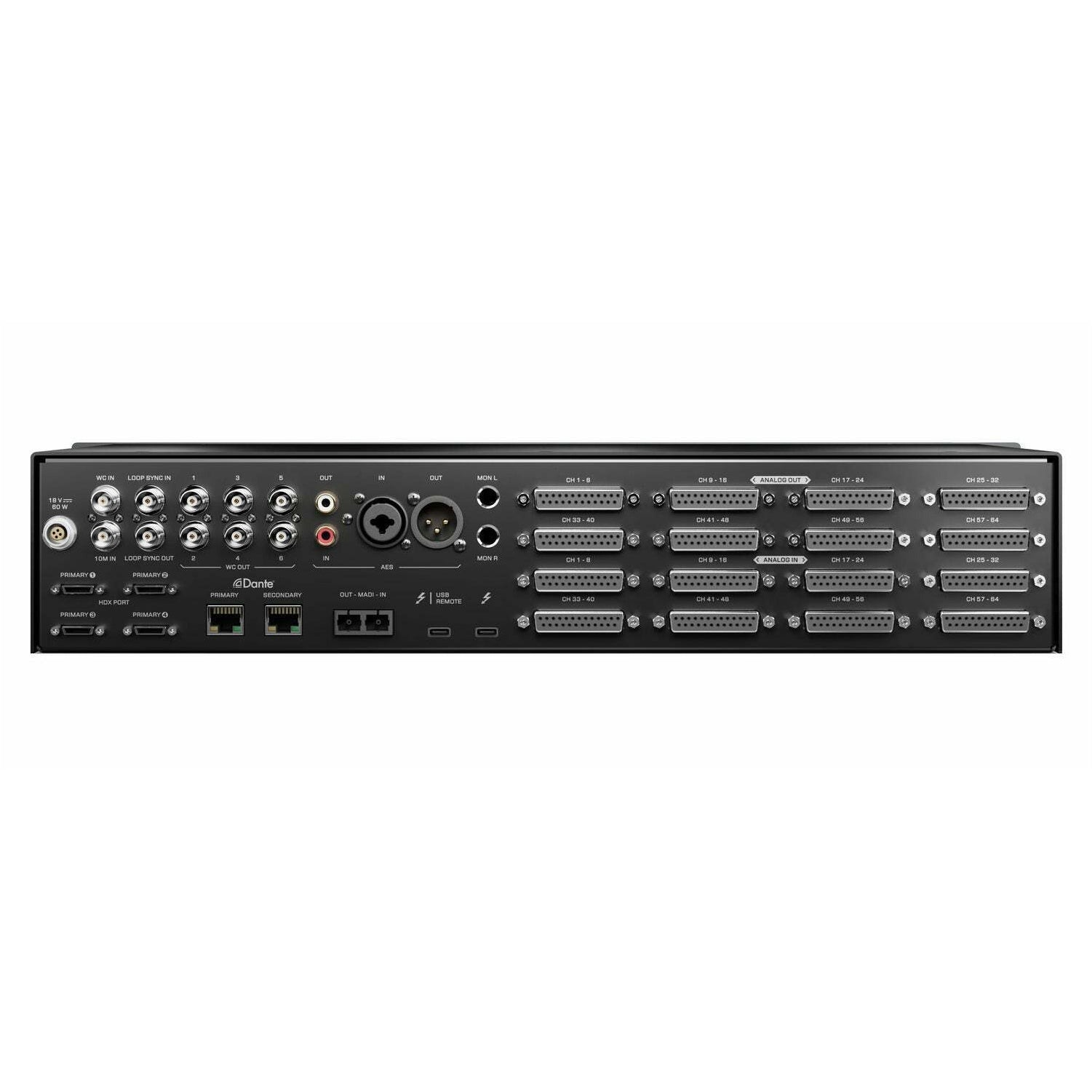

Analog
- 8x DB25 line inputs
- (64 channels at 24-bit, 192kHz)
- 64 analog input channels over 8 DSUB-25 connectors with AC/DC coupling switch (TASCAM standard)
- 8x DB25 line outputs
- (64 channels at 24-bit, 192kHz)
- 64 analog output channels over 8 DC-coupled D-Sub 25 connectors (TASCAM standard);
- 1× Stereo headphone output
- (24-bit, 192kHz) Stereo TRS jack for headphone monitoring with a D/A converter providing 122dB of headroom.
- 1× Stereo monitor output pair
- (2 channels at 24-bit, 192kHz)
- L/R studio speaker outputs on 1/4-inch
- TRS connectors with a dedicated converter providing 130dB of headroom
Digital
- 2x DANTE® Ports
- (64 channels at 24-bit, 48kHz)
- Primary and Secondary Dante® connections on RJ 45 (Ethernet) ports.
- The number of input and output audio channels is sample rate-dependent.
- 4x HDX Ports
- (128 channels at 24-bit, 192kHz)
- Four HDX ports enable interfacing to two HDX cards simultaneously for a primary/secondary recording setup or a full array of 128 channels
- 2x Thunderbolt 3™ Ports
- (64 channels at 24-bit, 192kHz)
- Two Thunderbolt 3 ports for PC/Mac connection.
- The left port enables USB-C connection to a secondary computer for remote control purposes.
- 2x Optical MADI Ports
- (64 channels at 24-bit, 48kHz)
- Should the need for more channels arise, use the MADI ports on optical SC connectors to daisy-chain with another audio interface.
- 2x AES/EBU Ports
- (2 channels at 24-bit, 192kHz)
- Two AES/EBU ports on XLR connectors for digital expansion to AD/DA converters or monitoring systems.
- 2x S/PDIF (input and output)
- (2 channels at 24-bit, 192kHz)
- Two S/PDIF ports RCA connectors for digital expansion to AD/DA converters or monitoring systems.
