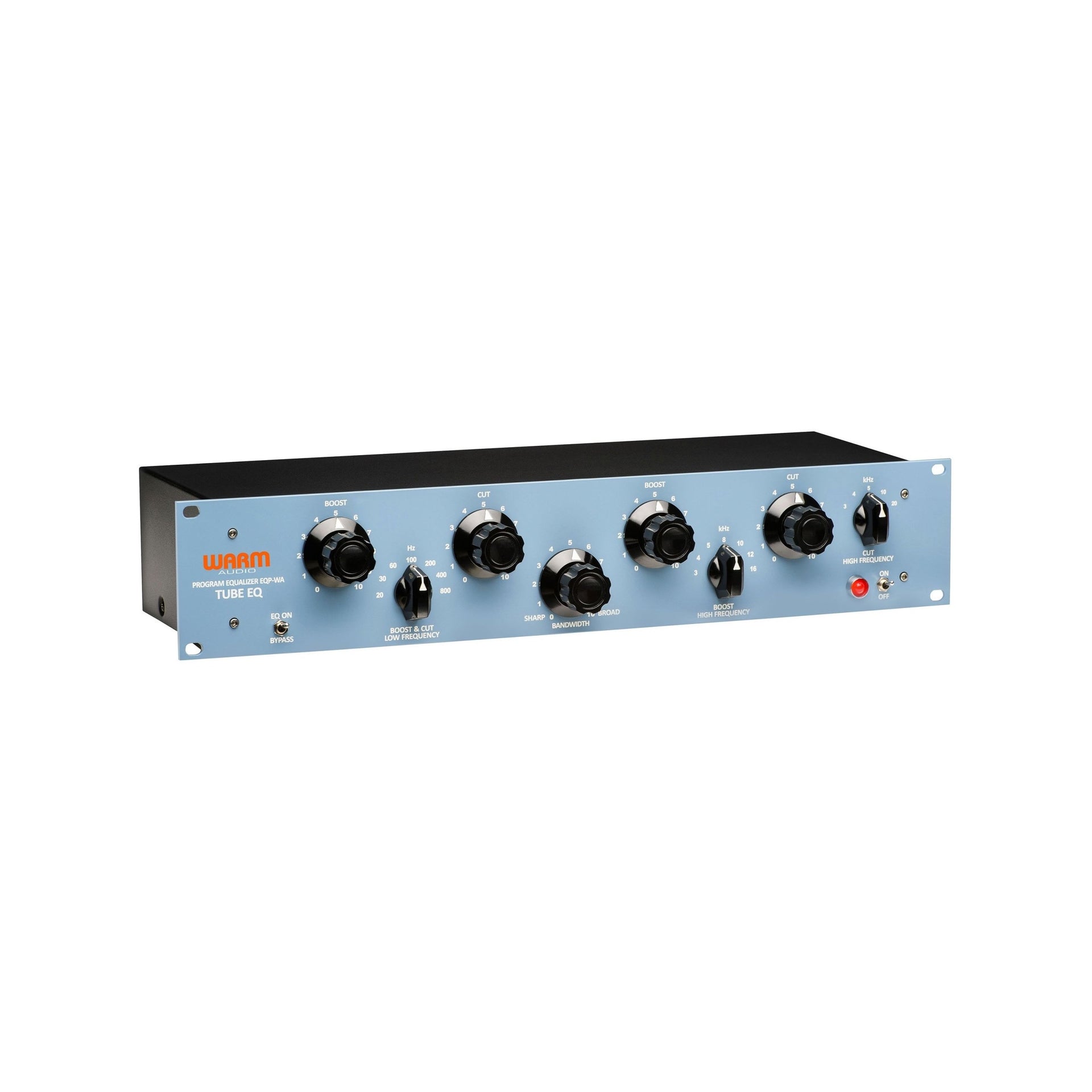

The EQP-WA is a reconstruction of one of the world's most famous Equalizers, the Pultec EQP-1A. Not only does it look or feel like a classic Pultec, it also sounds absolutely fantastic. This tube EQ brings out brilliance and shine to your mixes that you didn't think possible at a fraction of the price of the original.
Premium Components

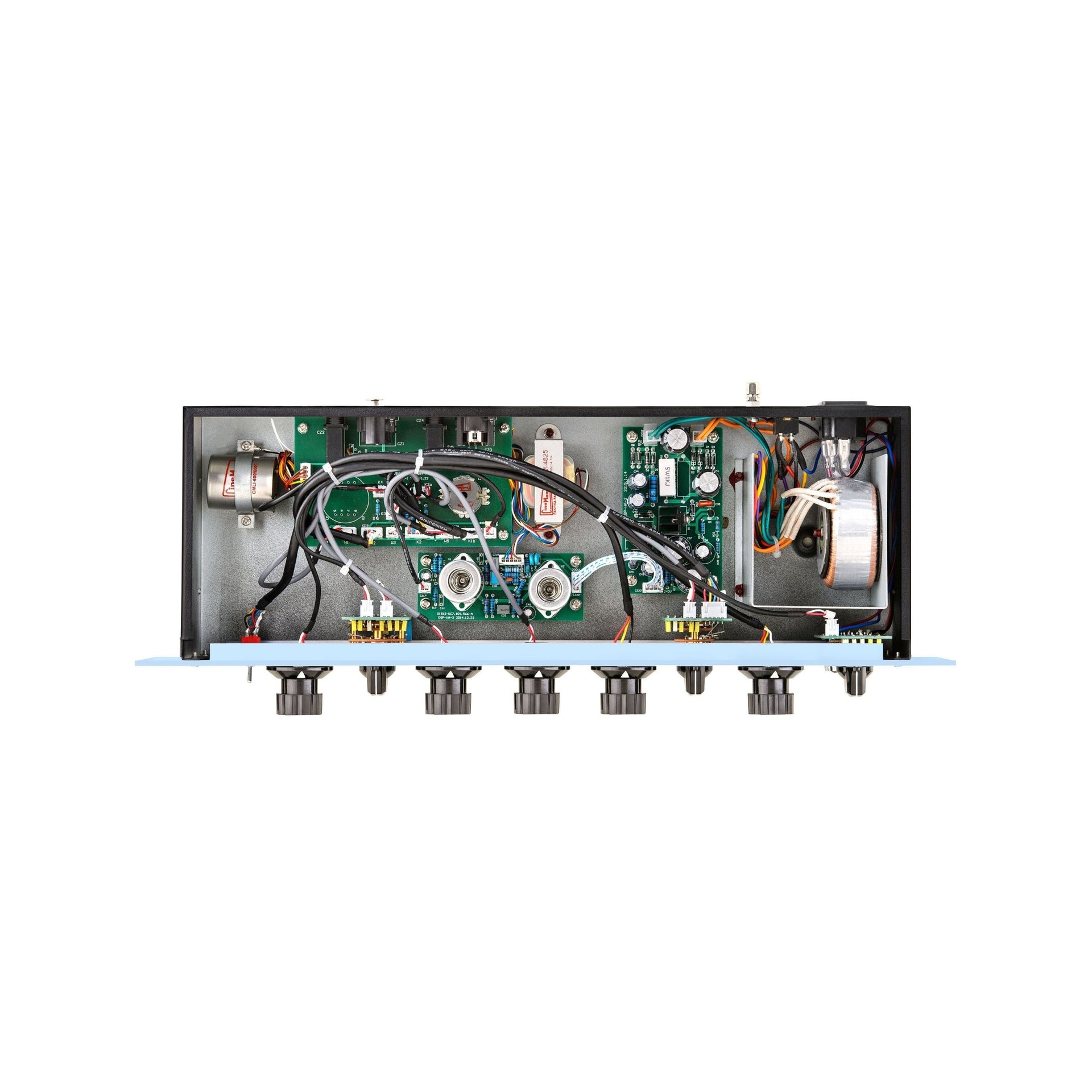

The EQP-WA is a high-voltage tube equalizer, utilizing CineMag USA Transformers and two premium vacuum tubes by Tung-Sol.
A Two Tube Operation
The EQP-WA operates on two tubes: one 12AX7 and one 12AU7. We proudly use Tung-Sol brand tubes in this product for their sonic richness and 'open' sound. These 2 tubes are socketed for easy swapping and replacement.
- Utilizes Premium Grade Input And Output Cinemag Usa Transformers.
- Tube Equalizer Based On The Classic "Pultec" Eqp-1a.
- Premium High Voltage 12ax7 And 12au7 Tubes.
- Cinemag Inductor Eq Section.
- Eq Section Is Bypassable - Signal Still Passes Through Tubes And Transformers For Warming Effect.

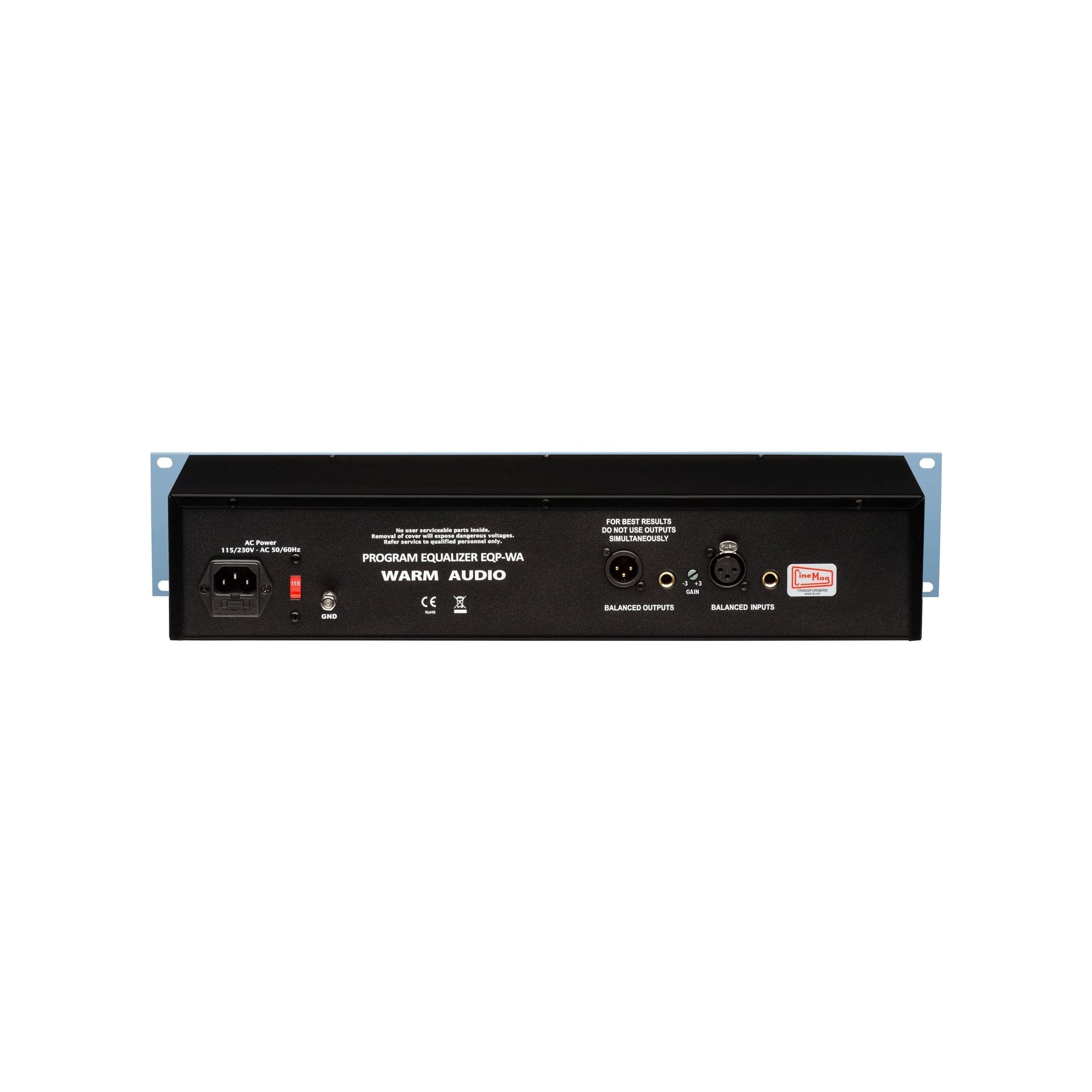

- Xlr And Trs Transformer Balanced Outputs.
- Flat Frequency Response From 20 Hz - 50 Khz.
- Xlr And Trs Transformer Balanced Inputs.
- No Insertion Loss - Loss Restored By Tube Amplifier.
- 5 Added Frequency Points For Greater Flexibility. Switchable 115/230 Volt Iec Power Inlet.
- Dimensions: 19 X 3.5 X 6 Inches - 2ru Rack Mountable.
- Low Frequency Boost - 20, 30, 60, 100, 200, 400, 800 Hz - 12 Db.
- Low Frequency Cut - 20, 30, 60, 100, 200, 400, 800 Hz - 18 Db.
- High Frequency Boost - 3, 4, 5, 8, 10, 12, 16 Khz - 18 Db.
- High Frequency Cut - 3, 4, 5, 10, 20 Khz - 14 Db.
- Boost And Cut Controls Can Be Used Simultaneously For Phase Effect.
