Engine Room LVL12

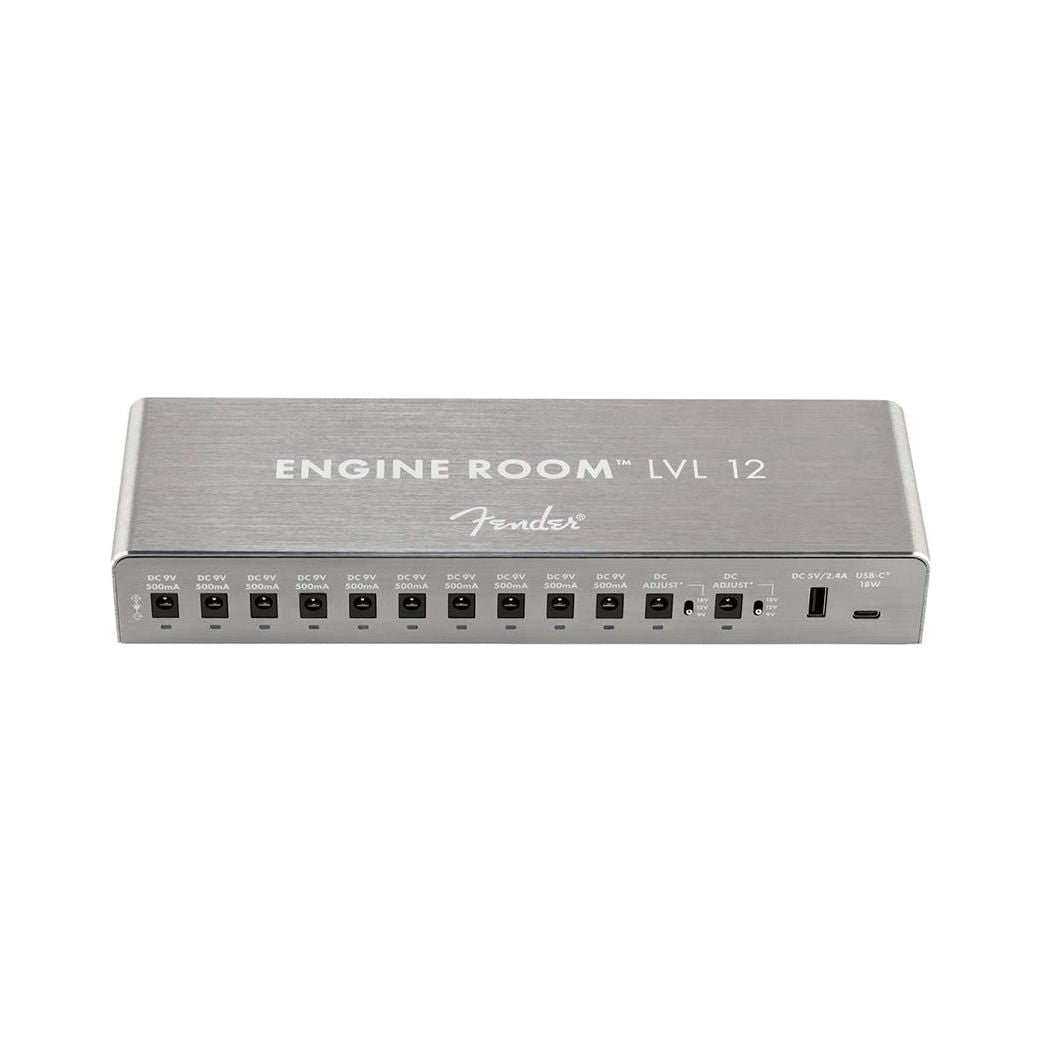

Designed to meet all your pedalboard needs, the Engine Room® LVL 12 is ready to deliver. With twelve ground-isolated power sockets, 10 sockets can supply 9Vdc at 500mA while another 2 sockets provide (9v/12v/18v) via 3-way switch.

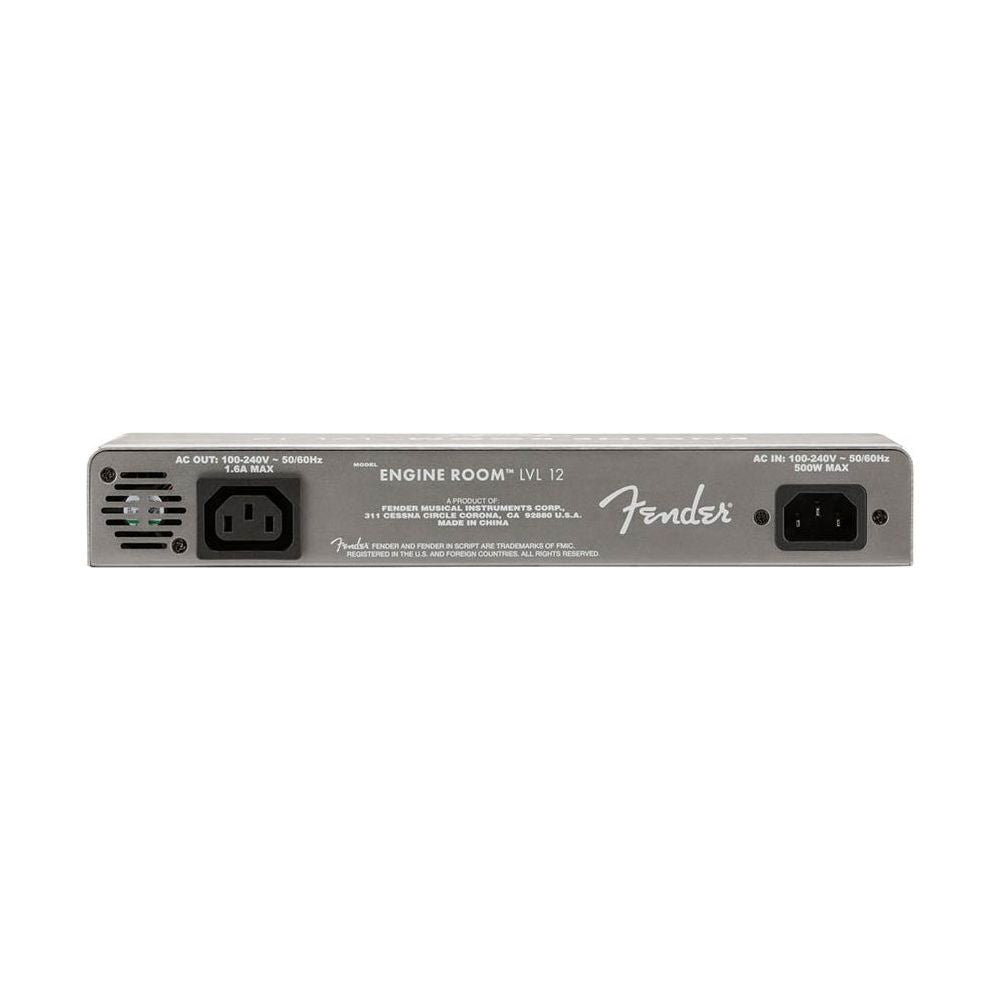

An additional IEC socket on the rear allows an additional Engine Room® LVL5, LVL8 or even LVL12 to be added for the largest rigs. The Engine Room® Power Supply is designed by Fender's team of experts in Southern California. The chassis is made from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is designed to accommodate most pedalboards.

Features:

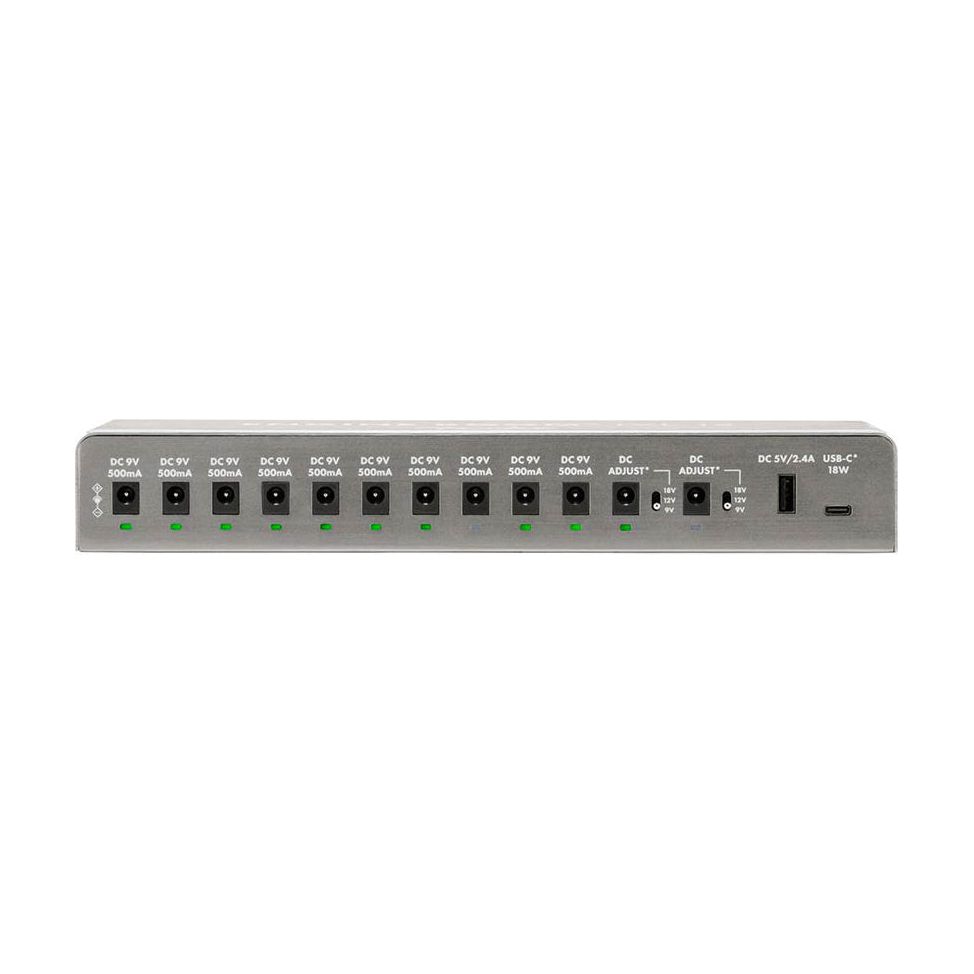

• 12 earth isolated outputs – 10 sockets for 9Vdc at 500mA and 2 sockets with AC voltage (9v/12v/18v)
• Global mains voltage (100-240Vac) 50/60Hz for use anywhere in the world
• Standard IEC mains plug
• Dimensions: Width: 11.1” (282mm), Height: 1.65” (42mm), Depth: 3.66” (93mm)
• 5V USB-A and USBC output to charge smart devices

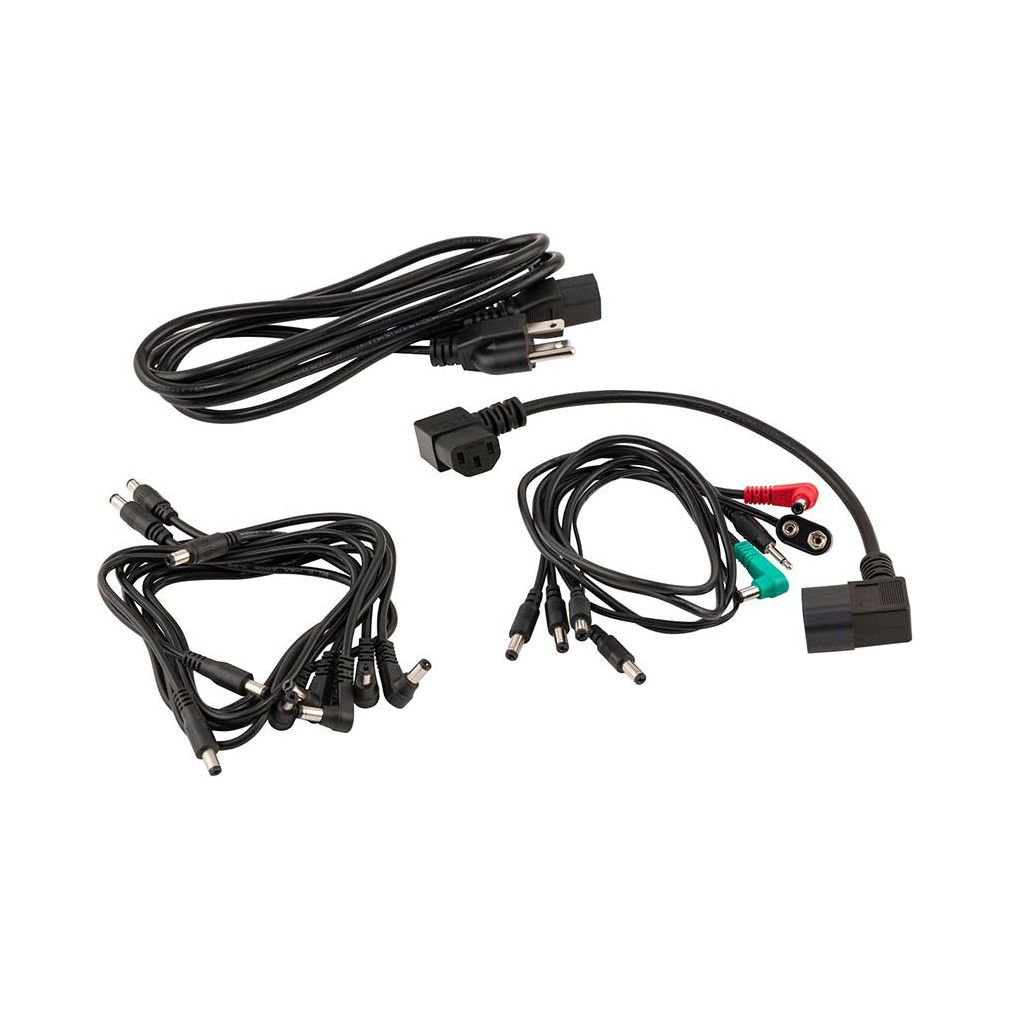

Cable kit included:

• 6 x 2.1mm socket connection 24” (60cm) length
• 4 x 2.1mm socket connection 18” (45cm) length
• 2 x 2.1mm socket connection 12” (30cm) length
• 1 x 2.5mm to 2.1mm socket
• 1 x 2.5mm to 2.1mm socket with reverse polarity
• 1 x 3.5mm TS to 2.1mm socket
• 1 x 9V battery clamp for 2.1mm socket
• 1x IEC daisychain cable (male to female)
