CN-3600S E
CN-3600S E
CN-3600S E
  • Ladda upp bild till gallerivisning, CN-3600S E
  • Ladda upp bild till gallerivisning, CN-3600S E
  • Ladda upp bild till gallerivisning, CN-3600S E

CN-3600S E

Ordinarie pris
10 495 kr
10 495 kr
Ordinarie pris

I webblager: Leverans 1–3 arbetsdagar

Påslags-sekvenser, CN-3600S E. Inkl. Nätfilter, Överspänningsskydd, Spikskydd.

CN-3600S E är en "smart sequencer" som inkorporerar allt som gjort Furmans påslagssekvensers till ett måste för installatörer och liveanvändare. Med RS232 kontakten kan man implementera och styra CN-3600S E i avancerade installationer. Med RS232 till Eathernet adaptern BB-RS232 kan man smidigt integrera CN-3600S E i olika IP Strukturer.

- Påslags-sekvenser

- Nätspik-skydd (SMP)

- Överspänningsskydd (EVS)

- Nätfilter (LIFT)

- On-Off switch med nyckel

- RS232 uttag- nätverksstyrning

- 16 Ampers kapacitet

- Nätutgångar: 9 utgångar om 3 isolerade banker

- Uttag för bakbelysning

- Kan fjärrstyras vis RS232. 230V/16A.

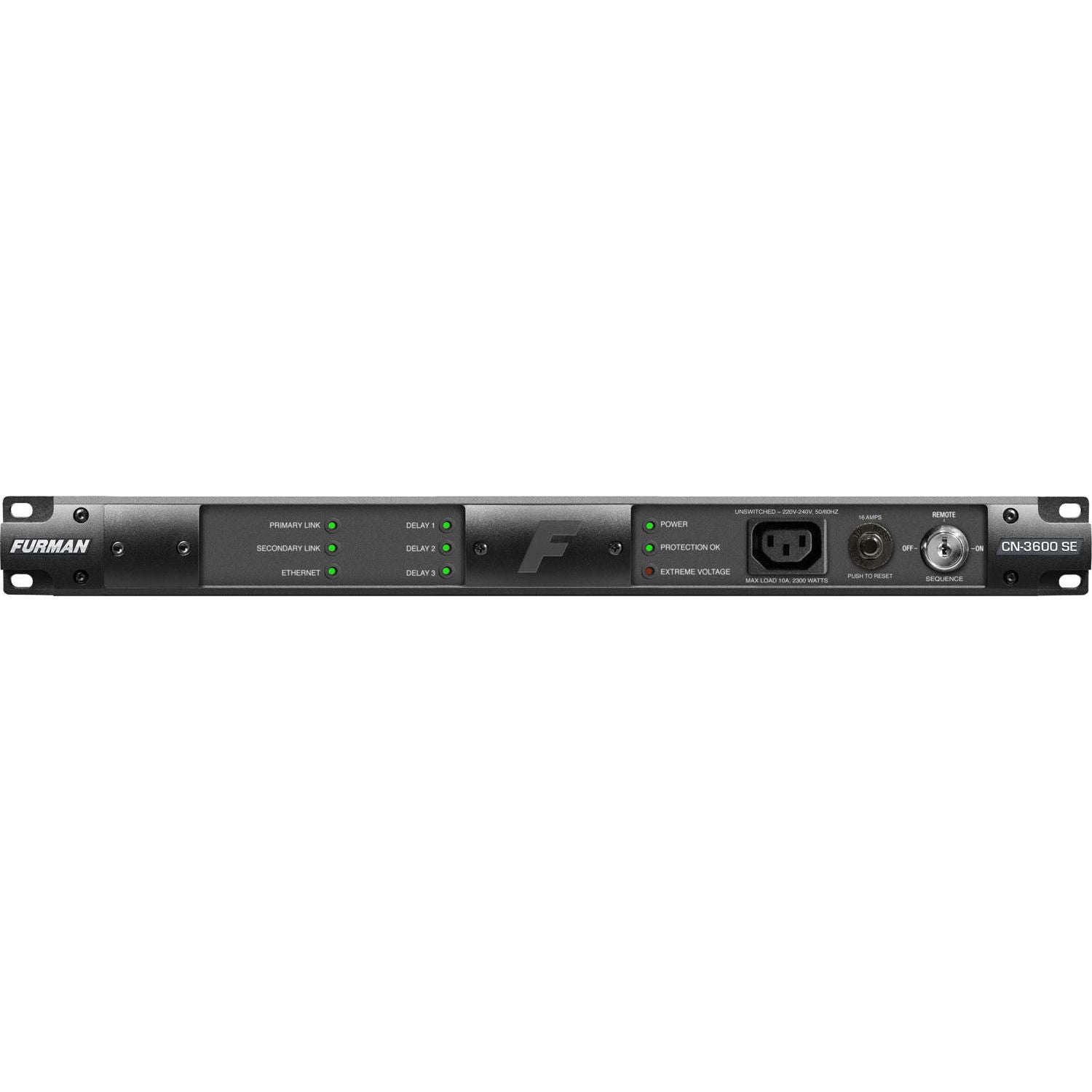

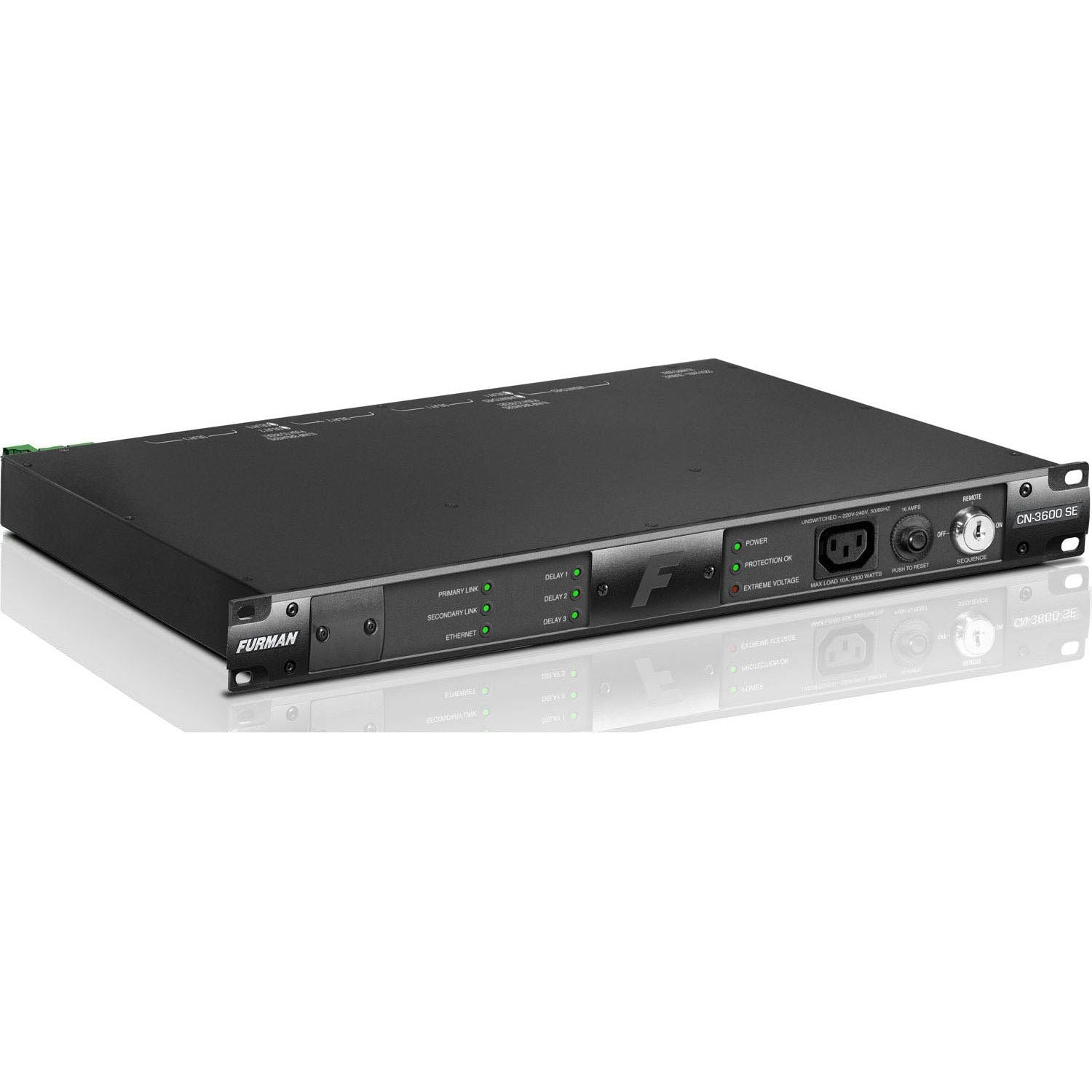

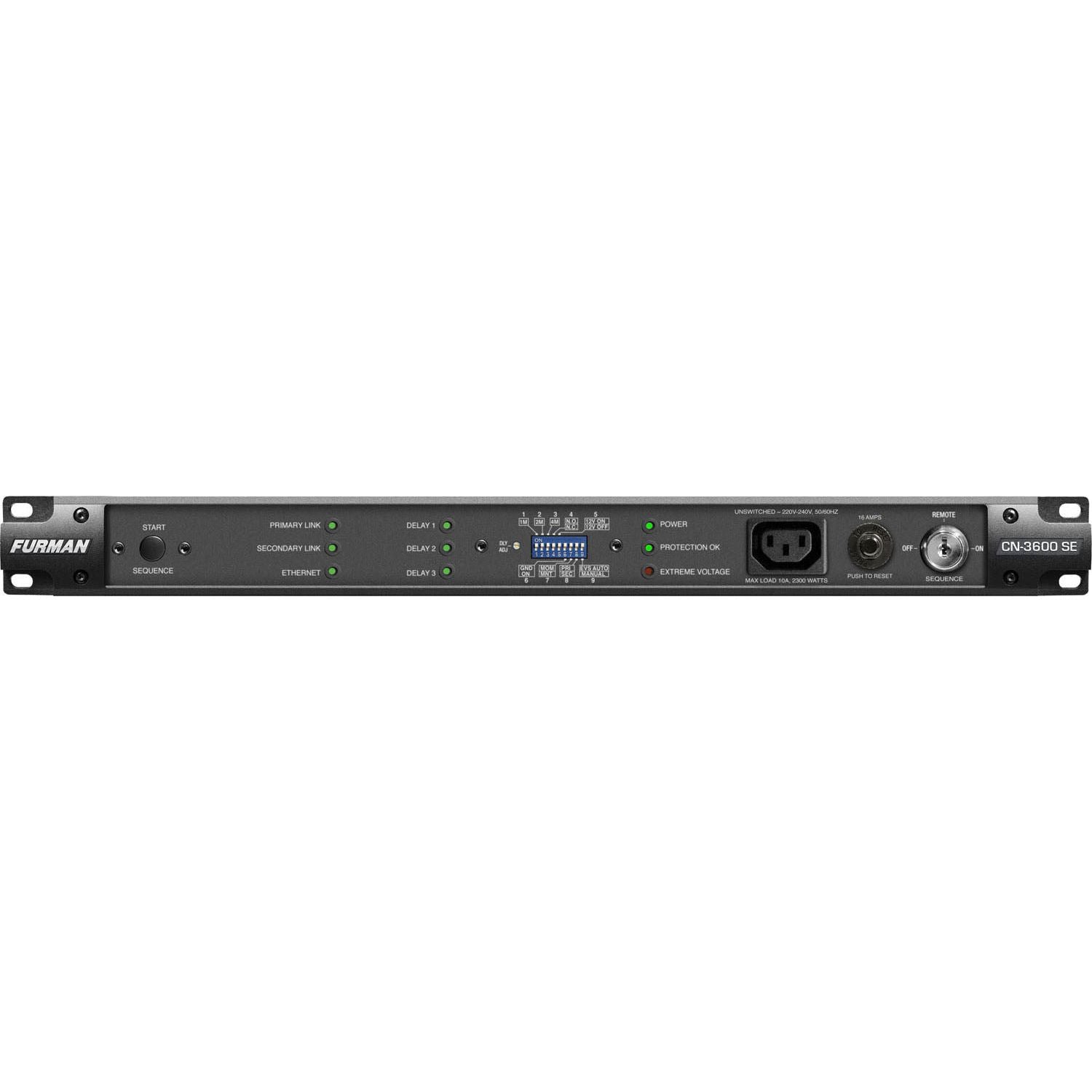

SmartSequencing with advanced AC protection and noise filtration.

Designed for Commercial A/V Installations in 220V-240V regions, the CN-3600 SE combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adaptor required, sold separately).

The new CN-3600 SE is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.

In addition, the CN-3600 SE offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP connection, or Panamax/Furman’s BlueBOLT®-hosted remote power and energy management platform.

Furman CN-3600S E Features at a Glance

- Surge Protection - Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.

- Noise Filtration - Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.

- Voltage Protection - Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.

- SmartSequencing™ - SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

- Diagnostic Lights - Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.

- 16 Amp Output Current - 16 amp maximum current capacity with incorporated 16 amp thermal circuit breaker.

- Remote Access (RS-232) - RS-232 compatibility & command set provide integration with control systems, open source and control programming.

- BlueBOLT Compatible® - BlueBOLT provides remote access to reboot components, power equipemnt on/off, and monitor power quality via the internet from anywhere in the world.

- Nine Total Outlets - The CN-3600 SE contains eight rear panel IEC C13 outlets and one front panel IEC C13 outlet.
