Darkglass presenterar stolt sitt nya samarbete med bassisten Amos Heller och ger os KAAMOS, en inovativ dist och oktavopedal som kan så mycket mer än en vanlig pedal. Detta kan bli hjärtat på ditt pedalbord.
Controls:
- Blend: Adjusts the drive blend (Press to select the loop position)
- Tone: Adjusts the drive tone (Press to select between cabsim and DI for the XLR out)
- Drive: Adjusts the amount of distortion in the drive circuit
- Clean level: Adjusts the clean signal amount in the octaver circuit (Press to select the type of octaver)
- Octave level: Adjusts the low octave signal amount in the octaver circuit (Press to choose between parallel or series effect positioning)
- Octave filter: Adjusts the lowpass filter frequency of the low octave
I/Os:

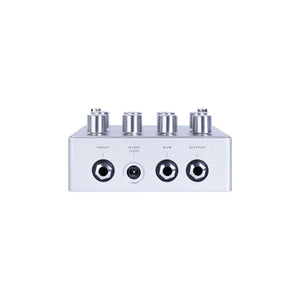

- Input: Connect your instrument or output from your pedal board to the ¼" mono jack.
- 9V DC: Only use a regulated 9V DC adapter with a center-negative plug
- Sub: This ¼" Sub output jack provides only the low octave signal when the octaver is activated
- Output: Connect from the ¼" Output jack to the input of your amplifier or another effects pedal.

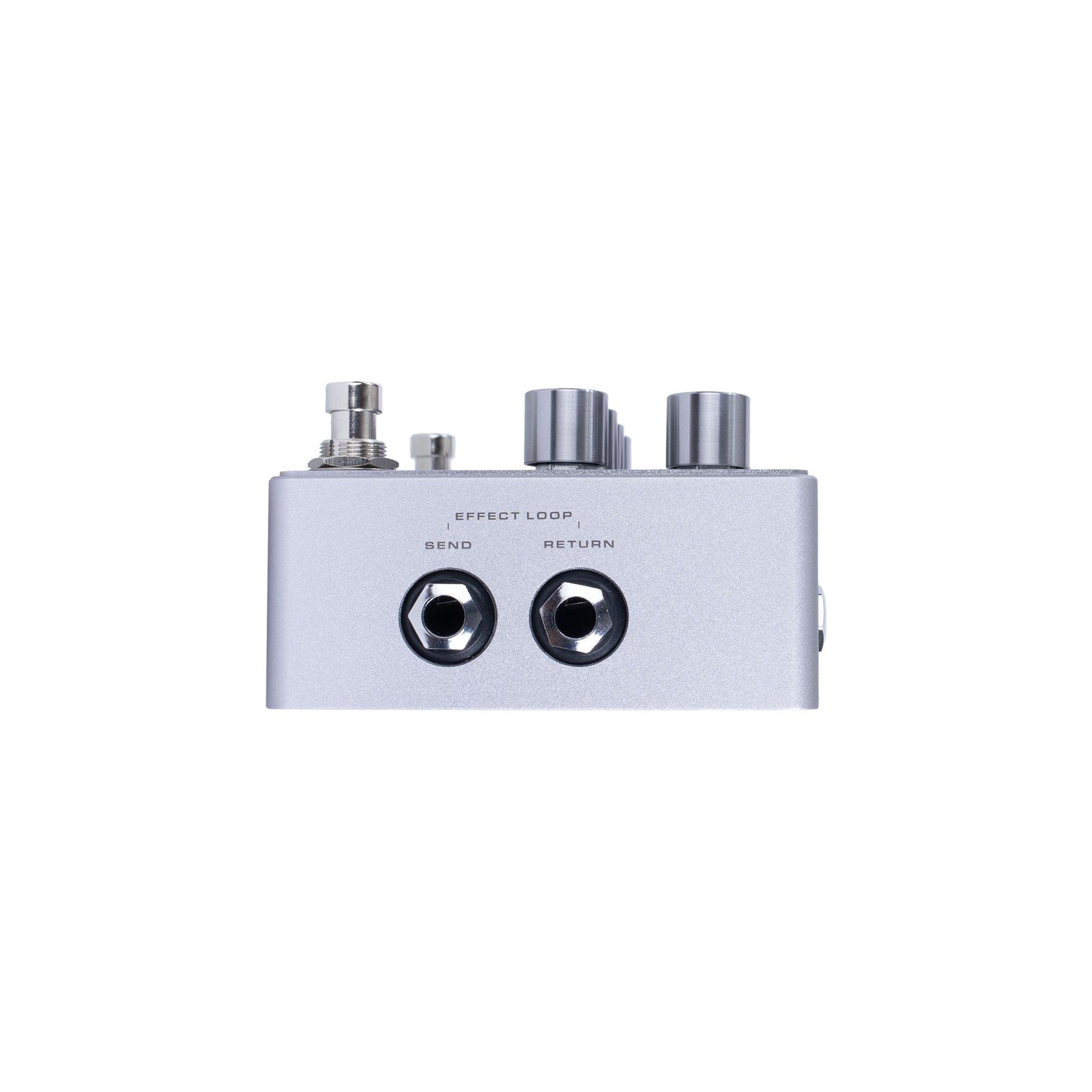

- Send: Use this ¼" to send the effects loop signal to your external effects
- Return: Connect the output of the last pedal in you effects loop into this ¼" jack

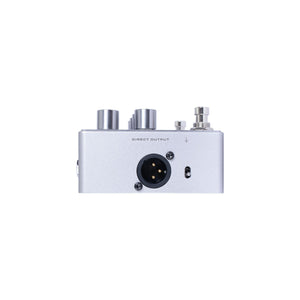

- Direct output: Balanced XLR output for connecting the pedal to a microphone preamp, PA system etc.
- Ground lift: Disconnects the signal ground on the Direct Output to break any ground loops. Set this switch to either position that has less noise. The switch does not affect the ¼" output.
